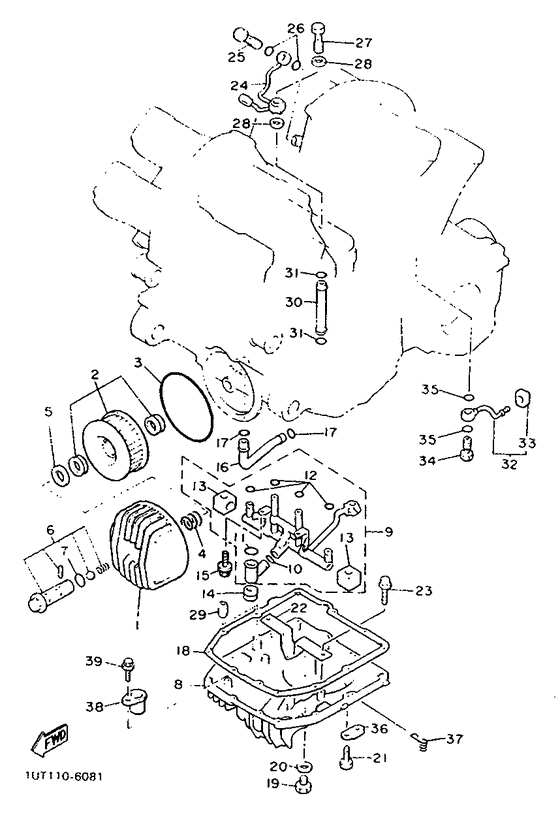

Filtro de aceite Diagram Yamaha VMX12 V-MAX
- Year
- 1993
- Colour
- Dark Violet Cocktail 1 (DVC1; 0295)
- Model code
- 3LR9
- Sales region
- Spain (999)
- Engine Capacity
- 1200
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1FK-13447-01-00
Cover, Oil Element
|
1FK-13447-01-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
1J7-13441-10-00 Element, Oil Cleaner |
1J7-13441-10-00 |
from US $11.70 |
||
|
03
|
03
93211-19413-00 O-Ring |
93211-19413-00 |
from US $5.81 |
||
|
04
|
04
90501-18433-00 Spring, Compression |
90501-18433-00 |
from US $4.25 |
||
|
05
|
05
902-01216-08-00 Washer, Plate |
902-01216-08-00 |
from US $2.13 |
||
|
06
|
06
2H7-13340-00-00 By-Pass Valve Assembly |
2H7-13340-00-00 |
from US $33.21 |
||
|
07
|
07
93210-16314-00 O-Ring |
93210-16314-00 |
from US $1.66 |
||
|
08
|
08
26H-13417-01-00 Cover, Strainer |
26H-13417-01-00 |
from US $223.82 |
||
|
09
|
09
26H-Y1319-01-00 Delivery Pipe Ass'y |
26H-Y1319-01-00 |
from US $129.73 |
||
| replacement | |||||
|
09
|
09
26H-Y1319-10-00 Delivery Pipe Ass'y |
26H-Y1319-10-00 |
from US $129.73 |
||
|
10
|
10
93210-13361-00 O-Ring |
93210-13361-00 |
from US $1.28 |
||
|
11
|
11
93210-14637-00 O-Ring |
93210-14637-00 |
from US $2 |
||
|
12
|
12
932-10066-67-00 O-Ring |
932-10066-67-00 |
from US $1.84 |
||
|
13
|
13
26H-15365-00-00 Grommet |
26H-15365-00-00 |
from US $6.09 |
||
|
14
|
14
26H-15366-00-00 Grommet |
26H-15366-00-00 |
from US $5.10 |
||
| replacement | |||||
|
14
|
14
26H-15366-01-00 Grommet |
26H-15366-01-00 |
from US $2.32 |
||
|
15
|
15
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
15
|
15
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
15
|
15
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
16
|
16
26H-13161-00-00 Pipe, Delivery 1 |
26H-13161-00-00 |
from US $13.32 |
||
|
17
|
17
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
18
|
18
3JP-13414-00-00 Gasket, Strainer Cover |
3JP-13414-00-00 |
from US $11.70 |
||
| replacement | |||||
|
18
|
18
3JP-13414-01-00 Gasket, Strainer Cover |
3JP-13414-01-00 |
from US $11.76 |
||
|
19
|
19
3VD-13455-00-00 Plug, Straight Screw |
3VD-13455-00-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.42 |
||
|
20
|
20
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
21
|
21
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
22
|
22
26H-13337-01-00 Plate, Baffle Lower |
26H-13337-01-00 |
from US $10.62 |
||
|
23
|
23
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
23
|
23
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
23
|
23
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
24
|
24
26H-13181-02-00 Pipe, Delivery 3 |
26H-13181-02-00 |
from US $78.52 |
||
| replacement | |||||
|
24
|
24
26H-13181-03-00 Pipe, Delivery 3 |
26H-13181-03-00 |
from US $96.99 |
||
|
25
|
25
90401-08038-00 Bolt, Union |
90401-08038-00 |
from US $3.54 |
||
| replacement | |||||
|
25
|
25
90401-08006-00 Bolt, Union |
90401-08006-00 |
from US $3.54 |
||
|
26
|
26
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
27
|
27
90401-10108-00 Bolt, Union |
90401-10108-00 |
from US $12.89 |
||
|
28
|
28
90201-11723-00 Washer, Plate |
90201-11723-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
90201-10128-00 Washer Plate 341839090000 |
90201-10128-00 |
from US $1.56 |
||
|
29
|
29
995-10080-16-00
P1N, Dowel
|
995-10080-16-00 |
— | ||
| replacement | |||||
|
29
|
29
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
30
|
30
26H-13171-00-00 Pipe, Delivery 2 |
26H-13171-00-00 |
from US $8.64 |
||
|
31
|
31
932-10066-67-00 O-Ring |
932-10066-67-00 |
from US $1.84 |
||
|
32
|
32
26H-13416-00-00 Pipe, Oil 1 |
26H-13416-00-00 |
from US $31.14 |
||
| replacement | |||||
|
32
|
32
26H-13416-01-00 Pipe, Oil 1 |
26H-13416-01-00 |
from US $30.46 |
||
|
33
|
33
26H-13476-00-00 Gasket |
26H-13476-00-00 |
from US $2.55 |
||
|
34
|
34
90401-08093-00 Bolt, Union |
90401-08093-00 |
from US $2.13 |
||
|
35
|
35
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
36
|
36
90465-08193-00 Clamp |
90465-08193-00 |
from US $2.41 |
||
| replacement | |||||
|
36
|
36
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
37
|
37
90465-23286-00 Clamp |
90465-23286-00 |
US $7.81 |
||
|
38
|
38
1FK-13151-00-00 Stay |
1FK-13151-00-00 |
from US $38.86 |
||
|
39
|
39
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
39
|
39
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
39
|
39
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
