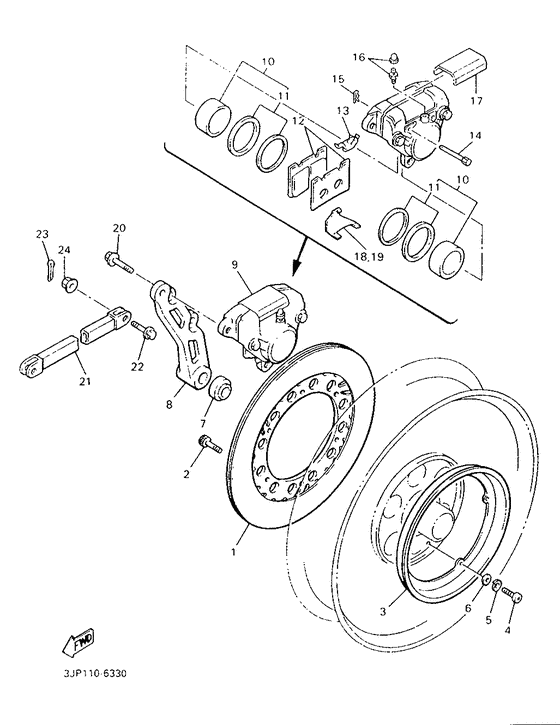

Rear brake caliper Diagram Yamaha VMX12 V-MAX
- Year
- 1996
- Colour
- Black 2 (BL2; 004B)
- Model code
- 3LRA
- Sales region
- France (999)
- Engine Capacity
- 1200
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3JP-2582U-00-00
Disk, Brake (Right)
|
3JP-2582U-00-00 |
— | ||
|
02
|
02
90109-083G4-00 Bolt |
90109-083G4-00 |
from US $1.50 |
||
| replacement | |||||
|
02
|
02
901-11080-57-00 Bolt |
901-11080-57-00 |
from US $1.25 |
||
|
03
|
03
1FK-25327-00-00
Cover, Plate
|
1FK-25327-00-00 |
— | ||
|
04
|
04
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.22 |
||
|
05
|
05
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.50 |
||
|
06
|
06
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $0.90 |
||
|
07
|
07
90387-200J2-00 Collar (26H) |
90387-200J2-00 |
from US $8.98 |
||
|
08
|
08
1FK-25819-00-00 Bracket, Caliper |
1FK-25819-00-00 |
from US $131.38 |
||
|
09
|
09
4BH-2580W-00-00 Caliper Assy, Rear 2 |
4BH-2580W-00-00 |
from US $362.81 |
||
| replacement | |||||
|
09
|
09
4BH-2580W-01-00 Caliper Assy, Rear 2 |
4BH-2580W-01-00 |
from US $357.82 |
||
|
10
|
10
31A-W0057-00-00 Piston Assy, Caliper |
31A-W0057-00-00 |
from US $79.76 |
||
|
11
|
11
31A-W0047-00-00 Caliper Seal Kit |
31A-W0047-00-00 |
from US $39.30 |
||
|
12
|
12
1FK-W0046-01-00 Brake Pad Kit 2 |
1FK-W0046-01-00 |
from US $70.12 |
||
|
13
|
13
26H-25919-00-00 Support, Pad |
26H-25919-00-00 |
from US $16.46 |
||
|
14
|
14
3HE-25924-00-00 Pin, Pad |
3HE-25924-00-00 |
from US $7.13 |
||
|
15
|
15
3GM-25925-00-00 Clip |
3GM-25925-00-00 |
from US $4.32 |
||
|
16
|
16
1J3-W0048-00-00 Bleed Screw Kit |
1J3-W0048-00-00 |
from US $14.21 |
||
|
17
|
17
41Y-25836-00-00 Cover, Dust |
41Y-25836-00-00 |
from US $12.72 |
||
|
18
|
18
1FK-25827-00-00 Shim, Caliper |
1FK-25827-00-00 |
from US $10.77 |
||
| replacement | |||||
|
18
|
18
1FK-25827-01-00 Shim, Caliper |
1FK-25827-01-00 |
from US $9.25 |
||
|
19
|
19
1FK-25828-00-00 Shim, Caliper |
1FK-25828-00-00 |
from US $9.29 |
||
| replacement | |||||
|
19
|
19
1FK-25828-01-00 Shim, Caliper |
1FK-25828-01-00 |
from US $9.25 |
||
|
20
|
20
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.09 |
||
|
21
|
21
36Y-25371-00-00 Bar, Tension |
36Y-25371-00-00 |
from US $31.88 |
||
|
22
|
22
90105-08777-00 Bolt, Flange |
90105-08777-00 |
from US $2.47 |
||
|
23
|
23
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.50 |
||
|
24
|
24
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $0.90 |
||
