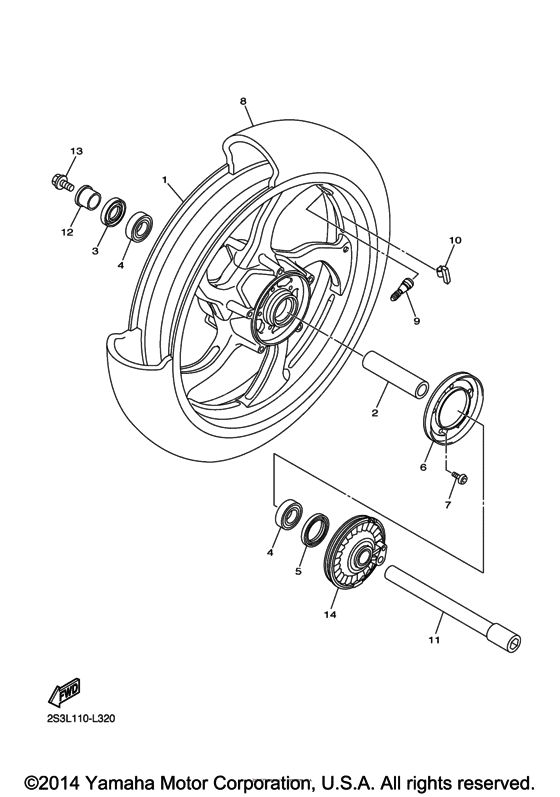

Front wheel Diagram Yamaha VMX17 V-MAX
- Year
- 2015
- Colour
- Very Dark Red Metallic 2
- Model code
- 2CED
- Sales region
- United States (California)
- Базовая модель
- VMX17FCR
- Engine Capacity
- 1700
- Model
- VMX17
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2S3-25168-00-98 Cast Wheel, FrontLGB |
2S3-25168-00-98 |
from US $924 |
||
|
2
|
2
2S3-25117-00-00 Spacer, Bearing |
2S3-25117-00-00 |
from US $31.03 |
||
|
3
|
3
93106-28043-00 Oil Seal |
93106-28043-00 |
from US $4.02 |
||
|
4
|
4
93306-00420-00 Bearing |
93306-00420-00 |
from US $20.12 |
||
|
5
|
5
93106-40027-00 Oil Seal |
93106-40027-00 |
from US $7.37 |
||
|
6
|
6
2S3-2517G-00-00 Rotor, Sensor |
2S3-2517G-00-00 |
from US $27.77 |
||
|
7
|
7
90149-05009-00 Screw |
90149-05009-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
901-49050-10-00 Screw |
901-49050-10-00 |
from US $1.25 |
||
|
8
|
8
94112-18033-00 Tire(120/70 R18 M/c 59V)Tire(120/70 r18 m/c 59v) BRIDGESTONE |
94112-18033-00 |
US $247.12 |
||
|
9
|
9
939-00000-30-00 Valve, Rim (Tr412)TAIHEIYO |
939-00000-30-00 |
from US $7.65 |
||
|
10
|
10
5MT-25398-20-00 Balancer, Wheel (30G)UN |
5MT-25398-20-00 |
from US $7.65 |
||
|
10
|
10
5MT-25398-10-00 Balancer, Wheel (20G)UN |
5MT-25398-10-00 |
from US $7.65 |
||
|
10
|
10
5MT-25398-00-00 Balancer, Wheel (10G)UN |
5MT-25398-00-00 |
from US $7.65 |
||
|
11
|
11
2S3-25181-00-00 Axle, Wheel |
2S3-25181-00-00 |
from US $80.96 |
||
|
12
|
12
903-87220-30-00 Collar |
903-87220-30-00 |
from US $48.63 |
||
|
13
|
13
90105-14002-00 Bolt, Flange |
90105-14002-00 |
from US $6.94 |
||
|
14
|
14
2S3-2517A-00-00 Housing, Sensor Front |
2S3-2517A-00-00 |
from US $187.90 |
||
