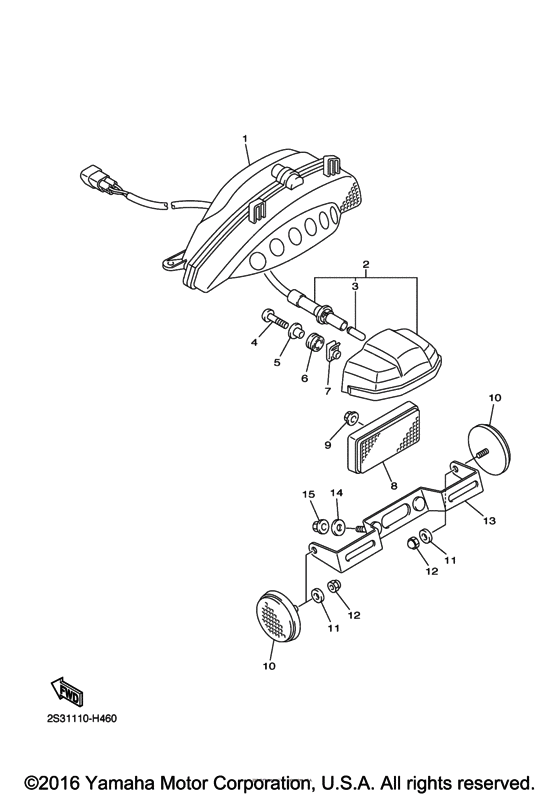

Taillight Diagram Yamaha VMX17 V-MAX
- Year
- 2017
- Colour
- Vivid Red Cocktail 1
- Model code
- 2CES
- Sales region
- United States (California)
- Базовая модель
- VMX17HCR
- Engine Capacity
- 1700
- Model
- VMX17
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2S3-84710-00-00 Taillight Unit Assy |
2S3-84710-00-00 |
from US $447.39 |
||
|
2
|
2
2S3-84745-00-00 License Light Unit Assy |
2S3-84745-00-00 |
from US $54.85 |
||
|
3
|
3
5DM-84347-00-00 Bulb (12V-5W) |
5DM-84347-00-00 |
from US $2.83 |
||
| replacements | |||||
|
3
|
3
4SV-84347-00-00 Bulb (12V-5W) |
4SV-84347-00-00 |
from US $2.83 |
||
|
3
|
3
1WD-H4744-00-00 Bulb (12V-5W) |
1WD-H4744-00-00 |
from US $5.40 |
||
|
3
|
3
1RC-84347-00-00 Bulb (12V-5W) |
1RC-84347-00-00 |
from US $4.96 |
||
|
3
|
3
1JD-H4347-00-00 Bulb (W3W-12V) |
1JD-H4347-00-00 |
US $4.68 |
||
|
3
|
3
3WW-H4347-00-00
Bulb
|
3WW-H4347-00-00 |
— | ||
|
4
|
4
90111-05026-00 Bolt, Hex. Socket Button |
90111-05026-00 |
from US $1.70 |
||
|
5
|
5
90387-05044-00 Collar |
90387-05044-00 |
from US $4.04 |
||
|
6
|
6
90480-14017-00 Grommet |
90480-14017-00 |
from US $1.84 |
||
|
7
|
7
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
7
|
7
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
8
|
8
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.78 |
||
|
9
|
9
95604-05200-00 Nut, U Flange |
95604-05200-00 |
from US $2.55 |
||
|
10
|
10
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $9.78 |
||
|
11
|
11
90201-05040-00 Washer, Plate |
90201-05040-00 |
from US $1.70 |
||
|
12
|
12
90176-05001-00 Nut, Crown |
90176-05001-00 |
from US $2.13 |
||
|
13
|
13
2S3-84703-00-00 Bracket |
2S3-84703-00-00 |
US $43.52 |
||
|
14
|
14
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
15
|
15
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
