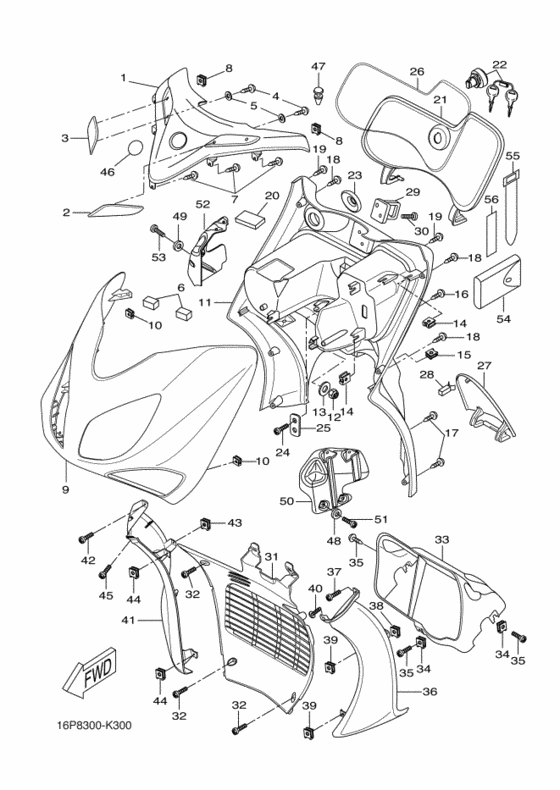

Leg shield Diagram Yamaha VP125 X-City
- Year
- 2011
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 16P8
- Sales region
- Europe (050)
- Engine Capacity
- 125
- Color Variant
- B
- Model
- VP125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5B2-F836K-10-00
Panel, Inner 1
|
5B2-F836K-10-00 |
— | ||
|
2
|
2
5B2-F842M-00-00
Cover 1
|
5B2-F842M-00-00 |
— | ||
|
3
|
3
5B2-F842N-00-00
Cover 2
|
5B2-F842N-00-00 |
— | ||
|
4
|
4
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
5
|
5
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
6
|
6
2B7-F139X-00-00
Damper
|
2B7-F139X-00-00 |
— | ||
|
7
|
7
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
8
|
8
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.06 |
||
|
9
|
9
5B2-F835G-00-P5
Body, Front Upper 1
FOR BWC1 |
5B2-F835G-00-P5 |
— | ||
|
10
|
10
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.06 |
||
|
11
|
11
5B2-F8311-10-00
Leg Shield 1
|
5B2-F8311-10-00 |
— | ||
|
12
|
12
90179-06X02-00 Nut |
90179-06X02-00 |
from US $2.92 |
||
|
13
|
13
90201-06X08-00
Washer, Plate
|
90201-06X08-00 |
— | ||
|
14
|
14
90183-06X00-00 Nut, Spring |
90183-06X00-00 |
from US $6.80 |
||
|
15
|
15
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.06 |
||
|
16
|
16
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
17
|
17
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
18
|
18
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
19
|
19
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
20
|
20
5BR-F174X-00-00 Damper |
5BR-F174X-00-00 |
US $20.69 |
||
|
21
|
21
5B2-F8313-00-00
Lid
|
5B2-F8313-00-00 |
— | ||
|
22
|
22
16P-WF179-00-00
Lock Assy
|
16P-WF179-00-00 |
— | ||
|
23
|
23
16P-F839K-00-00
Lid 1
|
16P-F839K-00-00 |
— | ||
|
24
|
24
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
25
|
25
5B2-F8366-00-00
Bracket
|
5B2-F8366-00-00 |
— | ||
|
26
|
26
5B2-F8372-00-00
Damper
|
5B2-F8372-00-00 |
— | ||
|
27
|
27
5B2-F831X-00-00
Lid 2
|
5B2-F831X-00-00 |
— | ||
|
28
|
28
4HC-24618-00-00 Plate, Lock 3 |
4HC-24618-00-00 |
US $7.51 |
||
|
29
|
29
5MF-F8379-00-00
Hook
|
5MF-F8379-00-00 |
— | ||
|
30
|
30
90111-06X00-00
Bolt,hex. Socket Button
|
90111-06X00-00 |
— | ||
|
31
|
31
5B2-F837N-00-00
Grill, Air Intake 1
|
5B2-F837N-00-00 |
— | ||
|
32
|
32
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
33
|
33
5B2-F835L-00-00
Cover, Cooler
|
5B2-F835L-00-00 |
— | ||
|
34
|
34
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.06 |
||
|
35
|
35
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
36
|
36
5B2-F835J-00-P5
Body, Front Lower 1
FOR BWC1 |
5B2-F835J-00-P5 |
— | ||
|
37
|
37
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
38
|
38
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.06 |
||
|
39
|
39
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.06 |
||
|
40
|
40
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
41
|
41
5B2-F835K-00-P5
Body, Front Under 2
FOR BWC1 |
5B2-F835K-00-P5 |
— | ||
|
42
|
42
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
43
|
43
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.06 |
||
|
44
|
44
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.06 |
||
|
45
|
45
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
46
|
46
5B2-F413B-00-00 Emblem |
5B2-F413B-00-00 |
US $29.47 |
||
|
47
|
47
5B2-F8349-00-00
Cap
|
5B2-F8349-00-00 |
— | ||
|
48
|
48
90201-05X03-00 Washer, PlateWasher, plate |
90201-05X03-00 |
US $5.81 |
||
|
49
|
49
90201-05X03-00 Washer, PlateWasher, plate |
90201-05X03-00 |
US $5.81 |
||
|
50
|
50
5B2-F834V-00-00
Protector 1
|
5B2-F834V-00-00 |
— | ||
|
51
|
51
90167-04X09-00
Screw, Tapping
|
90167-04X09-00 |
— | ||
|
52
|
52
5B2-F834W-00-00
Protector 2
|
5B2-F834W-00-00 |
— | ||
|
53
|
53
90167-04X09-00
Screw, Tapping
|
90167-04X09-00 |
— | ||
|
54
|
54
5B2-F8100-10-00
Tool Kit
|
5B2-F8100-10-00 |
— | ||
|
55
|
55
5SE-F1376-00-00
Band, Tool
|
5SE-F1376-00-00 |
— | ||
|
56
|
56
5SE-F117H-10-00
Stay, Tool Holder
|
5SE-F117H-10-00 |
— |
