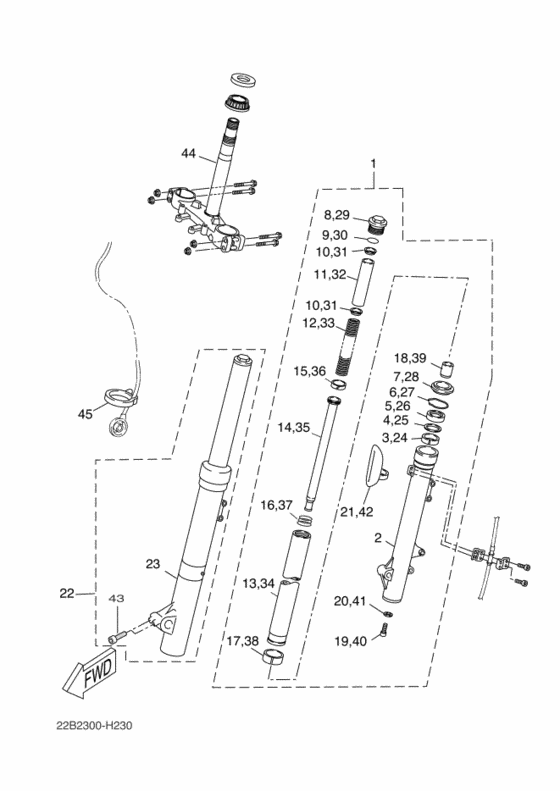

Front fork Diagram Yamaha WR125 WR125X
- Year
- 2009
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 22B2
- Sales region
- Europe (060)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- WR125X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22B-F3102-10-00
Front Fork Assy (L.h)
|
22B-F3102-10-00 |
— | ||
|
2
|
2
22B-F3126-10-00
Tube, Outer (L.h)
|
22B-F3126-10-00 |
— | ||
|
3
|
3
2C8-F3125-00-00
Metal, Slide 1
|
2C8-F3125-00-00 |
— | ||
|
4
|
4
3NC-F3146-00-00
Washer, Oil Seal
|
3NC-F3146-00-00 |
— | ||
|
5
|
5
3NC-F3145-00-00
Oil Seal
|
3NC-F3145-00-00 |
— | ||
| replacement | |||||
|
5
|
5
4EB-23145-01-00 Oil Seal |
4EB-23145-01-00 |
from US $9.10 |
||
|
6
|
6
2C8-F3156-00-00
Clip, Oil Seal
|
2C8-F3156-00-00 |
— | ||
|
7
|
7
22B-F3144-10-00
Seal, Dust
|
22B-F3144-10-00 |
— | ||
| replacement | |||||
|
7
|
7
4EB-23144-00-00 Seal, Dust |
4EB-23144-00-00 |
from US $11.12 |
||
|
8
|
8
2C8-F3111-00-00
Bolt, Cap
|
2C8-F3111-00-00 |
— | ||
|
9
|
9
2C8-F3188-00-00
O-Ring
|
2C8-F3188-00-00 |
— | ||
|
10
|
10
2C8-F3149-00-00
Washer, Spring Upper
|
2C8-F3149-00-00 |
— | ||
|
11
|
11
22B-F3118-10-00
Spacer
|
22B-F3118-10-00 |
— | ||
|
12
|
12
22B-F3141-00-00
Spring, Front Fork
|
22B-F3141-00-00 |
— | ||
|
13
|
13
22B-F3110-10-00
Inner Tube Comp.1
|
22B-F3110-10-00 |
— | ||
|
14
|
14
22B-F3170-10-00
Cylinder Comp., Front Fork
|
22B-F3170-10-00 |
— | ||
|
15
|
15
2C8-F3157-00-00
Ring, Piston
|
2C8-F3157-00-00 |
— | ||
|
16
|
16
2C8-F3151-00-00
Spring, Rebound
|
2C8-F3151-00-00 |
— | ||
|
17
|
17
2C8-F3171-00-00
Piston, Front Fork
|
2C8-F3171-00-00 |
— | ||
|
18
|
18
22B-F3173-10-00
Spindle, Taper
|
22B-F3173-10-00 |
— | ||
|
19
|
19
2C8-F3181-00-00
Bolt, Hexagon Socket Head
|
2C8-F3181-00-00 |
— | ||
|
20
|
20
5VK-F3158-00-00
Gasket
|
5VK-F3158-00-00 |
— | ||
|
21
|
21
2C8-F331G-00-00
Cover
|
2C8-F331G-00-00 |
— | ||
|
22
|
22
22B-F3103-10-00
Front Fork Assy (R.h)
|
22B-F3103-10-00 |
— | ||
|
23
|
23
22B-F3136-10-00
Tube, Outer
|
22B-F3136-10-00 |
— | ||
|
24
|
24
2C8-F3125-00-00
Metal, Slide 1
|
2C8-F3125-00-00 |
— | ||
|
25
|
25
3NC-F3146-00-00
Washer, Oil Seal
|
3NC-F3146-00-00 |
— | ||
|
26
|
26
3NC-F3145-00-00
Oil Seal
|
3NC-F3145-00-00 |
— | ||
| replacement | |||||
|
26
|
26
4EB-23145-01-00 Oil Seal |
4EB-23145-01-00 |
from US $9.10 |
||
|
27
|
27
2C8-F3156-00-00
Clip, Oil Seal
|
2C8-F3156-00-00 |
— | ||
|
28
|
28
22B-F3144-10-00
Seal, Dust
|
22B-F3144-10-00 |
— | ||
| replacement | |||||
|
28
|
28
4EB-23144-00-00 Seal, Dust |
4EB-23144-00-00 |
from US $11.12 |
||
|
29
|
29
2C8-F3111-00-00
Bolt, Cap
|
2C8-F3111-00-00 |
— | ||
|
30
|
30
2C8-F3188-00-00
O-Ring
|
2C8-F3188-00-00 |
— | ||
|
31
|
31
2C8-F3149-00-00
Washer, Spring Upper
|
2C8-F3149-00-00 |
— | ||
|
32
|
32
22B-F3118-10-00
Spacer
|
22B-F3118-10-00 |
— | ||
|
33
|
33
22B-F3141-00-00
Spring, Front Fork
|
22B-F3141-00-00 |
— | ||
|
34
|
34
22B-F3110-10-00
Inner Tube Comp.1
|
22B-F3110-10-00 |
— | ||
|
35
|
35
22B-F3170-10-00
Cylinder Comp., Front Fork
|
22B-F3170-10-00 |
— | ||
|
36
|
36
2C8-F3157-00-00
Ring, Piston
|
2C8-F3157-00-00 |
— | ||
|
37
|
37
2C8-F3151-00-00
Spring, Rebound
|
2C8-F3151-00-00 |
— | ||
|
38
|
38
2C8-F3171-00-00
Piston, Front Fork
|
2C8-F3171-00-00 |
— | ||
|
39
|
39
22B-F3173-10-00
Spindle, Taper
|
22B-F3173-10-00 |
— | ||
|
40
|
40
2C8-F3181-00-00
Bolt, Hexagon Socket Head
|
2C8-F3181-00-00 |
— | ||
|
41
|
41
5VK-F3158-00-00
Gasket
|
5VK-F3158-00-00 |
— | ||
|
42
|
42
2C8-F331G-00-00
Cover
|
2C8-F331G-00-00 |
— | ||
|
43
|
43
913-12060-30-00
Bolt
|
913-12060-30-00 |
— | ||
| replacement | |||||
|
43
|
43
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.12 |
||
|
44
|
44
2C8-F3340-01-00
Under Bracket Comp
|
2C8-F3340-01-00 |
— | ||
|
45
|
45
4PX-23318-00-00 Holder, Cable 1 |
4PX-23318-00-00 |
from US $18.42 |
||
