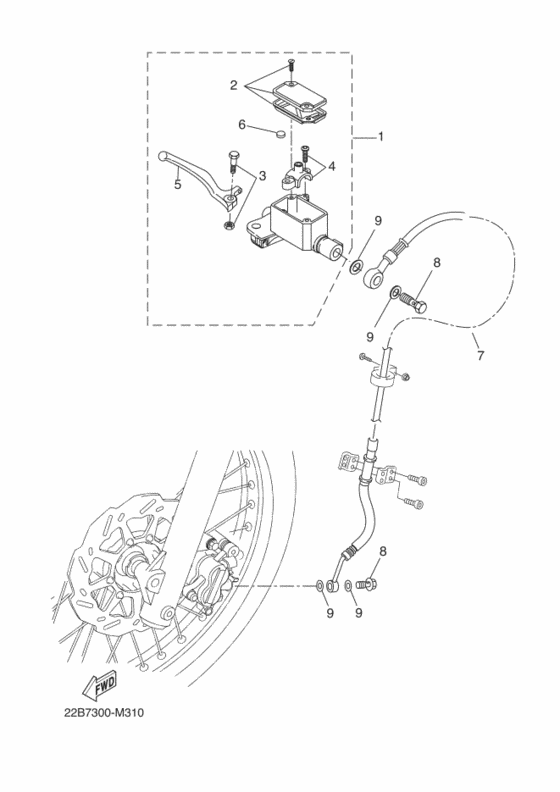

Front master cylinder Diagram Yamaha WR125 WR125R
- Year
- 2013
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 22B7
- Sales region
- Europe (060)
- Engine Capacity
- 125
- Color Variant
- B
- Model
- WR125R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22B-F583T-20-00
Master Cylinder Assy
|
22B-F583T-20-00 |
— | ||
|
2
|
2
5JH-H3945-00-00 Bolt, LeverBOLT + NUT |
5JH-H3945-00-00 |
US $4.99 |
||
|
3
|
3
22B-F5867-10-00
Bracket, Master Cylinder
|
22B-F5867-10-00 |
— | ||
|
4
|
4
5D7-H3922-10-00 Lever 2 |
5D7-H3922-10-00 |
US $25.22 |
||
|
5
|
5
1S0-F5852-00-00 Cap, Reservoir |
1S0-F5852-00-00 |
US $42.69 |
||
|
6
|
6
4GV-F589A-00-00
Cover, Dust
|
4GV-F589A-00-00 |
— | ||
|
7
|
7
22B-F5872-00-00
Hose, Brake 1
|
22B-F5872-00-00 |
— | ||
|
8
|
8
90401-10X03-00 Bolt, Union |
90401-10X03-00 |
US $7.51 |
||
|
9
|
9
90201-10X03-00 Washer, Plain |
90201-10X03-00 |
from US $4.68 |
