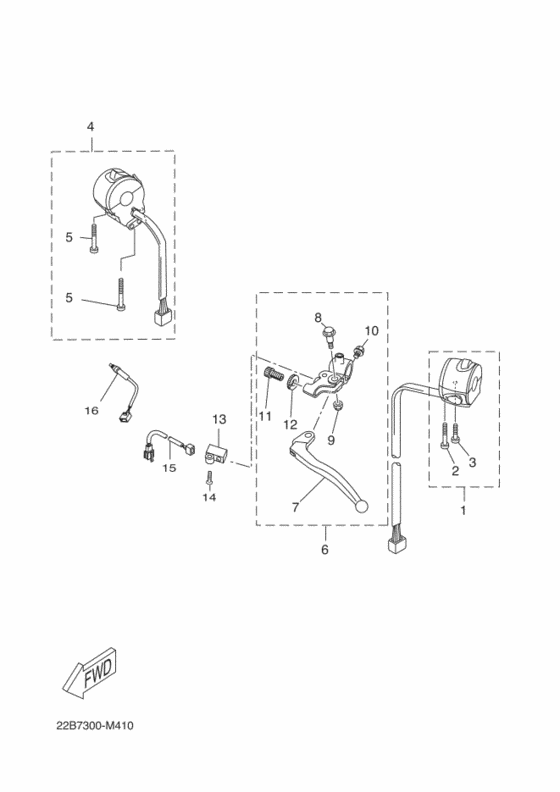

Handle switch & lever Diagram Yamaha WR125 WR125R
- Year
- 2013
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 22B7
- Sales region
- Europe (060)
- Engine Capacity
- 125
- Color Variant
- B
- Model
- WR125R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22B-H3972-02-00
Switch, Handle 4
|
22B-H3972-02-00 |
— | ||
|
2
|
2
5D7-H395Y-00-00 Screw, Switch Fitting 2Lg : 44mm |
5D7-H395Y-00-00 |
US $16.43 |
||
|
3
|
3
5D7-H395X-00-00 Screw, Switch Fitting 1Lg : 22mm |
5D7-H395X-00-00 |
US $4.39 |
||
|
4
|
4
22B-H3975-02-00
Switch, Handle 2
|
22B-H3975-02-00 |
— | ||
|
5
|
5
5D7-H395W-00-00 Screw, Switch Fitting |
5D7-H395W-00-00 |
US $5.53 |
||
|
6
|
6
22B-H2910-01-00
Lever Holder Assy (Left)
|
22B-H2910-01-00 |
— | ||
|
7
|
7
5D7-H3912-01-00 Lever 1 |
5D7-H3912-01-00 |
US $26.64 |
||
|
8
|
8
5D7-H3945-00-00
Bolt, Lever
|
5D7-H3945-00-00 |
— | ||
|
9
|
9
90185-06837-00
Nut, Self-Locking
|
90185-06837-00 |
— | ||
|
10
|
10
22B-H1826-00-00 Bolt |
22B-H1826-00-00 |
US $35.70 |
||
|
11
|
11
5D7-H3951-00-00 Bolt, Cable Adjusting |
5D7-H3951-00-00 |
US $33.29 |
||
|
12
|
12
5D7-H3927-00-00 Nut, Adjusting |
5D7-H3927-00-00 |
US $6.94 |
||
|
13
|
13
3YX-82917-01-00 Switch |
3YX-82917-01-00 |
from US $21.77 |
||
|
14
|
14
98707-03020-00 Screw, Flat Head |
98707-03020-00 |
from US $1.56 |
||
|
15
|
15
22B-H2926-00-00
Switch Cord
|
22B-H2926-00-00 |
— | ||
|
16
|
16
22B-H3980-20-00
Front Stop Switch Assy
|
22B-H3980-20-00 |
— |
