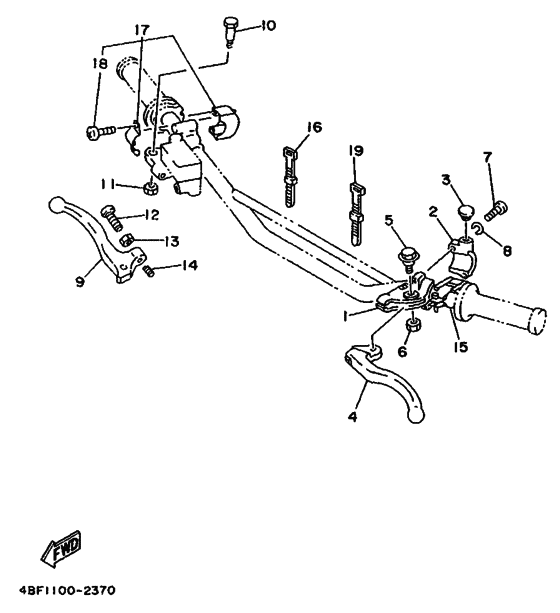

Handle switch & lever Diagram Yamaha WR200R
- Year
- 1991
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BF1
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- WR200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1LN-82911-00-00 Holder, Lever 1 |
1LN-82911-00-00 |
from US $36.90 |
||
|
2
|
2
33G-82913-00-00
Holder, Lever Lower 1
|
33G-82913-00-00 |
— | ||
| replacement | |||||
|
2
|
2
33G-82913-01-00 Holder, Lever Lower 1 |
33G-82913-01-00 |
from US $18.03 |
||
|
3
|
3
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
4
|
4
23X-83912-00-00
Lever 1
|
23X-83912-00-00 |
— | ||
| replacement | |||||
|
4
|
4
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
5
|
5
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
6
|
6
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
7
|
7
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
8
|
8
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
9
|
9
3JD-83922-00-00 Lever Rh |
3JD-83922-00-00 |
from US $26.49 |
||
|
10
|
10
90109-062A8-00 Bolt |
90109-062A8-00 |
from US $6.66 |
||
|
11
|
11
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
12
|
12
90149-06131-00 Screw |
90149-06131-00 |
from US $2.08 |
||
|
13
|
13
90170-06355-00 Nut |
90170-06355-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
90170-06010-00 Nut |
90170-06010-00 |
from US $2.35 |
||
|
14
|
14
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
15
|
15
23X-83976-00-00 Switch, Handle 1 |
23X-83976-00-00 |
from US $35.92 |
||
| replacement | |||||
|
15
|
15
23X-83976-01-00 Switch, Handle 1 |
23X-83976-01-00 |
from US $41.81 |
||
|
16
|
16
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
17
|
17
4BF-83976-00-00 Switch, Handle 1 |
4BF-83976-00-00 |
US $52.42 |
||
|
18
|
18
98506-04012-00 Screw, Pan Head |
98506-04012-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
19
|
19
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
