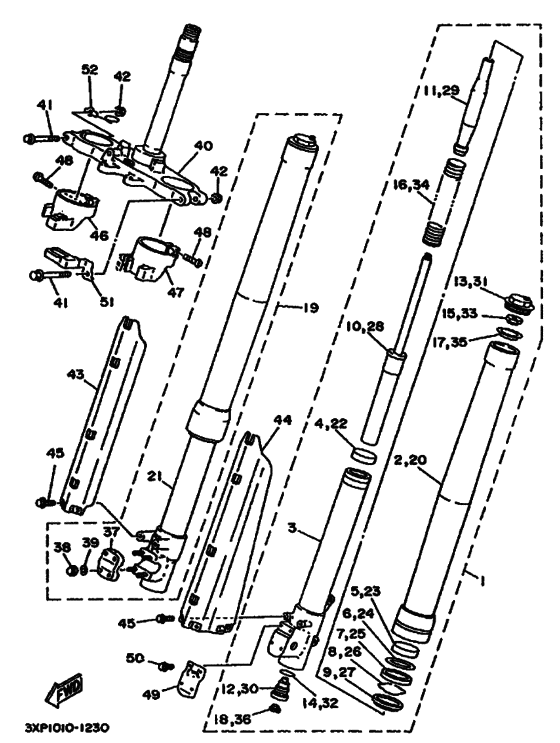

Front fork Diagram Yamaha WR200R
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BF2
- Sales region
- Europe (999)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- WR200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BF-23102-00-00
Front Fork Assembly L
|
4BF-23102-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
3XP-23136-00-00
Tube, Outer 2
|
3XP-23136-00-00 |
— | ||
|
3
|
3
3XP-23120-00-00
Innertube Comp.2
|
3XP-23120-00-00 |
— | ||
|
4
|
4
3JD-23171-L0-00 Metal, Slide |
3JD-23171-L0-00 |
from US $20.98 |
||
| replacement | |||||
|
4
|
4
4FM-23171-40-00 Metal, Slide |
4FM-23171-40-00 |
from US $13.48 |
||
|
5
|
5
3JD-23125-L0-00 Metal, Slide 1 |
3JD-23125-L0-00 |
from US $21.11 |
||
| replacement | |||||
|
5
|
5
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
6
|
6
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
7
|
7
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $10.10 |
||
|
8
|
8
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
9
|
9
3SP-23144-L0-00 Seal, Dust |
3SP-23144-L0-00 |
from US $24.30 |
||
| replacement | |||||
|
9
|
9
3SP-23144-L1-00 Seal, Dust |
3SP-23144-L1-00 |
from US $27.63 |
||
|
10
|
10
3XP-23170-00-00
Cylinder Comp., Frk
|
3XP-23170-00-00 |
— | ||
|
11
|
11
3XP-23142-00-00
Seat, Spring Upper
|
3XP-23142-00-00 |
— | ||
|
12
|
12
4BF-2316A-00-00
Valve Comp
|
4BF-2316A-00-00 |
— | ||
|
13
|
13
3XP-23111-00-00
Bolt Cap
|
3XP-23111-00-00 |
— | ||
|
14
|
14
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
15
|
15
3XP-23778-00-00 Nut |
3XP-23778-00-00 |
US $9.47 |
||
|
16
|
16
4BF-23141-00-00
Spring, Front Fork
|
4BF-23141-00-00 |
— | ||
|
17
|
17
3SP-23143-L0-00
Seat, Spring Lower
|
3SP-23143-L0-00 |
— | ||
|
18
|
18
55Y-2312G-M0-00 Plug |
55Y-2312G-M0-00 |
from US $8.88 |
||
|
19
|
19
4BF-23103-00-00
Front Fork Assembly R
|
4BF-23103-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
3XP-23136-00-00
Tube, Outer 2
|
3XP-23136-00-00 |
— | ||
|
21
|
21
3XP-23110-00-00
Innertube Comp 1
|
3XP-23110-00-00 |
— | ||
|
22
|
22
3JD-23171-L0-00 Metal, Slide |
3JD-23171-L0-00 |
from US $20.98 |
||
| replacement | |||||
|
22
|
22
4FM-23171-40-00 Metal, Slide |
4FM-23171-40-00 |
from US $13.48 |
||
|
23
|
23
3JD-23125-L0-00 Metal, Slide 1 |
3JD-23125-L0-00 |
from US $21.11 |
||
| replacement | |||||
|
23
|
23
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
24
|
24
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
25
|
25
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $10.10 |
||
|
26
|
26
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
27
|
27
3SP-23144-L0-00 Seal, Dust |
3SP-23144-L0-00 |
from US $24.30 |
||
| replacement | |||||
|
27
|
27
3SP-23144-L1-00 Seal, Dust |
3SP-23144-L1-00 |
from US $27.63 |
||
|
28
|
28
3XP-23170-00-00
Cylinder Comp., Frk
|
3XP-23170-00-00 |
— | ||
|
29
|
29
3XP-23142-00-00
Seat, Spring Upper
|
3XP-23142-00-00 |
— | ||
|
30
|
30
4BF-2316A-00-00
Valve Comp
|
4BF-2316A-00-00 |
— | ||
|
31
|
31
3XP-23111-00-00
Bolt Cap
|
3XP-23111-00-00 |
— | ||
|
32
|
32
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
33
|
33
3XP-23778-00-00 Nut |
3XP-23778-00-00 |
US $9.47 |
||
|
34
|
34
4BF-23141-00-00
Spring, Front Fork
|
4BF-23141-00-00 |
— | ||
|
35
|
35
3SP-23143-L0-00
Seat, Spring Lower
|
3SP-23143-L0-00 |
— | ||
|
36
|
36
55Y-2312G-M0-00 Plug |
55Y-2312G-M0-00 |
from US $8.88 |
||
|
37
|
37
3XJ-23167-L0-00 Holder, Axle |
3XJ-23167-L0-00 |
from US $27.72 |
||
|
38
|
38
5Y3-23393-00-00 Nut, Special |
5Y3-23393-00-00 |
from US $7.08 |
||
|
39
|
39
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
40
|
40
3XP-23340-00-00 Under Brkt Comp |
3XP-23340-00-00 |
US $599.51 |
||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
3XP-23346-00-00
Bolt 1
|
3XP-23346-00-00 |
— | ||
|
42
|
42
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
42
|
42
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
42
|
42
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
43
|
43
3XP-2314J-L0-00 Protector Comp, 2 |
3XP-2314J-L0-00 |
from US $124.62 |
||
|
44
|
44
3SP-2314H-L0-00
Protecter Comp., 1
|
3SP-2314H-L0-00 |
— | ||
| replacement | |||||
|
44
|
44
3XJ-2314H-L0-00
Protecter Comp., 1
|
3XJ-2314H-L0-00 |
— | ||
|
45
|
45
3SP-23356-L0-00 Bolt 2 |
3SP-23356-L0-00 |
from US $2.91 |
||
|
46
|
46
3SP-2314G-L0-00 Protecter Guide Comp., 2 |
3SP-2314G-L0-00 |
from US $30.46 |
||
|
47
|
47
3SP-2314F-L0-00 Protecter Guide Comp., 1 |
3SP-2314F-L0-00 |
from US $38.68 |
||
|
48
|
48
4V4-23194-L0-00 Screw, Pan Head |
4V4-23194-L0-00 |
US $1.21 |
||
| replacement | |||||
|
48
|
48
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
49
|
49
4EW-2314E-L0-00 Cover, Hose |
4EW-2314E-L0-00 |
US $12.58 |
||
|
50
|
50
3SP-23346-L0-00 Bolt, Flange |
3SP-23346-L0-00 |
from US $2.83 |
||
| replacement | |||||
|
50
|
50
95024-06008-00 Bolt, Flange |
95024-06008-00 |
from US $2.83 |
||
|
51
|
51
3XP-23318-10-00
Holder Cable 1
|
3XP-23318-10-00 |
— | ||
|
52
|
52
3XP-23389-10-00
Guide, Cable
|
3XP-23389-10-00 |
— | ||
