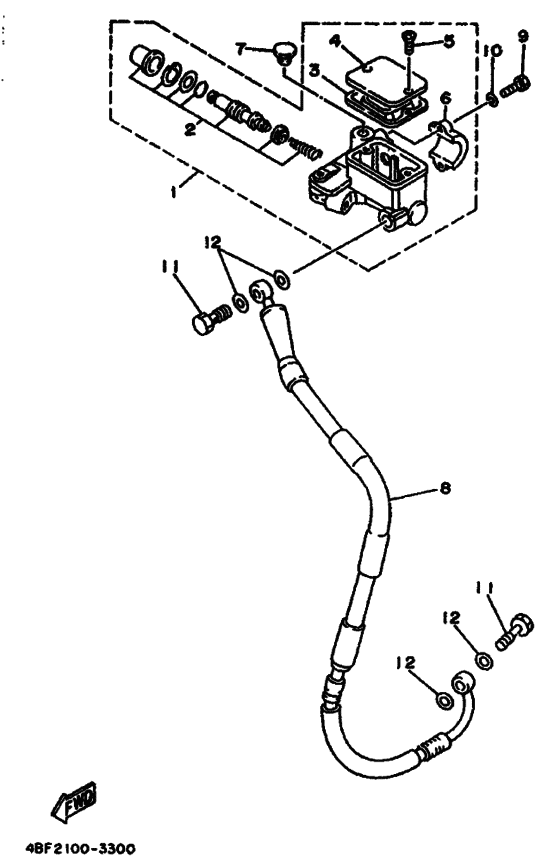

Front master cylinder Diagram Yamaha WR200R
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BF2
- Sales region
- Europe (999)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- WR200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3XP-2583T-00-00 Mstr Cylinder Assembly |
3XP-2583T-00-00 |
US $239.58 |
||
|
2
|
2
3XP-W0041-00-00
Cyl Kit,master
|
3XP-W0041-00-00 |
— | ||
| replacement | |||||
|
2
|
2
5VK-25807-00-00 Cylinder Kit, Master |
5VK-25807-00-00 |
from US $67.86 |
||
|
3
|
3
55U-25854-00-00 Gasket, Diaphragm |
55U-25854-00-00 |
from US $11.66 |
||
|
4
|
4
2KF-25852-01-00 Cap, Reservoir (Fron |
2KF-25852-01-00 |
from US $25.27 |
||
| replacement | |||||
|
4
|
4
2KF-25852-02-00 Cap, Reservoir (Front) |
2KF-25852-02-00 |
from US $25.27 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
8
|
8
4BF-25872-00-00 Hose, Brake 1 |
4BF-25872-00-00 |
US $281.30 |
||
| replacement | |||||
|
8
|
8
999-99030-42-00
Hose, Brake 1
|
999-99030-42-00 |
— | ||
|
9
|
9
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
10
|
10
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
11
|
11
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
11
|
11
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
12
|
12
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
12
|
12
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
