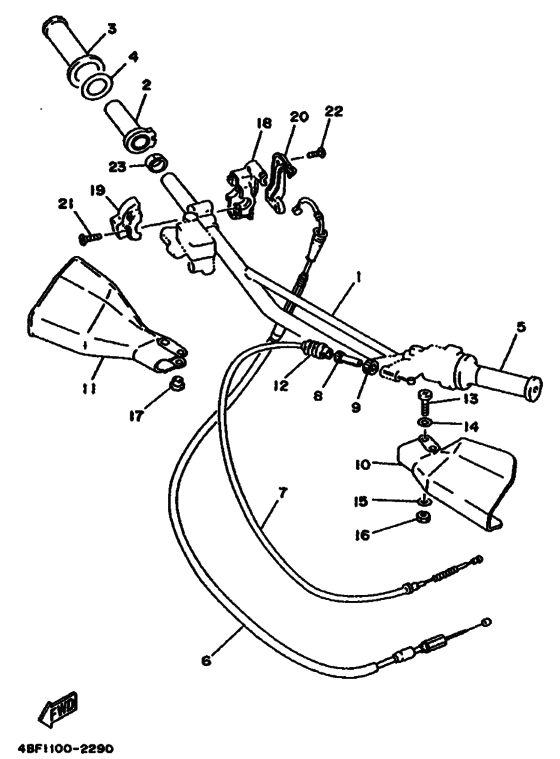

Steering handle & cable Diagram Yamaha WR200R
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BF2
- Sales region
- Europe (999)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- WR200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3XJ-26111-00-00
Handlebar
|
3XJ-26111-00-00 |
— | ||
|
2
|
2
322-26243-00-00 Tube, Throttle Guide |
322-26243-00-00 |
from US $12.61 |
||
| replacement | |||||
|
2
|
2
22W-26243-00-00 Tube, Throttle Guide |
22W-26243-00-00 |
from US $15.12 |
||
|
3
|
3
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $15.82 |
||
|
4
|
4
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
5
|
5
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $15.82 |
||
|
6
|
6
4BF-26311-00-00 Cable,throttle 1 |
4BF-26311-00-00 |
from US $37.72 |
||
| replacement | |||||
|
6
|
6
4BF-26311-01-00 Cable, Throttle 1 |
4BF-26311-01-00 |
from US $37.72 |
||
|
7
|
7
3XP-26335-00-00 Cable, clutch |
3XP-26335-00-00 |
from US $47.94 |
||
|
8
|
8
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
8
|
8
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
9
|
9
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
9
|
9
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
10
|
10
3BN-26141-20-00 Guard, Brush 1PURPLISH WHITE SOLID 1 |
3BN-26141-20-00 |
from US $12.12 |
||
|
11
|
11
3BN-26142-20-00 Guard, Brush 2PURPLISH WHITE SOLID 1 |
3BN-26142-20-00 |
from US $12.12 |
||
|
12
|
12
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
13
|
13
98501-06035-00 Screw Pan Head |
98501-06035-00 |
from US $1.21 |
||
| replacements | |||||
|
13
|
13
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
13
|
13
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
14
|
14
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
15
|
15
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
15
|
15
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
16
|
16
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
17
|
17
90387-06500-00 Collar |
90387-06500-00 |
from US $2.39 |
||
|
18
|
18
5X2-26281-00-00 Cap, Grip Upper |
5X2-26281-00-00 |
from US $21.82 |
||
|
19
|
19
322-26282-00-00 Cap, Grip Under |
322-26282-00-00 |
from US $14.45 |
||
|
20
|
20
5X2-2628H-01-00 Cap, Wire |
5X2-2628H-01-00 |
from US $9.57 |
||
|
21
|
21
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
21
|
21
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
22
|
22
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
22
|
22
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
23
|
23
90387-22660-00 Collar |
90387-22660-00 |
from US $1.84 |
||
