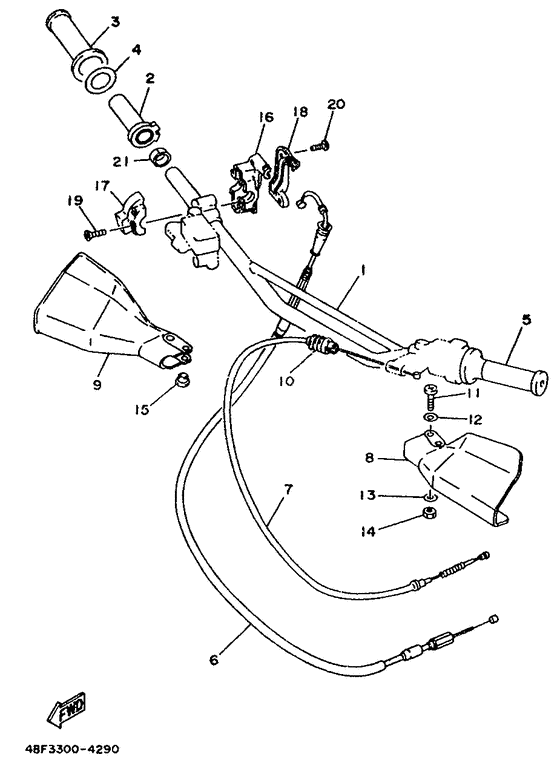

Steering handle & cable Diagram Yamaha WR200R
- Year
- 1994
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BF3
- Sales region
- Europe (General) (999)
- Engine Capacity
- 200
- Model
- WR200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3XJ-26111-00-00
Handlebar
|
3XJ-26111-00-00 |
— | ||
|
02
|
02
322-26243-00-00 Tube, Throttle Guide |
322-26243-00-00 |
from US $12.61 |
||
| replacement | |||||
|
02
|
02
22W-26243-00-00 Tube, Throttle Guide |
22W-26243-00-00 |
from US $15.12 |
||
|
03
|
03
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $15.82 |
||
|
04
|
04
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
05
|
05
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $15.82 |
||
|
06
|
06
4BF-26311-00-00 Cable,throttle 1 |
4BF-26311-00-00 |
from US $37.72 |
||
| replacement | |||||
|
06
|
06
4BF-26311-01-00 Cable, Throttle 1 |
4BF-26311-01-00 |
from US $37.72 |
||
|
07
|
07
3XP-26335-00-00 Cable, clutch |
3XP-26335-00-00 |
from US $47.94 |
||
|
08
|
08
3BN-26141-20-00 Guard, Brush 1Purplish white solid 1 |
3BN-26141-20-00 |
from US $12.12 |
||
|
09
|
09
3BN-26142-20-00 Guard, Brush 2Purplish white solid 1 |
3BN-26142-20-00 |
from US $12.12 |
||
|
10
|
10
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
11
|
11
98501-06035-00 Screw Pan Head |
98501-06035-00 |
from US $1.21 |
||
| replacements | |||||
|
11
|
11
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
11
|
11
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
12
|
12
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
12
|
12
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
12
|
12
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
13
|
13
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
13
|
13
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
14
|
14
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
90387-06500-00 Collar |
90387-06500-00 |
from US $2.39 |
||
|
16
|
16
5X2-26281-00-00 Cap, Grip Upper |
5X2-26281-00-00 |
from US $21.82 |
||
|
17
|
17
322-26282-00-00 Cap, Grip Under |
322-26282-00-00 |
from US $14.45 |
||
|
18
|
18
5X2-2628H-01-00 Cap, Wire |
5X2-2628H-01-00 |
from US $9.57 |
||
|
19
|
19
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
19
|
19
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
20
|
20
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
20
|
20
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
21
|
21
90387-22660-00 Collar |
90387-22660-00 |
from US $1.84 |
||
