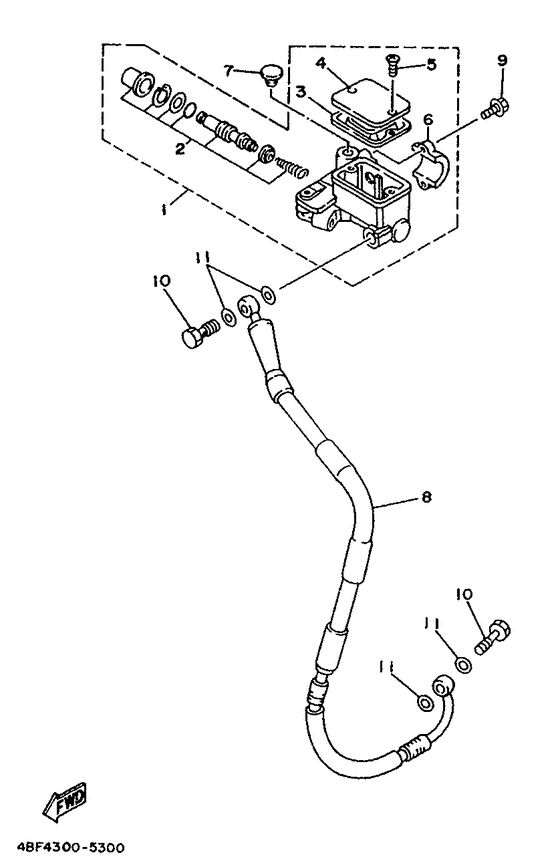

Front master cylinder Diagram Yamaha WR200R
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BF4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 200
- Model
- WR200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3XP-2583T-00-00 Mstr Cylinder Assembly |
3XP-2583T-00-00 |
US $239.58 |
||
|
02
|
02
3XP-W0041-00-00
Cyl Kit,master
|
3XP-W0041-00-00 |
— | ||
| replacement | |||||
|
02
|
02
5VK-25807-00-00 Cylinder Kit, Master |
5VK-25807-00-00 |
from US $67.86 |
||
|
03
|
03
55U-25854-00-00 Gasket, Diaphragm |
55U-25854-00-00 |
from US $11.66 |
||
|
04
|
04
2KF-25852-01-00 Cap, Reservoir (Fron |
2KF-25852-01-00 |
from US $25.27 |
||
| replacement | |||||
|
04
|
04
2KF-25852-02-00 Cap, Reservoir (Front) |
2KF-25852-02-00 |
from US $25.27 |
||
|
05
|
05
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
06
|
06
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
07
|
07
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
08
|
08
4BF-25872-01-00
Hose, Brake 1
|
4BF-25872-01-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99030-42-00
Hose, Brake 1
|
999-99030-42-00 |
— | ||
|
09
|
09
95807-06022-00 Bolt, Flange |
95807-06022-00 |
US $1.07 |
||
| replacements | |||||
|
09
|
09
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
09
|
09
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
10
|
10
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
11
|
11
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
11
|
11
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
