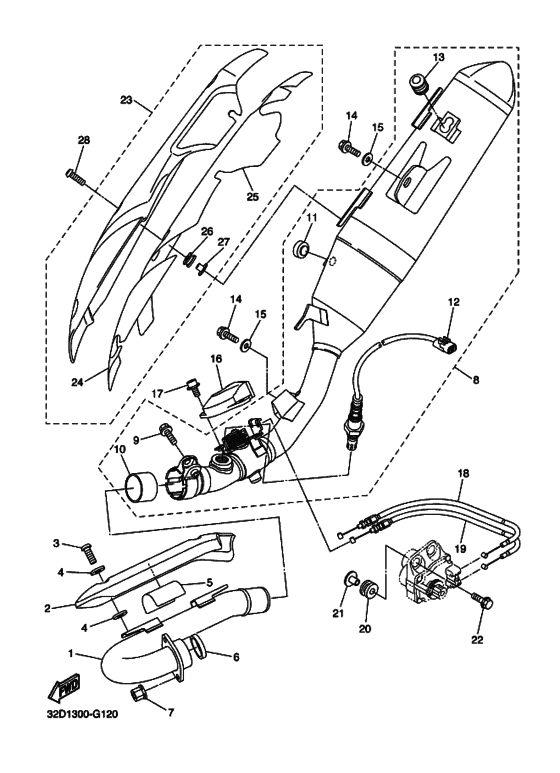

Exhaust Diagram Yamaha WR250 WR250R
- Year
- 2010
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 32DB
- Sales region
- Europe (050)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- WR250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D7-14611-00-00 Pipe, Exhaust 1 |
3D7-14611-00-00 |
from US $223.82 |
||
|
2
|
2
3D7-14628-00-00 Protector, Exhaust Pipe |
3D7-14628-00-00 |
from US $114.81 |
||
|
3
|
3
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
4
|
4
90201-05015-00 Washer, Plate |
90201-05015-00 |
from US $2.69 |
||
|
5
|
5
3D7-1465R-00-00 Plate, Protector 1 |
3D7-1465R-00-00 |
from US $4.23 |
||
|
6
|
6
4FM-14613-00-00 Gasket, Exhaust Pipe |
4FM-14613-00-00 |
from US $5.74 |
||
|
7
|
7
90179-08410-00 Nut |
90179-08410-00 |
from US $1.81 |
||
|
8
|
8
32D-14710-00-00 Muffler Assy 1 |
32D-14710-00-00 |
US $2,336.40 |
||
|
9
|
9
95824-08035-00 Bolt, Flange |
95824-08035-00 |
from US $2.91 |
||
| replacement | |||||
|
9
|
9
95814-08035-00 Bolt, Flange(4Fm) |
95814-08035-00 |
from US $2.69 |
||
|
10
|
10
5PX-14755-00-00 Gasket, Silencer |
5PX-14755-00-00 |
from US $20.12 |
||
|
11
|
11
22W-24181-00-00 Damper, Locating 1 |
22W-24181-00-00 |
from US $3.89 |
||
|
12
|
12
32D-8592A-00-00 Sensor, Oxygen |
32D-8592A-00-00 |
US $227.96 |
||
|
13
|
13
3D7-14737-00-00 Damper, Muffler |
3D7-14737-00-00 |
from US $4.82 |
||
|
14
|
14
95024-10016-00 Bolt, Flange (Small Head) |
95024-10016-00 |
from US $2.55 |
||
|
15
|
15
92902-10200-00 Washer, Plain |
92902-10200-00 |
US $1.18 |
||
| replacement | |||||
|
15
|
15
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
16
|
16
3D7-14826-00-00 Protector, Exhaust |
3D7-14826-00-00 |
from US $29.33 |
||
|
17
|
17
90119-06115-00 Bolt, Flange |
90119-06115-00 |
from US $2.77 |
||
|
18
|
18
3D7-1133E-01-00 Cable, Pulley 1 |
3D7-1133E-01-00 |
from US $53.88 |
||
|
19
|
19
3D7-1133F-01-00 Cable, Pulley 2 |
3D7-1133F-01-00 |
from US $53.33 |
||
|
20
|
20
90480-14604-00 Grommet |
90480-14604-00 |
from US $7.51 |
||
|
21
|
21
903-87063-E6-00
Collar
|
903-87063-E6-00 |
— | ||
| replacement | |||||
|
21
|
21
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
22
|
22
95022-06025-00 Bolt, Flange |
95022-06025-00 |
from US $1.52 |
||
|
23
|
23
3D7-14708-00-P0
Protector Assy
S8 |
3D7-14708-00-P0 |
— | ||
| replacement | |||||
|
23
|
23
3D7-14708-10-P0 Protector AssyS8 |
3D7-14708-10-P0 |
from US $210 |
||
|
24
|
24
3D7-14728-00-00 Protector, Muffler 2 |
3D7-14728-00-00 |
from US $8.93 |
||
|
25
|
25
3D7-14738-00-00 Protector, Muffler 3 |
3D7-14738-00-00 |
from US $27.34 |
||
|
26
|
26
90480-12581-00 Grommet |
90480-12581-00 |
from US $7.79 |
||
|
27
|
27
90387-087L0-00 Collar |
90387-087L0-00 |
from US $3.54 |
||
|
28
|
28
90111-06087-00 Bolt, Hex. Socket Button |
90111-06087-00 |
from US $5.10 |
||
