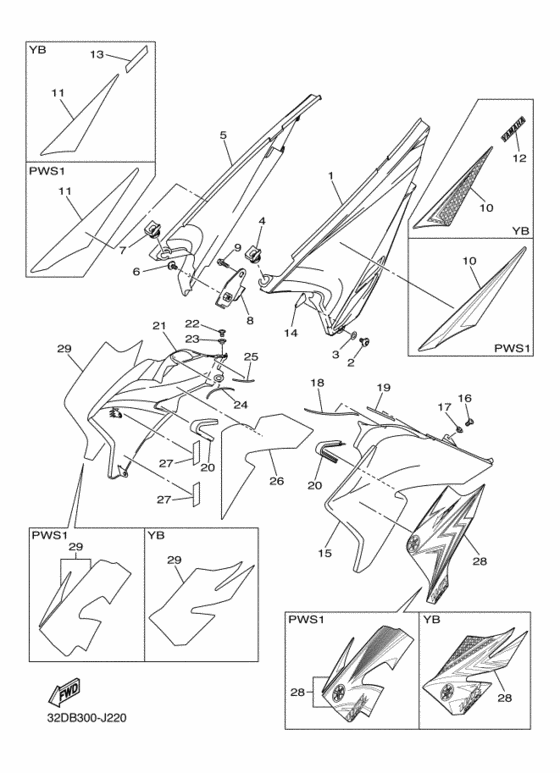

Side cover Diagram Yamaha WR250 WR250R
- Year
- 2010
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 32DB
- Sales region
- Europe (050)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- WR250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D7-21711-00-00 Cover, Side 1 |
3D7-21711-00-00 |
from US $29.96 |
||
|
2
|
2
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.66 |
||
|
3
|
3
902-01060-58-00
Washer Plate 101241870000
|
902-01060-58-00 |
— | ||
| replacements | |||||
|
3
|
3
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
3
|
3
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
|
4
|
4
3D7-21719-00-00 Grommet |
3D7-21719-00-00 |
from US $3.68 |
||
|
5
|
5
3D7-21721-00-00 Cover, Side 2 |
3D7-21721-00-00 |
from US $29.96 |
||
|
6
|
6
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.66 |
||
|
7
|
7
3D7-21719-00-00 Grommet |
3D7-21719-00-00 |
from US $3.68 |
||
|
8
|
8
3D7-2172E-00-00 Stay, Side Cover 1 |
3D7-2172E-00-00 |
from US $5.81 |
||
|
9
|
9
95022-06010-00 Bolt, Flange |
95022-06010-00 |
from US $1.66 |
||
|
10
|
10
32C-2173E-10-00 Graphic 1FOR PWS1 |
32C-2173E-10-00 |
US $57.61 |
||
|
11
|
11
32C-2173F-10-00 Graphic 2FOR PWS1 |
32C-2173F-10-00 |
US $57.61 |
||
|
14
|
14
3D7-2174X-00-00 Damper |
3D7-2174X-00-00 |
from US $2.22 |
||
|
15
|
15
3D7-2137W-10-00 Scoop, Air 1UR FOR PWS1 |
3D7-2137W-10-00 |
from US $98.88 |
||
|
16
|
16
989-02060-10-00
Screw, Bind
|
989-02060-10-00 |
— | ||
| replacements | |||||
|
16
|
16
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.39 |
||
|
16
|
16
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
17
|
17
90387-066R8-00 Collar |
90387-066R8-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
90387-062M9-00 Collar |
90387-062M9-00 |
from US $1.70 |
||
|
18
|
18
3D7-2414H-00-00 Damper, Plate 1 |
3D7-2414H-00-00 |
from US $2.22 |
||
|
19
|
19
3D7-2414J-00-00 Damper, Plate 2 |
3D7-2414J-00-00 |
from US $1.98 |
||
|
20
|
20
3D7-24175-00-00 Spacer 2 |
3D7-24175-00-00 |
from US $13.04 |
||
|
21
|
21
3D7-2137X-10-00 Scoop, Air 2UR FOR PWS1 |
3D7-2137X-10-00 |
from US $98.88 |
||
|
22
|
22
989-02060-10-00
Screw, Bind
|
989-02060-10-00 |
— | ||
| replacements | |||||
|
22
|
22
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.39 |
||
|
22
|
22
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
23
|
23
90387-066R8-00 Collar |
90387-066R8-00 |
from US $1.42 |
||
| replacement | |||||
|
23
|
23
90387-062M9-00 Collar |
90387-062M9-00 |
from US $1.70 |
||
|
24
|
24
3D7-2414H-00-00 Damper, Plate 1 |
3D7-2414H-00-00 |
from US $2.22 |
||
|
25
|
25
3D7-2414J-00-00 Damper, Plate 2 |
3D7-2414J-00-00 |
from US $1.98 |
||
|
26
|
26
3D7-2414K-00-00 Damper, Plate 3 |
3D7-2414K-00-00 |
from US $66.51 |
||
|
27
|
27
3D7-2173T-00-00 Tape 1 |
3D7-2173T-00-00 |
from US $1.98 |
||
|
28
|
28
32C-2173L-20-00
Graphic Set 1
UR FOR PWS1 |
32C-2173L-20-00 |
— | ||
|
29
|
29
32C-2174L-20-00
Graphic Set 2
UR FOR PWS1 |
32C-2174L-20-00 |
— | ||
