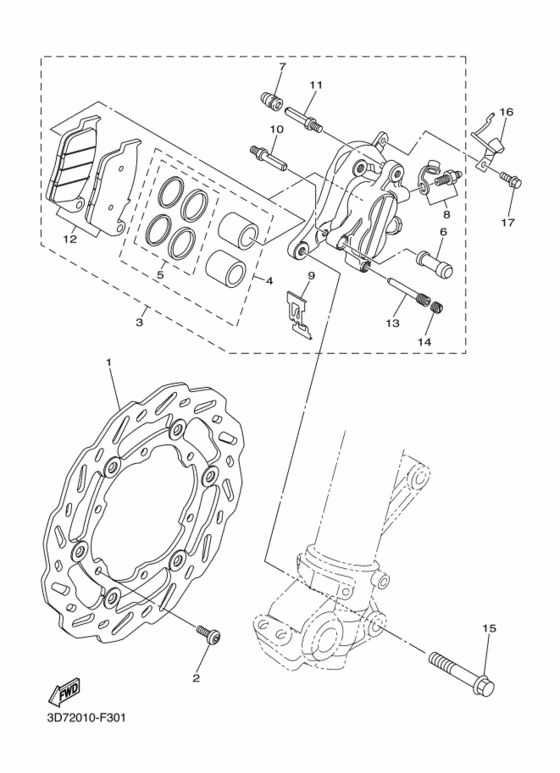

Front brake caliper Diagram Yamaha WR250 WR250X
- Year
- 2011
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3D78
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- WR250X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D7-2581T-11-00 Disc Brake Assy |
3D7-2581T-11-00 |
from US $228.60 |
||
| replacement | |||||
|
1
|
1
3D7-2581T-12-00 |
3D7-2581T-12-00 |
US $264.42 |
||
|
2
|
2
90111-08052-00 Bolt,hex. Socket But |
90111-08052-00 |
from US $2.27 |
||
| replacement | |||||
|
2
|
2
901-11080-53-00 Bolt,hex. Socket Button |
901-11080-53-00 |
from US $1.77 |
||
|
3
|
3
3D7-2580T-10-00 Caliper Assy (Left)レフト |
3D7-2580T-10-00 |
from US $491.04 |
||
|
4
|
4
3D7-W0057-00-00 Piston Assy, Caliper．ピストンアセンブリ，キヤリパ; |
3D7-W0057-00-00 |
from US $38.02 |
||
|
5
|
5
3JD-W0047-00-00 Caliper Seal Kit．．キヤリパシールキツト; |
3JD-W0047-00-00 |
from US $22.57 |
||
| replacement | |||||
|
5
|
5
3JD-25803-00-00 Caliper Seal Kit．．キヤリパシールキツト; |
3JD-25803-00-00 |
from US $22.68 |
||
|
6
|
6
1UY-25937-51-00 Boot 2．ブーツ ２; |
1UY-25937-51-00 |
from US $5.68 |
||
|
7
|
7
3JD-25917-00-00 Boot, Caliper．ブーツ，キヤリパ; |
3JD-25917-00-00 |
from US $3.74 |
||
|
8
|
8
1UY-W0048-50-00
Bleed Screw Kit
．ブリードスクリユキツト; |
1UY-W0048-50-00 |
— | ||
| replacement | |||||
|
8
|
8
36Y-W0048-00-00 Bleed Screw Kit．ブリードスクリユキツト; |
36Y-W0048-00-00 |
from US $10.37 |
||
|
9
|
9
4TU-25977-00-00 Spring, Return．スプリング，リターン; |
4TU-25977-00-00 |
from US $10.75 |
||
|
10
|
10
3SP-25914-51-00 Pin, Slide．ピン，スライド; |
3SP-25914-51-00 |
from US $5.68 |
||
|
11
|
11
3D7-25926-00-00 Bolt．ボルト; |
3D7-25926-00-00 |
from US $10.42 |
||
|
12
|
12
3D7-W0045-10-00 Brake Pad Kit．ブレーキパツドキツト; |
3D7-W0045-10-00 |
from US $56.83 |
||
|
13
|
13
4TU-25744-00-00 Pin 2．ピン ２; |
4TU-25744-00-00 |
from US $9.07 |
||
|
14
|
14
5DH-25916-00-00 Plug．プラグ; |
5DH-25916-00-00 |
from US $3.54 |
||
|
15
|
15
90105-08158-00 Bolt, Flange |
90105-08158-00 |
from US $2.69 |
||
|
16
|
16
3D7-25875-00-00 Holder, Brake Hose 1ホルダ，ブレーキホース １; |
3D7-25875-00-00 |
from US $18.14 |
||
|
17
|
17
950-27060-10-00 Bolt, Flange(4My)ボルト，フランジ; |
950-27060-10-00 |
from US $1.18 |
||
