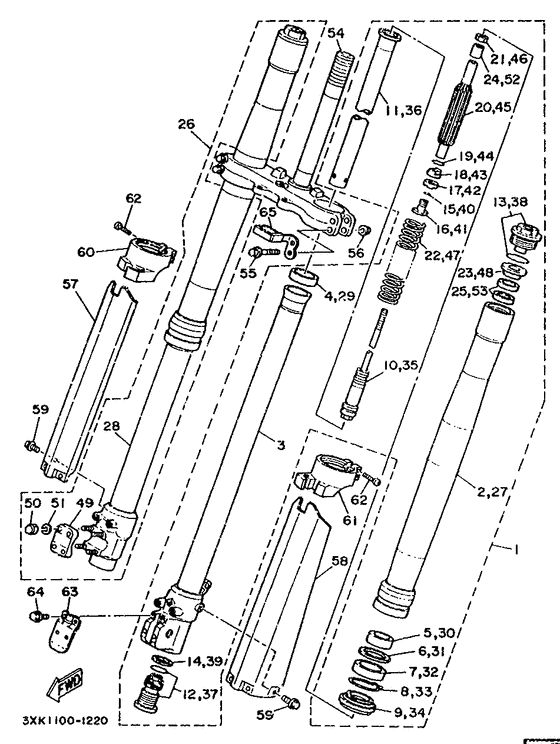

Front fork Diagram Yamaha WR250 WR250Z
- Year
- 1991
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3RB3
- Sales region
- North America (999)
- Engine Capacity
- 250
- Model
- WR250Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3RB-23102-10-00
Front Fork Assembly L
|
3RB-23102-10-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
3XJ-23136-L0-00
Tube, Outer 2 (Right)
|
3XJ-23136-L0-00 |
— | ||
| replacement | |||||
|
02
|
02
4DA-23136-L0-00
Tube, Outer 2 (Right)
|
4DA-23136-L0-00 |
— | ||
|
03
|
03
3XJ-23120-L0-00
Inner Tube Comp.2
|
3XJ-23120-L0-00 |
— | ||
|
04
|
04
3XJ-23171-L0-00
Metal, Slide 2
|
3XJ-23171-L0-00 |
— | ||
| replacement | |||||
|
04
|
04
5EB-23171-00-00 Piston, Front Fork |
5EB-23171-00-00 |
from US $18.86 |
||
|
05
|
05
3XJ-23125-L0-00
Metal, Slide 1
|
3XJ-23125-L0-00 |
— | ||
| replacement | |||||
|
05
|
05
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $20.67 |
||
|
06
|
06
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
07
|
07
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
08
|
08
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $4.50 |
||
|
09
|
09
3XJ-23144-L0-00 Seal, Dust |
3XJ-23144-L0-00 |
from US $16.01 |
||
| replacement | |||||
|
09
|
09
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $11.12 |
||
|
10
|
10
3XJ-2314A-M0-00
Piston Rod Assembly (3Xj-2314
|
3XJ-2314A-M0-00 |
— | ||
|
11
|
11
3XJ-23170-L0-00
Cylinder Comp., Front Fork
|
3XJ-23170-L0-00 |
— | ||
|
12
|
12
3XJ-2316A-L0-00
Valve Comp
|
3XJ-2316A-L0-00 |
— | ||
|
13
|
13
3XJ-23111-L0-00
Bolt, Cap
|
3XJ-23111-L0-00 |
— | ||
|
14
|
14
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
15
|
15
3XJ-23153-L0-00 Ring, Snap |
3XJ-23153-L0-00 |
US $3.96 |
||
|
16
|
16
3XJ-23113-L0-00 Collar |
3XJ-23113-L0-00 |
US $32.83 |
||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
3XJ-23166-L0-00 Spacer, Oil Lock |
3XJ-23166-L0-00 |
US $16.45 |
||
|
18
|
18
3XJ-23778-L0-00 Nut |
3XJ-23778-L0-00 |
US $34.16 |
||
|
19
|
19
36Y-23147-10-00 O-Ring |
36Y-23147-10-00 |
US $6.98 |
||
|
20
|
20
3XJ-23142-L0-00
Seat, Spring Upper
|
3XJ-23142-L0-00 |
— | ||
|
21
|
21
3XJ-23357-L0-00 Nut |
3XJ-23357-L0-00 |
from US $1.13 |
||
|
22
|
22
3XK-23141-L0-00
Spring, Front Fork (K=0.390)
|
3XK-23141-L0-00 |
— | ||
|
23
|
23
3XJ-23143-L0-00 Seat, Spring Lower |
3XJ-23143-L0-00 |
US $16.97 |
||
|
24
|
24
3XJ-23363-L0-00
Collar 1
|
3XJ-23363-L0-00 |
— | ||
|
25
|
25
3XJ-23364-L0-00
Collar 2
|
3XJ-23364-L0-00 |
— | ||
|
26
|
26
3RB-23103-10-00
Front Fork Assembly R
|
3RB-23103-10-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
3XJ-23136-L0-00
Tube, Outer 2 (Right)
|
3XJ-23136-L0-00 |
— | ||
| replacement | |||||
|
27
|
27
4DA-23136-L0-00
Tube, Outer 2 (Right)
|
4DA-23136-L0-00 |
— | ||
|
28
|
28
3XJ-23110-L0-00
Inner Tube Comp.1
|
3XJ-23110-L0-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
3XJ-23171-L0-00
Metal, Slide 2
|
3XJ-23171-L0-00 |
— | ||
| replacement | |||||
|
29
|
29
5EB-23171-00-00 Piston, Front Fork |
5EB-23171-00-00 |
from US $18.86 |
||
|
30
|
30
3XJ-23125-L0-00
Metal, Slide 1
|
3XJ-23125-L0-00 |
— | ||
| replacement | |||||
|
30
|
30
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $20.67 |
||
|
31
|
31
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
32
|
32
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
33
|
33
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $4.50 |
||
|
34
|
34
3XJ-23144-L0-00 Seal, Dust |
3XJ-23144-L0-00 |
from US $16.01 |
||
| replacement | |||||
|
34
|
34
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $11.12 |
||
|
35
|
35
3XJ-2314A-M0-00
Piston Rod Assembly (3Xj-2314
|
3XJ-2314A-M0-00 |
— | ||
|
36
|
36
3XJ-23170-L0-00
Cylinder Comp., Front Fork
|
3XJ-23170-L0-00 |
— | ||
|
37
|
37
3XJ-2316A-L0-00
Valve Comp
|
3XJ-2316A-L0-00 |
— | ||
|
38
|
38
3XJ-23111-L0-00
Bolt, Cap
|
3XJ-23111-L0-00 |
— | ||
|
39
|
39
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
40
|
40
3XJ-23153-L0-00 Ring, Snap |
3XJ-23153-L0-00 |
US $3.96 |
||
|
41
|
41
3XJ-23113-L0-00 Collar |
3XJ-23113-L0-00 |
US $32.83 |
||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
3XJ-23166-L0-00 Spacer, Oil Lock |
3XJ-23166-L0-00 |
US $16.45 |
||
|
43
|
43
3XJ-23778-L0-00 Nut |
3XJ-23778-L0-00 |
US $34.16 |
||
|
44
|
44
36Y-23147-10-00 O-Ring |
36Y-23147-10-00 |
US $6.98 |
||
|
45
|
45
3XJ-23142-L0-00
Seat, Spring Upper
|
3XJ-23142-L0-00 |
— | ||
|
46
|
46
3XJ-23357-L0-00 Nut |
3XJ-23357-L0-00 |
from US $1.13 |
||
|
47
|
47
3XK-23141-L0-00
Spring, Front Fork (K=0.390)
|
3XK-23141-L0-00 |
— | ||
|
48
|
48
3XJ-23143-L0-00 Seat, Spring Lower |
3XJ-23143-L0-00 |
US $16.97 |
||
|
49
|
49
3XJ-23167-L0-00 Holder, Axle |
3XJ-23167-L0-00 |
from US $27.72 |
||
|
50
|
50
5Y3-23393-L0-00
Nut, Special
|
5Y3-23393-L0-00 |
— | ||
|
51
|
51
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
51
|
51
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
52
|
52
3XJ-23363-L0-00
Collar 1
|
3XJ-23363-L0-00 |
— | ||
|
53
|
53
3XJ-23364-L0-00
Collar 2
|
3XJ-23364-L0-00 |
— | ||
|
54
|
54
3XJ-23340-L0-00
Under Bracket Comp
|
3XJ-23340-L0-00 |
— | ||
| replacement | |||||
|
54
|
54
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
55
|
55
95021-08060-00 Bolt, Flange (Small Head) |
95021-08060-00 |
from US $4.25 |
||
| replacement | |||||
|
55
|
55
950-24080-60-00 Bolt, Flange (Small Head) |
950-24080-60-00 |
from US $4.25 |
||
|
56
|
56
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
56
|
56
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
56
|
56
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
57
|
57
3XJ-2314J-L0-00
Protecter Comp., 2
|
3XJ-2314J-L0-00 |
— | ||
|
58
|
58
3XJ-2314H-L0-00
Protecter Comp., 1
|
3XJ-2314H-L0-00 |
— | ||
|
59
|
59
3SP-23356-L0-00 Bolt 2 |
3SP-23356-L0-00 |
from US $2.91 |
||
|
60
|
60
3SP-2314G-L0-00 Protecter Guide Comp., 2 |
3SP-2314G-L0-00 |
from US $30.46 |
||
|
61
|
61
3SP-2314F-L0-00 Protecter Guide Comp., 1 |
3SP-2314F-L0-00 |
from US $38.68 |
||
|
62
|
62
98501-04030-00 Screw, Pan Head |
98501-04030-00 |
US $2.13 |
||
| replacements | |||||
|
62
|
62
985-17040-30-00
Screw, Pan Head(1Ke)
|
985-17040-30-00 |
— | ||
|
62
|
62
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
62
|
62
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
62
|
62
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
62
|
62
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
62
|
62
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
63
|
63
3SP-2314E-L0-00
Cover, Hose
|
3SP-2314E-L0-00 |
— | ||
|
64
|
64
3SP-23346-L0-00 Bolt, Flange |
3SP-23346-L0-00 |
from US $2.83 |
||
| replacement | |||||
|
64
|
64
95024-06008-00 Bolt, Flange |
95024-06008-00 |
from US $2.83 |
||
|
65
|
65
3JD-23389-01-00
Guide, Cable
|
3JD-23389-01-00 |
— | ||
