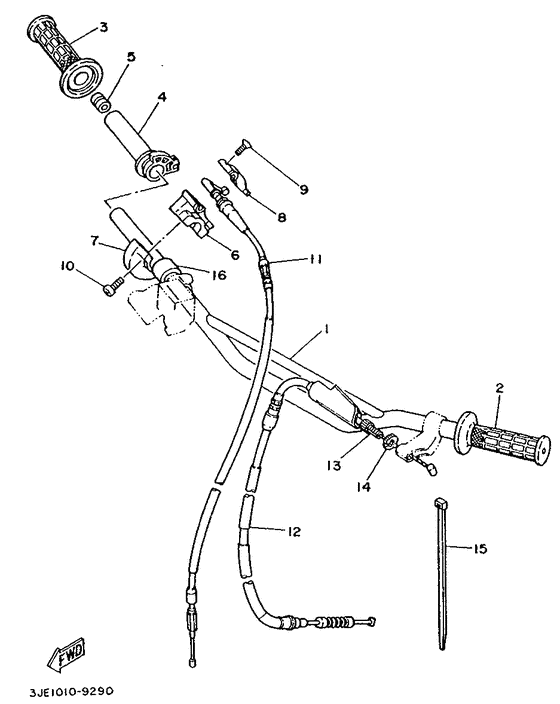

Steering handle & cable Diagram Yamaha WR250 WR250Z
- Year
- 1991
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3RB3
- Sales region
- North America (999)
- Engine Capacity
- 250
- Model
- WR250Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3XJ-26111-00-00
Handlebar
|
3XJ-26111-00-00 |
— | ||
|
02
|
02
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $15.82 |
||
|
03
|
03
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $15.82 |
||
|
04
|
04
23X-26243-00-00 Tube, Throttle Guide |
23X-26243-00-00 |
from US $16.13 |
||
| replacement | |||||
|
04
|
04
23X-26243-01-00 Tube, Throttle Guide |
23X-26243-01-00 |
from US $16.81 |
||
|
05
|
05
688-82535-00-00 Plug |
688-82535-00-00 |
from US $2.41 |
||
| replacement | |||||
|
05
|
05
90338-12192-00 Plug(2Gu) |
90338-12192-00 |
from US $2.02 |
||
|
06
|
06
23X-26281-00-00 Cap, Grip Upper |
23X-26281-00-00 |
from US $29.74 |
||
| replacement | |||||
|
06
|
06
23X-26281-01-00 Cap, Grip Upper |
23X-26281-01-00 |
from US $30.06 |
||
|
07
|
07
431-26282-01-98 Cap, Grip LowerLow gloss black |
431-26282-01-98 |
from US $41.67 |
||
| replacements | |||||
|
07
|
07
431-26282-02-00 Cap, Grip UnderLow gloss black |
431-26282-02-00 |
from US $41.40 |
||
|
07
|
07
431-26282-03-00 Cap, Grip UnderLow gloss black |
431-26282-03-00 |
from US $41.83 |
||
|
08
|
08
5X2-2628H-01-00 Cap, Wire |
5X2-2628H-01-00 |
from US $9.57 |
||
|
09
|
09
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
09
|
09
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
10
|
10
985-06050-16-00
Screw, Pan Head
|
985-06050-16-00 |
— | ||
| replacements | |||||
|
10
|
10
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
10
|
10
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
11
|
11
3JD-26311-00-00 Cable, Throttle 1 |
3JD-26311-00-00 |
from US $36.07 |
||
| replacement | |||||
|
11
|
11
4EW-26311-00-00 Cable, Throttle 1 |
4EW-26311-00-00 |
from US $43.93 |
||
|
12
|
12
3XK-26335-00-00 Cable, clutch |
3XK-26335-00-00 |
from US $37.44 |
||
| replacement | |||||
|
12
|
12
4EW-26335-00-00 Cable, clutch |
4EW-26335-00-00 |
from US $37.44 |
||
|
13
|
13
90123-08090-00 Bolt |
90123-08090-00 |
from US $12.75 |
||
|
14
|
14
90179-08401-00
Nut
|
90179-08401-00 |
— | ||
| replacements | |||||
|
14
|
14
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
14
|
14
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
15
|
15
904-64141-17-00
Clamp
|
904-64141-17-00 |
— | ||
| replacement | |||||
|
15
|
15
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
16
|
16
90560-22281-00 Spacer |
90560-22281-00 |
from US $8.64 |
||
