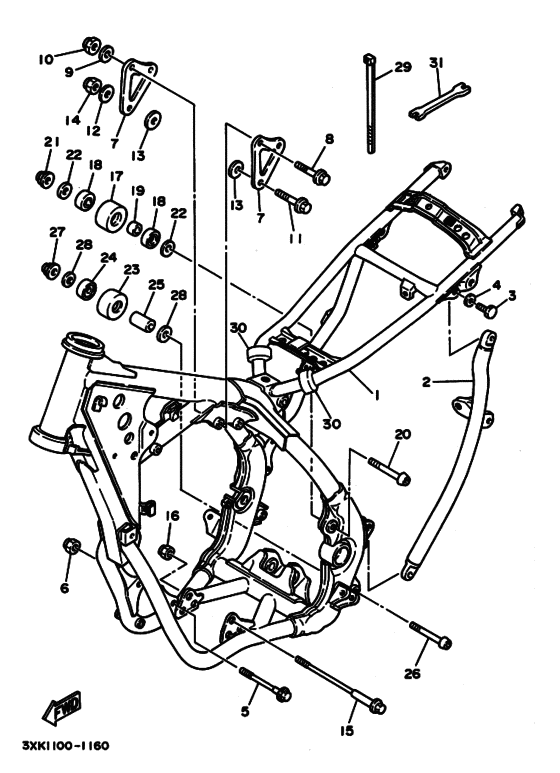

Frame Diagram Yamaha WR250 WR250Z
- Year
- 1992
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4DC2
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4DA-21110-00-UJ
Frame Comp
ＦＲＡＭＥ ＣＯＭＰ．; ＲＡＤＩＣＡＬ ＷＨＩＴＥ |
4DA-21110-00-UJ |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
ＦＲＡＭＥ ＣＯＭＰ．; ＲＡＤＩＣＡＬ ＷＨＩＴＥ |
999-99999-99-00 |
— | ||
|
2
|
2
3XK-21123-00-T9
Back, Stay Lh
ＢＡＣＫ， ＳＴＡＹ ＬＨ．; ＣＯＭＰＥＴＩＴＩＯＮ ＳＩＬＶＥＲ |
3XK-21123-00-T9 |
— | ||
|
3
|
3
90101-08461-00 BoltＢＯＬＴ; |
90101-08461-00 |
from US $1.65 |
||
|
4
|
4
90201-080E2-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-080E2-00 |
from US $1.28 |
||
|
5
|
5
90105-08592-00
Bolt, Flange
ＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-08592-00 |
— | ||
|
6
|
6
95611-08200-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95611-08200-00 |
from US $2.09 |
||
| replacement | |||||
|
6
|
6
901-85081-69-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
901-85081-69-00 |
from US $2.09 |
||
|
7
|
7
3SP-21425-00-00
Bracket, Rear Upper 1
ＢＲＡＣＫＥＴ， ＲＥＡＲ ＵＰＰＥＲ １; |
3SP-21425-00-00 |
— | ||
|
8
|
8
95811-08055-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95811-08055-00 |
from US $1.43 |
||
| replacement | |||||
|
8
|
8
95817-08055-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95817-08055-00 |
from US $1.22 |
||
|
9
|
9
90202-08022-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90202-08022-00 |
from US $2.90 |
||
|
10
|
10
95601-08200-00 Nut, UＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95601-08200-00 |
from US $2.09 |
||
| replacement | |||||
|
10
|
10
901-85081-69-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
901-85081-69-00 |
from US $2.09 |
||
|
11
|
11
91011-10055-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
91011-10055-00 |
from US $2.39 |
||
| replacement | |||||
|
11
|
11
95817-10055-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95817-10055-00 |
from US $2.39 |
||
|
12
|
12
92990-10200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-10200-00 |
from US $0.90 |
||
|
13
|
13
90201-101J1-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-101J1-00 |
from US $1.50 |
||
|
14
|
14
95601-10200-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95601-10200-00 |
from US $6.43 |
||
| replacement | |||||
|
14
|
14
90185-10170-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
90185-10170-00 |
from US $6.58 |
||
|
15
|
15
91011-10120-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
91011-10120-00 |
from US $3.74 |
||
| replacement | |||||
|
15
|
15
90105-10733-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
90105-10733-00 |
from US $1.82 |
||
|
16
|
16
95611-10200-00 Nut, U FlangeＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95611-10200-00 |
from US $2.75 |
||
| replacements | |||||
|
16
|
16
956-07102-00-00 Nut, U FlangeＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
956-07102-00-00 |
from US $5.02 |
||
|
16
|
16
956-17102-00-00
Nut, U Flange
ＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
956-17102-00-00 |
— | ||
|
17
|
17
3JD-22178-00-00 TensionerＴＥＮＳＩＯＮＥＲ; |
3JD-22178-00-00 |
US $26.44 |
||
|
18
|
18
93300-60804-00 BearingＢＥＡＲＩＮＧ; |
93300-60804-00 |
from US $17.95 |
||
|
19
|
19
90387-087K5-00 CollarＣＯＬＬＡＲ; |
90387-087K5-00 |
from US $1.06 |
||
|
20
|
20
92011-08070-00 Bolt,buttonＢＯＬＴ， ＢＵＴＴＯＮ ＨＥＡＤ; |
92011-08070-00 |
from US $5.83 |
||
| replacement | |||||
|
20
|
20
920-17080-70-00 Bolt, ButtonＢＯＬＴ， ＢＵＴＴＯＮ ＨＥＡＤ; |
920-17080-70-00 |
from US $5.83 |
||
|
21
|
21
95601-08200-00 Nut, UＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95601-08200-00 |
from US $2.09 |
||
| replacement | |||||
|
21
|
21
901-85081-69-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
901-85081-69-00 |
from US $2.09 |
||
|
22
|
22
90201-081A6-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-081A6-00 |
from US $1.65 |
||
| replacement | |||||
|
22
|
22
90201-086P8-00 Washer, Plate(3Xp)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-086P8-00 |
from US $1.65 |
||
|
23
|
23
3JD-22178-10-00 TensionerＴＥＮＳＩＯＮＥＲ; |
3JD-22178-10-00 |
from US $19.90 |
||
| replacement | |||||
|
23
|
23
3JD-22178-20-00 TensionerＴＥＮＳＩＯＮＥＲ; |
3JD-22178-20-00 |
from US $12.74 |
||
|
24
|
24
93300-60804-00 BearingＢＥＡＲＩＮＧ; |
93300-60804-00 |
from US $17.95 |
||
|
25
|
25
90387-086N4-00 CollarＣＯＬＬＡＲ; |
90387-086N4-00 |
from US $1.50 |
||
|
26
|
26
92011-08070-00 Bolt,buttonＢＯＬＴ， ＢＵＴＴＯＮ ＨＥＡＤ; |
92011-08070-00 |
from US $5.83 |
||
| replacement | |||||
|
26
|
26
920-17080-70-00 Bolt, ButtonＢＯＬＴ， ＢＵＴＴＯＮ ＨＥＡＤ; |
920-17080-70-00 |
from US $5.83 |
||
|
27
|
27
95601-08200-00 Nut, UＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95601-08200-00 |
from US $2.09 |
||
| replacement | |||||
|
27
|
27
901-85081-69-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
901-85081-69-00 |
from US $2.09 |
||
|
28
|
28
90201-081A6-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-081A6-00 |
from US $1.65 |
||
| replacement | |||||
|
28
|
28
90201-086P8-00 Washer, Plate(3Xp)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-086P8-00 |
from US $1.65 |
||
|
29
|
29
12R-82591-00-00
Band
ＢＡＮＤ; |
12R-82591-00-00 |
— | ||
| replacement | |||||
|
29
|
29
1UA-82591-00-00 BandＢＡＮＤ; |
1UA-82591-00-00 |
from US $1.13 |
||
|
30
|
30
3XJ-21717-00-00
Damper, Side Cover
ＤＡＭＰＥＲ， ＳＩＤＥ ＣＯＶＥＲ; |
3XJ-21717-00-00 |
— | ||
|
31
|
31
56A-28166-00-00
Wrench, Hexagon
ＷＲＥＮＣＨ， ＨＥＸＡＧＯＮ; |
56A-28166-00-00 |
— | ||
