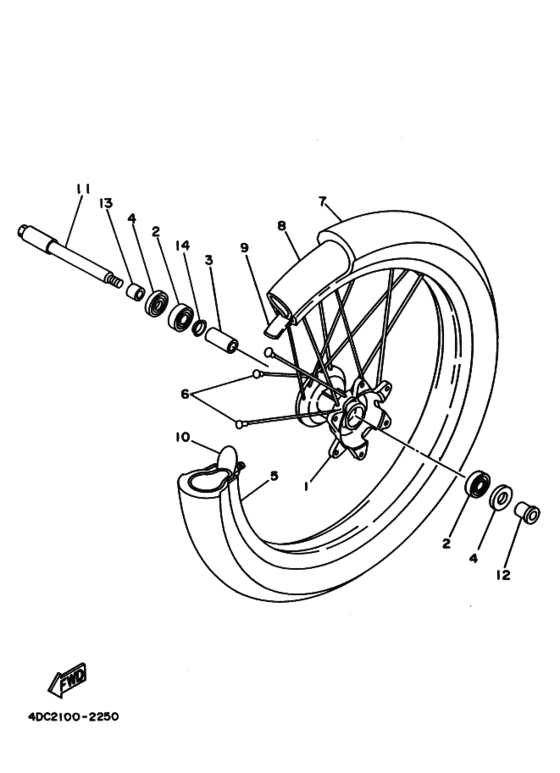

Front wheel Diagram Yamaha WR250 WR250Z
- Year
- 1992
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4DC2
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4DA-25111-00-00 Hub, FrontＨＵＢ， ＦＲＯＮＴ; |
4DA-25111-00-00 |
US $225.65 |
||
| replacement | |||||
|
1
|
1
4GV-25111-00-00 Hub, FrontＨＵＢ， ＦＲＯＮＴ; |
4GV-25111-00-00 |
US $225.65 |
||
|
2
|
2
93306-00316-00 BearingＢＥＡＲＩＮＧ; |
93306-00316-00 |
from US $21.60 |
||
|
3
|
3
90560-17379-00 SpacerＳＰＡＣＥＲ; |
90560-17379-00 |
US $22.86 |
||
|
4
|
4
93102-22445-00 Oil SealＯＩＬ ＳＥＡＬ; |
93102-22445-00 |
from US $5.24 |
||
| replacement | |||||
|
4
|
4
93106-22032-00 Oil SealＯＩＬ ＳＥＡＬ; |
93106-22032-00 |
from US $5.24 |
||
|
5
|
5
94416-21499-00
Rim 1.60 (1.60-21)
ＲＩＭ ; １．６０−２１ |
94416-21499-00 |
— | ||
|
6
|
6
4DA-25104-00-00
Spoke Set, Front
ＳＰＯＫＥ ＳＥＴ， ＦＲＯＮＴ; |
4DA-25104-00-00 |
— | ||
|
7
|
7
94108-217X8-00
Tire (80/100-21-Ed11)
ＴＩＲＥ ; ８０／１００−２１−ＥＤ１１; ＢＲＩＤＧＥＳＴＯＮＥ |
94108-217X8-00 |
— | ||
|
8
|
8
94209-21277-00
Tube (90/90-21 M/c Tr-4)
ＴＵＢＥ ; ＭＣＳ ９０／９０−２１ ＴＲ−４; ＢＲＩＤＧＥＳＴＯＮＥ |
94209-21277-00 |
— | ||
| replacement | |||||
|
8
|
8
94209-21229-00
301 Tube
ＴＵＢＥ ; ＭＣＳ ９０／９０−２１ ＴＲ−４; ＢＲＩＤＧＥＳＴＯＮＥ |
94209-21229-00 |
— | ||
|
9
|
9
94330-21084-00 Band, Rim (1.60-21)ＢＡＮＤ， ＲＩＭ ; ３．００−２１; ＢＲＩＤＧＥＳＴＯＮＥ |
94330-21084-00 |
from US $4.04 |
||
|
10
|
10
5X2-25394-00-00 Spacer, BeadＳＰＡＣＥＲ， ＢＥＡＤ; |
5X2-25394-00-00 |
from US $35.95 |
||
|
11
|
11
4DA-25181-00-00
Axle, Wheel
ＡＸＬＥ， ＷＨＥＥＬ; |
4DA-25181-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4JW-25181-00-00 Axle, WheelＡＸＬＥ， ＷＨＥＥＬ; |
4JW-25181-00-00 |
US $132.48 |
||
|
12
|
12
90387-173Y0-00 CollarＣＯＬＬＡＲ; |
90387-173Y0-00 |
from US $19.71 |
||
|
13
|
13
90387-172Y9-00
Collar
ＣＯＬＬＡＲ; |
90387-172Y9-00 |
— | ||
|
14
|
14
146-25116-00-00 Flange, Spacer 2ＦＬＡＮＧＥ， ＳＰＡＣＥＲ; |
146-25116-00-00 |
from US $4.19 |
||
