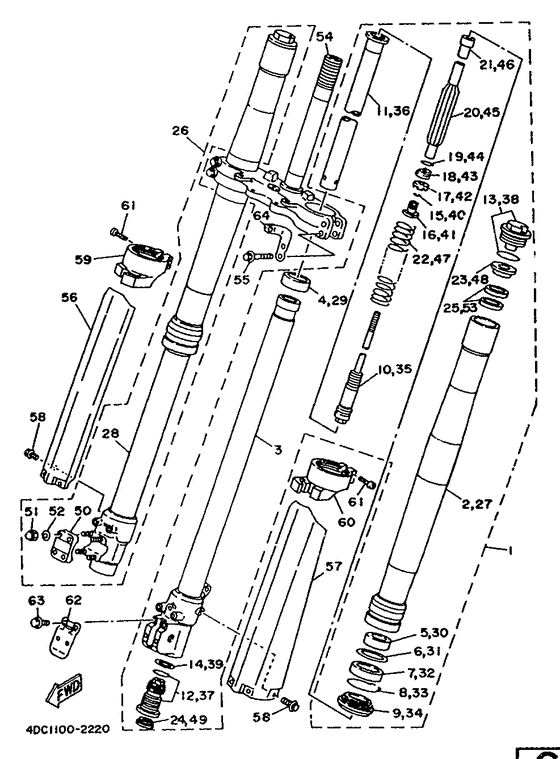

Front fork Diagram Yamaha WR250 WR250Z
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4DC3
- Sales region
- North America (999)
- Engine Capacity
- 250
- Model
- WR250Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4DA-23102-M0-00
Front Fork Assy (L.h)
Ur for japan |
4DA-23102-M0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur for japan |
999-99999-99-00 |
— | ||
|
01
|
01
4DC-23102-M0-00
Front Frk Assy (L.h) (L.h)
Ur |
4DC-23102-M0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
02
|
02
4DA-23136-L0-00
Tube, Outer 2 (Right)
|
4DA-23136-L0-00 |
— | ||
|
03
|
03
4DA-23120-L0-00
Inner Tube Comp. 2
|
4DA-23120-L0-00 |
— | ||
|
04
|
04
3XJ-23171-L0-00
Metal, Slide 2
|
3XJ-23171-L0-00 |
— | ||
| replacement | |||||
|
04
|
04
5EB-23171-00-00 Piston, Front Fork |
5EB-23171-00-00 |
from US $18.86 |
||
|
05
|
05
3XJ-23125-L0-00
Metal, Slide 1
|
3XJ-23125-L0-00 |
— | ||
| replacement | |||||
|
05
|
05
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $20.67 |
||
|
06
|
06
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
07
|
07
4DA-23145-L0-00
Oil Seal
|
4DA-23145-L0-00 |
— | ||
| replacements | |||||
|
07
|
07
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
07
|
07
4PU-23145-01-00 Oil Seal |
4PU-23145-01-00 |
from US $12.46 |
||
|
08
|
08
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $4.50 |
||
|
09
|
09
4DA-23144-L0-00 Seal, Dust |
4DA-23144-L0-00 |
from US $17.61 |
||
| replacement | |||||
|
09
|
09
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $11.12 |
||
|
10
|
10
4DA-2314A-L0-00 Piston Rod Assy |
4DA-2314A-L0-00 |
US $500.65 |
||
|
11
|
11
4DA-23170-L0-00 Cyldr Comp., Frtfkfront ForkUr |
4DA-23170-L0-00 |
US $533.99 |
||
|
12
|
12
4DA-2316A-M0-00
Valve Comp
Ur for japan |
4DA-2316A-M0-00 |
— | ||
| replacement | |||||
|
12
|
12
4DB-2316A-M0-00
Valve Comp
Ur for japan |
4DB-2316A-M0-00 |
— | ||
|
12
|
12
4DC-2316A-M0-00
Valve Comp
Ur |
4DC-2316A-M0-00 |
— | ||
|
13
|
13
4DA-23111-L0-00
Bolt, Cap
|
4DA-23111-L0-00 |
— | ||
|
14
|
14
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
15
|
15
3XJ-23153-L0-00 Ring, Snap |
3XJ-23153-L0-00 |
US $3.96 |
||
|
16
|
16
3XJ-23113-L0-00 Collar |
3XJ-23113-L0-00 |
US $32.83 |
||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
3XJ-23166-L0-00 Spacer, Oil Lock |
3XJ-23166-L0-00 |
US $16.45 |
||
|
18
|
18
3XJ-23778-L0-00 Nut |
3XJ-23778-L0-00 |
US $34.16 |
||
|
19
|
19
36Y-23147-10-00 O-Ring |
36Y-23147-10-00 |
US $6.98 |
||
|
20
|
20
3XJ-23142-L0-00
Seat, Spring Upper
|
3XJ-23142-L0-00 |
— | ||
|
21
|
21
4DA-23778-L0-00 Nut |
4DA-23778-L0-00 |
US $32.96 |
||
|
22
|
22
4DA-23141-L0-00
Spring, Frt Frk .39Front Fork
|
4DA-23141-L0-00 |
— | ||
|
23
|
23
3XJ-23143-L0-00 Seat, Spring Lower |
3XJ-23143-L0-00 |
US $16.97 |
||
|
24
|
24
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
25
|
25
3XJ-23364-L0-00
Collar 2
Except japan |
3XJ-23364-L0-00 |
— | ||
|
26
|
26
4DA-23103-M0-00
Front Fork Assy (R.h)
Ur for japan |
4DA-23103-M0-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
Ur for japan |
999-99999-99-00 |
— | ||
|
26
|
26
4DC-23103-M0-00
Front Frk Assy (R.h)
Ur |
4DC-23103-M0-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
27
|
27
4DA-23136-L0-00
Tube, Outer 2 (Right)
|
4DA-23136-L0-00 |
— | ||
|
28
|
28
4DA-23110-L0-00 Inner Tube Comp. 1 |
4DA-23110-L0-00 |
US $373.75 |
||
|
29
|
29
3XJ-23171-L0-00
Metal, Slide 2
|
3XJ-23171-L0-00 |
— | ||
| replacement | |||||
|
29
|
29
5EB-23171-00-00 Piston, Front Fork |
5EB-23171-00-00 |
from US $18.86 |
||
|
30
|
30
3XJ-23125-L0-00
Metal, Slide 1
|
3XJ-23125-L0-00 |
— | ||
| replacement | |||||
|
30
|
30
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $20.67 |
||
|
31
|
31
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
32
|
32
4DA-23145-L0-00
Oil Seal
|
4DA-23145-L0-00 |
— | ||
| replacements | |||||
|
32
|
32
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
32
|
32
4PU-23145-01-00 Oil Seal |
4PU-23145-01-00 |
from US $12.46 |
||
|
33
|
33
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $4.50 |
||
|
34
|
34
4DA-23144-L0-00 Seal, Dust |
4DA-23144-L0-00 |
from US $17.61 |
||
| replacement | |||||
|
34
|
34
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $11.12 |
||
|
35
|
35
4DA-2314A-L0-00 Piston Rod Assy |
4DA-2314A-L0-00 |
US $500.65 |
||
|
36
|
36
4DA-23170-L0-00 Cyldr Comp., Frtfkfront Fork |
4DA-23170-L0-00 |
US $533.99 |
||
|
37
|
37
4DA-2316A-M0-00
Valve Comp
Ur for japan |
4DA-2316A-M0-00 |
— | ||
| replacement | |||||
|
37
|
37
4DB-2316A-M0-00
Valve Comp
Ur for japan |
4DB-2316A-M0-00 |
— | ||
|
37
|
37
4DC-2316A-M0-00
Valve Comp
Ur |
4DC-2316A-M0-00 |
— | ||
|
38
|
38
4DA-23111-L0-00
Bolt, Cap
|
4DA-23111-L0-00 |
— | ||
|
39
|
39
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
40
|
40
3XJ-23153-L0-00 Ring, Snap |
3XJ-23153-L0-00 |
US $3.96 |
||
|
41
|
41
3XJ-23113-L0-00 Collar |
3XJ-23113-L0-00 |
US $32.83 |
||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
3XJ-23166-L0-00 Spacer, Oil Lock |
3XJ-23166-L0-00 |
US $16.45 |
||
|
43
|
43
3XJ-23778-L0-00 Nut |
3XJ-23778-L0-00 |
US $34.16 |
||
|
44
|
44
36Y-23147-10-00 O-Ring |
36Y-23147-10-00 |
US $6.98 |
||
|
45
|
45
3XJ-23142-L0-00
Seat, Spring Upper
|
3XJ-23142-L0-00 |
— | ||
|
46
|
46
4DA-23778-L0-00 Nut |
4DA-23778-L0-00 |
US $32.96 |
||
|
47
|
47
4DA-23141-L0-00
Spring, Frt Frk .39Front Fork
|
4DA-23141-L0-00 |
— | ||
|
48
|
48
3XJ-23143-L0-00 Seat, Spring Lower |
3XJ-23143-L0-00 |
US $16.97 |
||
|
49
|
49
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
50
|
50
4DA-23167-L0-00
Holder, Axle
|
4DA-23167-L0-00 |
— | ||
| replacement | |||||
|
50
|
50
4EW-23167-L0-00
Holder, Axle
|
4EW-23167-L0-00 |
— | ||
|
51
|
51
5Y3-23393-00-00 Nut, Special |
5Y3-23393-00-00 |
from US $7.08 |
||
|
52
|
52
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
52
|
52
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
53
|
53
3XJ-23364-L0-00
Collar 2
|
3XJ-23364-L0-00 |
— | ||
|
54
|
54
4DA-23340-L0-00 Under Bracket Comp |
4DA-23340-L0-00 |
US $599.51 |
||
|
55
|
55
95021-08040-00 Bolt, Flange (Small Head) |
95021-08040-00 |
from US $1.42 |
||
| replacement | |||||
|
55
|
55
95024-08040-00 Bolt, Flange |
95024-08040-00 |
from US $1.52 |
||
|
56
|
56
4DA-2314J-L0-00
Protecter Comp., 2
|
4DA-2314J-L0-00 |
— | ||
| replacement | |||||
|
56
|
56
4MX-2314J-L0-00
Protecter Comp., 2
|
4MX-2314J-L0-00 |
— | ||
|
57
|
57
4DA-2314H-L1-00
Protecter Comp., 1
|
4DA-2314H-L1-00 |
— | ||
| replacements | |||||
|
57
|
57
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
57
|
57
4MX-2314H-L1-00
Protecter Comp., 1
|
4MX-2314H-L1-00 |
— | ||
|
58
|
58
3SP-23356-L0-00 Bolt 2 |
3SP-23356-L0-00 |
from US $2.91 |
||
|
59
|
59
4DA-2314G-L0-00 Protecter Guide Comp., 2 |
4DA-2314G-L0-00 |
from US $35.28 |
||
| replacement | |||||
|
59
|
59
4MX-2314G-L0-00 Protecter Guide Comp., 2 |
4MX-2314G-L0-00 |
from US $34.61 |
||
|
60
|
60
4DA-2314F-L0-00 Protecter Guide Comp., 1 |
4DA-2314F-L0-00 |
from US $35.28 |
||
| replacement | |||||
|
60
|
60
4MX-2314F-L0-00 Protecter Guide Comp., 1 |
4MX-2314F-L0-00 |
from US $38.68 |
||
|
61
|
61
4V4-23194-L0-00 Screw, Pan Head |
4V4-23194-L0-00 |
US $1.21 |
||
| replacement | |||||
|
61
|
61
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
62
|
62
3SP-2314E-L0-00
Cover, Hose
|
3SP-2314E-L0-00 |
— | ||
|
63
|
63
4DA-23346-L0-00 Bolt, Flange |
4DA-23346-L0-00 |
from US $2.83 |
||
| replacement | |||||
|
63
|
63
95024-06008-00 Bolt, Flange |
95024-06008-00 |
from US $2.83 |
||
|
64
|
64
4EW-2331E-L0-00 Guide, Cable |
4EW-2331E-L0-00 |
from US $18.47 |
||
| replacement | |||||
|
64
|
64
4EW-2331E-L1-00 Guide, Cable |
4EW-2331E-L1-00 |
from US $27.77 |
||
