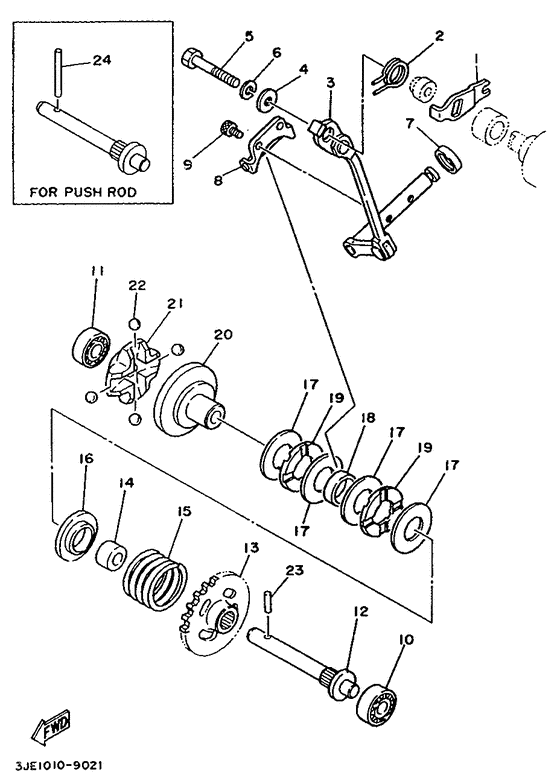

Governor Diagram Yamaha WR250 WR250Z
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4DC3
- Sales region
- North America (999)
- Engine Capacity
- 250
- Model
- WR250Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3JE-11931-00-00
Lever
|
3JE-11931-00-00 |
— | ||
| replacement | |||||
|
01
|
01
3JE-11931-01-00 Lever |
3JE-11931-01-00 |
from US $26.33 |
||
|
02
|
02
90508-14783-00 Spring, Torsion |
90508-14783-00 |
from US $5.38 |
||
|
03
|
03
3SP-11990-00-00
Push Rod Assembly
|
3SP-11990-00-00 |
— | ||
|
04
|
04
90201-057H5-00 Washer, Plate |
90201-057H5-00 |
from US $1.81 |
||
|
05
|
05
97021-05030-00 Bolt |
97021-05030-00 |
from US $3.68 |
||
| replacement | |||||
|
05
|
05
97017-05030-00 Bolt |
97017-05030-00 |
from US $3.68 |
||
|
06
|
06
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
07
|
07
93104-08040-00 Oil Seal |
93104-08040-00 |
from US $6.80 |
||
|
08
|
08
3JE-11922-00-00 Fork, Governor |
3JE-11922-00-00 |
from US $21.39 |
||
| replacement | |||||
|
08
|
08
3JE-11922-01-00 Fork, Governor |
3JE-11922-01-00 |
from US $21.39 |
||
|
09
|
09
91316-04006-00 Bolt |
91316-04006-00 |
from US $2.13 |
||
| replacement | |||||
|
09
|
09
91317-04006-00 Bolt |
91317-04006-00 |
from US $2.13 |
||
|
10
|
10
93300-60814-00 Bearing(1Lx)Nmb |
93300-60814-00 |
from US $12.89 |
||
|
11
|
11
93300-60814-00 Bearing(1Lx)Nmb |
93300-60814-00 |
from US $12.89 |
||
|
12
|
12
5X4-11921-01-00 Shaft, Governor |
5X4-11921-01-00 |
from US $33.58 |
||
| replacement | |||||
|
12
|
12
5X4-11921-02-00 Shaft, Governor |
5X4-11921-02-00 |
from US $33.58 |
||
|
13
|
13
24X-11953-01-00
Gear, Governor
|
24X-11953-01-00 |
— | ||
|
14
|
14
90560-08213-00 Spacer |
90560-08213-00 |
from US $3.26 |
||
|
15
|
15
90501-240F4-00 Spring,compression |
90501-240F4-00 |
US $5.89 |
||
|
16
|
16
5X4-11952-00-00 Plate |
5X4-11952-00-00 |
US $15.89 |
||
|
17
|
17
90201-154E9-00 Washer, Plate (5G3) |
90201-154E9-00 |
from US $2.77 |
||
|
18
|
18
90387-152F2-00 Collar |
90387-152F2-00 |
from US $3.26 |
||
|
19
|
19
93340-21505-00 Bearing |
93340-21505-00 |
from US $10.10 |
||
|
20
|
20
5X5-11912-01-00 Retainer, Weight |
5X5-11912-01-00 |
US $67.03 |
||
|
21
|
21
5X5-11911-01-00 Retainer |
5X5-11911-01-00 |
US $70.33 |
||
|
22
|
22
93521-64032-00 Ball |
93521-64032-00 |
from US $4.68 |
||
|
23
|
23
93603-14179-00 Pin, Dowel |
93603-14179-00 |
from US $2.99 |
||
|
24
|
24
93604-29184-00 Pin, DowelAp for push rod |
93604-29184-00 |
from US $1.84 |
||
