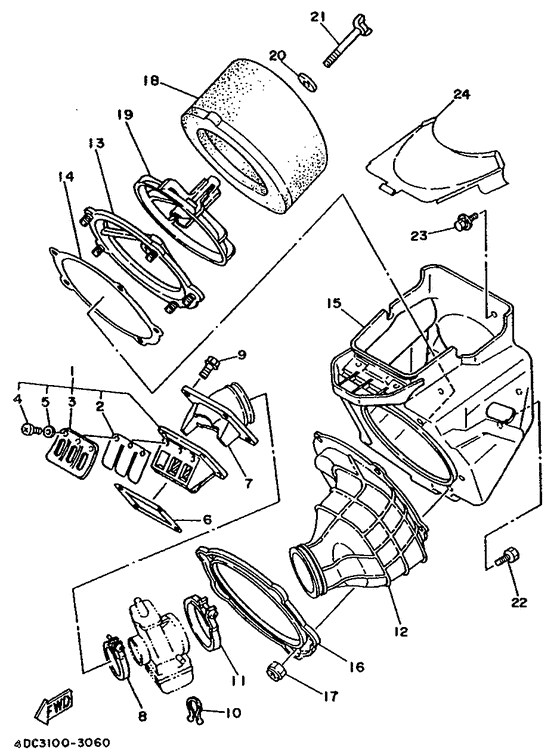

Intake Diagram Yamaha WR250 WR250Z
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4DC3
- Sales region
- North America (999)
- Engine Capacity
- 250
- Model
- WR250Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4DC-13610-00-00
Reed Valve Assy
|
4DC-13610-00-00 |
— | ||
|
02
|
02
3SP-13613-00-00 Reed, Valve |
3SP-13613-00-00 |
from US $22.03 |
||
| replacement | |||||
|
02
|
02
3SP-13613-01-00 Reed, Valve |
3SP-13613-01-00 |
from US $27.19 |
||
|
03
|
03
4DA-13616-00-00 Stopper, Reed Valve |
4DA-13616-00-00 |
from US $7.79 |
||
| replacement | |||||
|
03
|
03
8DJ-13616-00-00 Stopper, Reed Valve |
8DJ-13616-00-00 |
from US $7.79 |
||
|
04
|
04
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
05
|
05
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
06
|
06
2K7-13621-10-00 Gasket, Valve Seat |
2K7-13621-10-00 |
from US $15.02 |
||
|
07
|
07
4DC-13565-00-00 Joint, Carburetor |
4DC-13565-00-00 |
US $117.83 |
||
|
08
|
08
904-60511-09-00
Clamp, Hose
|
904-60511-09-00 |
— | ||
|
09
|
09
95023-06020-00 Bolt, Flg.(Small Head) |
95023-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
09
|
09
95024-06020-00 Bolt, Flange (Small Head) |
95024-06020-00 |
from US $1.66 |
||
|
10
|
10
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
11
|
11
90460-68230-00 Clamp, Hose (29L) |
90460-68230-00 |
from US $5.40 |
||
|
12
|
12
4AA-14453-00-00
Joint, Air Clnr 1
|
4AA-14453-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
3JD-14459-00-00 Holder, Guide |
3JD-14459-00-00 |
from US $36.42 |
||
| replacement | |||||
|
13
|
13
3JD-14459-01-00 Holder, Guide |
3JD-14459-01-00 |
US $55.15 |
||
|
14
|
14
3JL-14462-00-00
Seal
|
3JL-14462-00-00 |
— | ||
|
15
|
15
1XJ-W1441-01-00
Air Cleaner Case Comp
|
1XJ-W1441-01-00 |
— | ||
|
16
|
16
3JD-14477-00-00 Plate |
3JD-14477-00-00 |
US $67.46 |
||
| replacement | |||||
|
16
|
16
5MV-14477-00-00
Plate
|
5MV-14477-00-00 |
— | ||
|
17
|
17
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
17
|
17
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
18
|
18
3JD-14451-00-00
Element, Air Cleaner
|
3JD-14451-00-00 |
— | ||
| replacement | |||||
|
18
|
18
3JD-14451-01-00 Element, Air Cleaner |
3JD-14451-01-00 |
US $36.40 |
||
|
19
|
19
3JD-14458-00-00
Guide
|
3JD-14458-00-00 |
— | ||
| replacement | |||||
|
19
|
19
3JD-14458-01-00 Guide |
3JD-14458-01-00 |
from US $20.12 |
||
|
20
|
20
90209-06096-00 Washer |
90209-06096-00 |
from US $1.84 |
||
|
21
|
21
90122-06035-00 Bolt, Wing |
90122-06035-00 |
from US $6.52 |
||
| replacement | |||||
|
21
|
21
90122-06005-00 Bolt, Wing |
90122-06005-00 |
from US $6.52 |
||
|
22
|
22
95023-06010-00 Bolt, Flange (Small Head) |
95023-06010-00 |
US $1.56 |
||
| replacement | |||||
|
22
|
22
95024-06010-00 Bolt, Flange (Small Head) |
95024-06010-00 |
from US $1.56 |
||
|
23
|
23
90119-06185-00 Bolt, With Washer |
90119-06185-00 |
from US $2.27 |
||
|
24
|
24
3XJ-1441A-00-00
Cover, Case
Ap for air cleaner cover |
3XJ-1441A-00-00 |
— | ||
