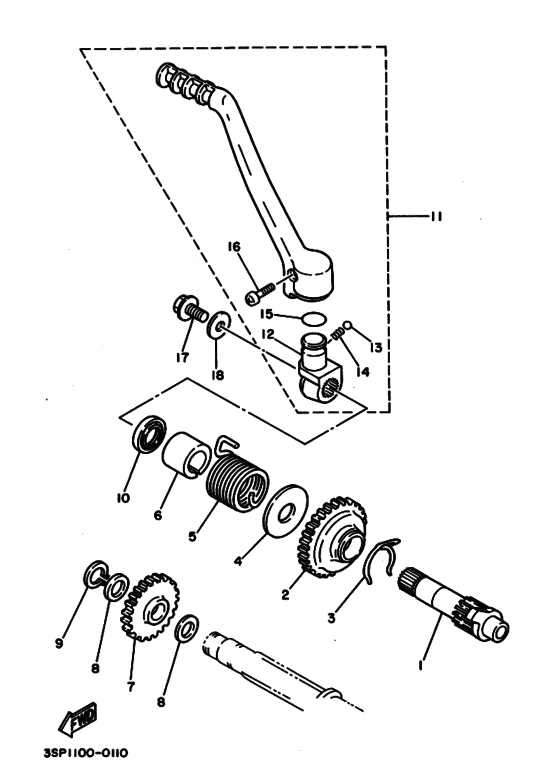

Starter Diagram Yamaha WR250 WR250Z
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4DC4
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2VM-15661-00-00
Kick Axle Assembly
ＡＸＬＥ， ＫＩＣＫ; |
2VM-15661-00-00 |
— | ||
| replacement | |||||
|
1
|
1
4JW-15660-00-00
Kick Axle Assembly
ＡＸＬＥ， ＫＩＣＫ; |
4JW-15660-00-00 |
— | ||
|
2
|
2
3R4-15641-00-00 Gear, KickＧＥＡＲ， ＫＩＣＫ ; ２６Ｔ |
3R4-15641-00-00 |
US $117.83 |
||
|
3
|
3
90468-26048-00 ClipＣＬＩＰ; |
90468-26048-00 |
from US $1.94 |
||
|
4
|
4
90201-20358-00
Washer, Plate
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-20358-00 |
— | ||
|
5
|
5
90508-30743-00 Spring, TorsionＳＰＲＩＮＧ， ＴＯＲＳＩＯＮ; |
90508-30743-00 |
from US $8.93 |
||
|
6
|
6
2VM-15664-00-00
Guide, Spring
ＧＵＩＤＥ， ＳＰＲＩＮＧ; |
2VM-15664-00-00 |
— | ||
|
7
|
7
38V-15651-00-00
Gear, Kick Idle (23T)
ＧＥＡＲ， ＫＩＣＫ ＩＤＬＥ ; ２３Ｔ |
38V-15651-00-00 |
— | ||
|
8
|
8
90201-17545-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-17545-00 |
from US $3.26 |
||
|
9
|
9
99009-17400-00 CirclipＣＩＲＣＬＩＰ; |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
93410-17X00-00 CirclipＣＩＲＣＬＩＰ; |
93410-17X00-00 |
US $1.50 |
||
|
10
|
10
931-02203-09-00 Oil Seal (25Y)ＯＩＬ ＳＥＡＬ; |
931-02203-09-00 |
from US $10.69 |
||
|
11
|
11
3SP-15620-01-00 Kick Crank AssemblyＫＩＣＫ ＣＲＡＮＫ ＡＳＳＹ; |
3SP-15620-01-00 |
from US $227.95 |
||
| replacement | |||||
|
11
|
11
4JW-15620-00-00 Kick Crank AssemblyＫＩＣＫ ＣＲＡＮＫ ＡＳＳＹ; |
4JW-15620-00-00 |
from US $250.07 |
||
|
12
|
12
3SP-15621-01-00 Boss, Kick Crank．ＢＯＳＳ， ＫＩＣＫ ＣＲＡＮＫ; |
3SP-15621-01-00 |
US $49.19 |
||
| replacement | |||||
|
12
|
12
3SP-15621-02-00 Boss, Kick Crank．ＢＯＳＳ， ＫＩＣＫ ＣＲＡＮＫ; |
3SP-15621-02-00 |
US $49.19 |
||
|
13
|
13
93501-04011-00 Ball．ＢＡＬＬ; |
93501-04011-00 |
from US $1.70 |
||
|
14
|
14
90501-13720-00 Spring, Compression．ＳＰＲＩＮＧ， ＣＯＭＰＲＥＳＳＩＯＮ; |
90501-13720-00 |
from US $2.55 |
||
|
15
|
15
93210-19216-00 O-Ring．Ｏ−ＲＩＮＧ; |
93210-19216-00 |
from US $1.84 |
||
|
16
|
16
90157-06048-00 Screw, Countersunk．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
90157-06048-00 |
from US $2.27 |
||
| replacement | |||||
|
16
|
16
90152-06010-00 Screw, Countersunk (5Y1)．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
90152-06010-00 |
from US $2.27 |
||
|
17
|
17
95023-08020-00 Bolt, FlangeＢＯＬＴ; |
95023-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
95024-08020-00 Bolt, Flange (Small Head)ＢＯＬＴ; |
95024-08020-00 |
from US $1.18 |
||
|
18
|
18
90201-087A9-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-087A9-00 |
from US $4.68 |
||
