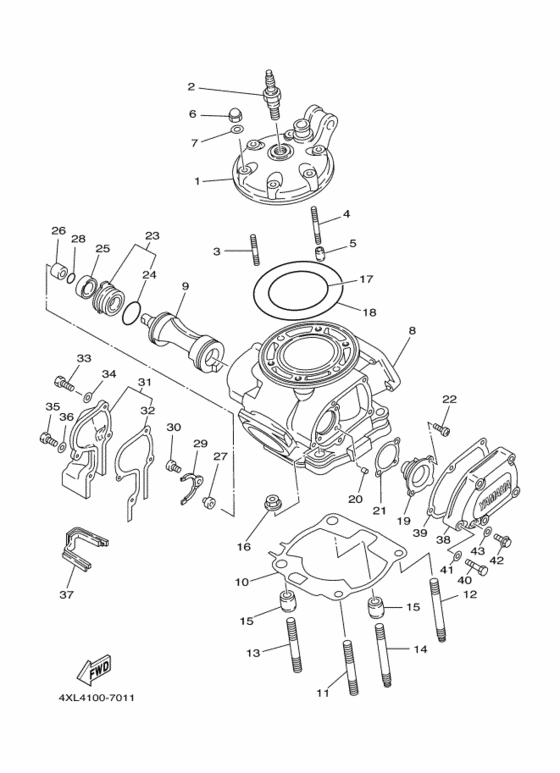

Cylinder head Diagram Yamaha WR250 WR250Z
- Year
- 1998
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5EN1
- Sales region
- Europe (100)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5DJ-11111-00-00
Head, Cylinder 1
|
5DJ-11111-00-00 |
— | ||
|
2
|
2
94702-00326-00 Br8Eg Ngk Splug 4P |
94702-00326-00 |
from US $8.48 |
||
| replacement | |||||
|
2
|
2
BR8-EG000-00-00 32cc SGL DOME 760/12 |
BR8-EG000-00-00 |
US $37 |
||
|
3
|
3
90116-08394-00 Bolt, Stud |
90116-08394-00 |
from US $1.81 |
||
|
4
|
4
90116-08392-00 Bolt, Stud (5X4) |
90116-08392-00 |
from US $6.80 |
||
|
5
|
5
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
6
|
6
90176-08026-00 Nut, Crown |
90176-08026-00 |
from US $1.28 |
||
|
7
|
7
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.52 |
||
|
8
|
8
4XL-11311-10-00
Cylinder 1
|
4XL-11311-10-00 |
— | ||
| replacement | |||||
|
8
|
8
4XL-11311-20-00
Cylinder 1
|
4XL-11311-20-00 |
— | ||
|
9
|
9
4XL-1131A-10-00
Valve 1
|
4XL-1131A-10-00 |
— | ||
|
10
|
10
4XL-11351-01-00 Gasket, Cylinder |
4XL-11351-01-00 |
from US $22.39 |
||
|
11
|
11
90116-10314-00 Bolt, Stud |
90116-10314-00 |
from US $5.85 |
||
|
12
|
12
90116-10547-00
Bolt, Stud
|
90116-10547-00 |
— | ||
|
13
|
13
90116-10314-00 Bolt, Stud |
90116-10314-00 |
from US $5.85 |
||
|
14
|
14
90116-10547-00
Bolt, Stud
|
90116-10547-00 |
— | ||
|
15
|
15
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
|
16
|
16
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.39 |
||
| replacement | |||||
|
16
|
16
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
17
|
17
93210-77363-00 O-Ring |
93210-77363-00 |
from US $6.38 |
||
|
18
|
18
93211-11770-00 O-Ring |
93211-11770-00 |
from US $9.35 |
||
|
19
|
19
3JE-Y113E-00-00 Holder 1 |
3JE-Y113E-00-00 |
from US $95.61 |
||
|
20
|
20
93604-08071-00 Pin, Dowel |
93604-08071-00 |
from US $1.45 |
||
|
21
|
21
3JE-1131N-10-00 Gasket, Holder |
3JE-1131N-10-00 |
from US $7.37 |
||
|
22
|
22
985-07050-12-00
Screw, Pan Head
|
985-07050-12-00 |
— | ||
| replacement | |||||
|
22
|
22
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
23
|
23
5X4-Y113F-10-00 Holder 2 AssemblyASSY |
5X4-Y113F-10-00 |
from US $89.23 |
||
|
24
|
24
93210-270A8-00 O-Ring |
93210-270A8-00 |
from US $8.36 |
||
|
25
|
25
93104-16074-00 Oil Seal |
93104-16074-00 |
from US $14.71 |
||
|
26
|
26
90387-102W0-00 Collar |
90387-102W0-00 |
from US $12.18 |
||
|
27
|
27
3JE-11937-01-00 Boss, Lever |
3JE-11937-01-00 |
from US $16.58 |
||
|
28
|
28
93210-09192-00 O-Ring |
93210-09192-00 |
from US $4.68 |
||
|
29
|
29
1LX-11915-00-00 Plate, Thrust 1 |
1LX-11915-00-00 |
from US $26.07 |
||
|
30
|
30
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
31
|
31
3SP-11992-11-00 Housing 2 |
3SP-11992-11-00 |
US $135.52 |
||
|
32
|
32
3SP-11993-10-00 Gasket |
3SP-11993-10-00 |
from US $7.08 |
||
|
33
|
33
97007-05020-00 Bolt |
97007-05020-00 |
from US $1.42 |
||
| replacements | |||||
|
33
|
33
90101-05396-00 Bolt (2E9) |
90101-05396-00 |
from US $1.70 |
||
|
33
|
33
970-27050-20-00
Bolt
|
970-27050-20-00 |
— | ||
|
34
|
34
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
35
|
35
97007-05016-00 Bolt, Hex. Head |
97007-05016-00 |
from US $2.41 |
||
| replacement | |||||
|
35
|
35
97017-05016-00 Bolt, Hex. Head |
97017-05016-00 |
from US $2.41 |
||
|
36
|
36
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
37
|
37
2VM-11995-01-00 Seal, Housing |
2VM-11995-01-00 |
from US $30.04 |
||
|
38
|
38
4MX-1131M-00-00
Cover
|
4MX-1131M-00-00 |
— | ||
|
39
|
39
4MX-11354-00-00 Gasket |
4MX-11354-00-00 |
from US $9.44 |
||
|
40
|
40
97017-05030-00 Bolt |
97017-05030-00 |
from US $3.68 |
||
|
41
|
41
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
42
|
42
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.52 |
||
|
43
|
43
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
