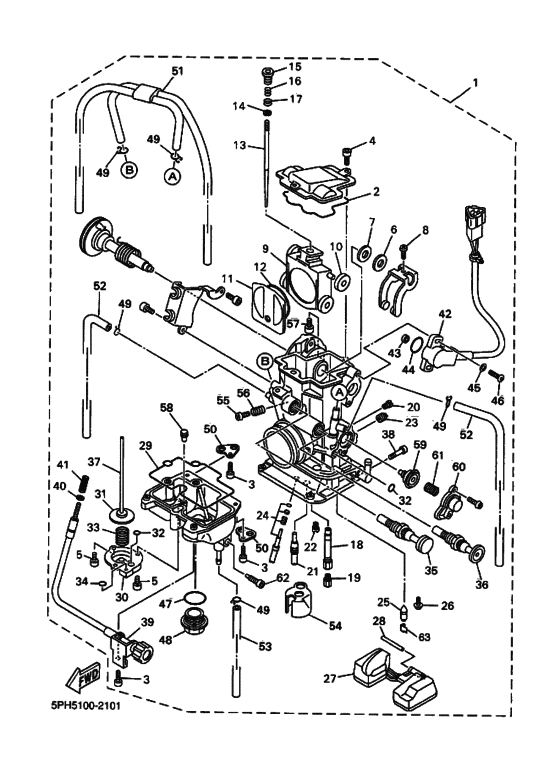

Carburetor Diagram Yamaha WR250 WR250F
- Year
- 2001
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5PH2
- Sales region
- Europe (060)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5PH-14101-10-00
Carburetor Assy 1
|
5PH-14101-10-00 |
— | ||
|
2
|
2
5JG-14959-00-00 Gasket |
5JG-14959-00-00 |
from US $13.45 |
||
|
3
|
3
91316-04012-00 Bolt |
91316-04012-00 |
from US $1.21 |
||
| replacement | |||||
|
3
|
3
913-17040-12-00 Bolt, Socket |
913-17040-12-00 |
from US $1.21 |
||
|
4
|
4
91316-04012-00 Bolt |
91316-04012-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
913-17040-12-00 Bolt, Socket |
913-17040-12-00 |
from US $1.21 |
||
|
5
|
5
91316-04008-00 Bolt |
91316-04008-00 |
from US $1.21 |
||
| replacement | |||||
|
5
|
5
91317-04008-00 Bolt,socket |
91317-04008-00 |
from US $1.21 |
||
|
6
|
6
90202-08045-00 Washer, Plate |
90202-08045-00 |
from US $2.41 |
||
|
7
|
7
5JG-14951-00-00 Washer |
5JG-14951-00-00 |
from US $2.55 |
||
|
8
|
8
5JG-14522-00-00 Screw, Adjust |
5JG-14522-00-00 |
from US $4.53 |
||
| replacement | |||||
|
8
|
8
5JG-14522-09-00 Screw, Adjust |
5JG-14522-09-00 |
from US $4.53 |
||
|
9
|
9
5JG-14388-00-00 Valve, Vacuum Control |
5JG-14388-00-00 |
from US $367.80 |
||
|
10
|
10
3TJ-14267-40-00 Roller |
3TJ-14267-40-00 |
from US $17.39 |
||
|
11
|
11
5JG-14546-01-00 Valve, Needle |
5JG-14546-01-00 |
from US $223.82 |
||
|
12
|
12
4FN-14997-00-00 Seal |
4FN-14997-00-00 |
from US $19.88 |
||
|
13
|
13
5NL-14916-GP-00 NeedleSTD |
5NL-14916-GP-00 |
US $12.92 |
||
|
13
|
13
5NL-14916-GL-00
Needle (#obegl)
AP |
5NL-14916-GL-00 |
— | ||
|
13
|
13
5NL-14916-GM-00
Needle (#obegm)
AP |
5NL-14916-GM-00 |
— | ||
|
13
|
13
5NL-14916-GN-00
Needle (#obegn)
AP |
5NL-14916-GN-00 |
— | ||
|
13
|
13
5NL-14916-G1-00
Needle (#obegq)
AP |
5NL-14916-G1-00 |
— | ||
|
13
|
13
5NL-14916-GR-00
Needle (#obegr)
AP |
5NL-14916-GR-00 |
— | ||
|
13
|
13
5NL-14916-GS-00
Needle (#obegs)
AP |
5NL-14916-GS-00 |
— | ||
|
14
|
14
3TJ-14159-40-00 Clip |
3TJ-14159-40-00 |
from US $2.69 |
||
|
15
|
15
5JG-14521-00-00 Screw, Adjust |
5JG-14521-00-00 |
from US $10.06 |
||
|
16
|
16
5JG-14275-00-00 Spring |
5JG-14275-00-00 |
from US $3.26 |
||
|
17
|
17
5JG-14264-00-00 Collar |
5JG-14264-00-00 |
from US $5.81 |
||
|
18
|
18
5JG-14947-00-00 Nozzle, Main |
5JG-14947-00-00 |
from US $31.74 |
||
|
19
|
19
4MX-14943-41-00 Jet, Main (#170)STD |
4MX-14943-41-00 |
from US $12.60 |
||
|
19
|
19
4MX-14943-39-00 Jet, Main (#160)AP |
4MX-14943-39-00 |
from US $12.26 |
||
|
19
|
19
4MX-14943-90-00 Jet, Main (#162)AP |
4MX-14943-90-00 |
from US $12.11 |
||
|
19
|
19
4MX-14943-40-00 Jet, Main (#165)AP |
4MX-14943-40-00 |
from US $12.29 |
||
|
19
|
19
4MX-14943-91-00 Jet, Main (#168)AP |
4MX-14943-91-00 |
from US $12.29 |
||
|
19
|
19
4MX-14943-92-00 Jet, Main (#172)AP |
4MX-14943-92-00 |
from US $12.29 |
||
|
19
|
19
4MX-14943-42-00 Jet, Main (#175)AP |
4MX-14943-42-00 |
from US $12.29 |
||
|
19
|
19
4MX-14943-93-00 Jet, Main (#178)AP |
4MX-14943-93-00 |
from US $12.29 |
||
|
19
|
19
4MX-14943-43-00 Jet, Main (#180)AP |
4MX-14943-43-00 |
from US $12.29 |
||
|
19
|
19
4MX-14943-94-00 Jet, Main (#182)AP |
4MX-14943-94-00 |
from US $12.29 |
||
|
19
|
19
4MX-14943-44-00 Jet, Main (#185)AP |
4MX-14943-44-00 |
from US $11.72 |
||
|
20
|
20
3TJ-14943-47-00 Jet (#200) |
3TJ-14943-47-00 |
from US $16.24 |
||
|
21
|
21
4MX-14948-04-00 Jet, Slow (#42)STD |
4MX-14948-04-00 |
from US $10.15 |
||
|
21
|
21
4MX-14948-01-00 Jet, Slow (#35)AP |
4MX-14948-01-00 |
from US $18.07 |
||
|
21
|
21
4MX-14948-02-00 Jet, Slow (#38)AP |
4MX-14948-02-00 |
from US $15.87 |
||
|
21
|
21
4MX-14948-03-00 Jet (#40)AP |
4MX-14948-03-00 |
from US $17.48 |
||
|
21
|
21
4MX-14948-05-00 Jet, Slow (#45)AP |
4MX-14948-05-00 |
from US $10.15 |
||
|
21
|
21
4MX-14948-06-00 Jet, Slow (#48)AP |
4MX-14948-06-00 |
from US $10.15 |
||
|
21
|
21
4MX-14948-07-00 Jet, Slow (#50)AP |
4MX-14948-07-00 |
from US $10.15 |
||
|
22
|
22
3TJ-1494F-16-00 Jet (#72)STD |
3TJ-1494F-16-00 |
from US $18.07 |
||
|
22
|
22
3TJ-1494F-12-00 Jet (#62)AP |
3TJ-1494F-12-00 |
from US $18.14 |
||
|
22
|
22
3TJ-1494F-13-00 Jet (#65)AP |
3TJ-1494F-13-00 |
from US $12.92 |
||
|
22
|
22
3TJ-1494F-14-00 Jet (#68)AP |
3TJ-1494F-14-00 |
from US $9.54 |
||
|
22
|
22
3TJ-1494F-15-00 Jet (#70)AP |
3TJ-1494F-15-00 |
from US $18.07 |
||
|
22
|
22
3TJ-1494F-17-00 Jet (#75)AP |
3TJ-1494F-17-00 |
from US $18.07 |
||
|
22
|
22
3TJ-1494F-18-00 Jet (#78)AP |
3TJ-1494F-18-00 |
from US $15.98 |
||
|
22
|
22
3TJ-1494F-19-00 Jet (#80)AP |
3TJ-1494F-19-00 |
from US $15.64 |
||
|
22
|
22
3TJ-1494F-20-00 Jet (#82)AP |
3TJ-1494F-20-00 |
from US $19.71 |
||
|
23
|
23
7A9-14943-17-00 Jet (#75) |
7A9-14943-17-00 |
from US $12.33 |
||
|
24
|
24
5NL-14105-00-00 Pilot Screw Set |
5NL-14105-00-00 |
from US $35.92 |
||
|
25
|
25
4MX-14392-00-00 Valve, Needle |
4MX-14392-00-00 |
from US $37.99 |
||
|
26
|
26
5BE-14216-00-00 Screw |
5BE-14216-00-00 |
US $8.15 |
||
|
27
|
27
4SR-14985-00-00 Float |
4SR-14985-00-00 |
from US $46.56 |
||
|
28
|
28
676-14548-00-00 Pin, Float Arm |
676-14548-00-00 |
US $1.98 |
||
| replacement | |||||
|
28
|
28
663-14548-00-00 Pin, Float Arm |
663-14548-00-00 |
from US $7.08 |
||
|
29
|
29
5JG-14984-00-00 Gasket, Float Chamber |
5JG-14984-00-00 |
from US $22.22 |
||
|
30
|
30
3TJ-14293-40-00 Cover 1 |
3TJ-14293-40-00 |
from US $38.55 |
||
|
31
|
31
5JG-14940-75-00 Diaphragm AssySTD |
5JG-14940-75-00 |
from US $38.82 |
||
| replacement | |||||
|
31
|
31
5JG-14940-76-00 Diaphragm, Acc Pump (Dph#30)STD |
5JG-14940-76-00 |
from US $38.82 |
||
|
31
|
31
5JG-14940-06-00 Diaphragm AssyAP |
5JG-14940-06-00 |
from US $38.82 |
||
| replacement | |||||
|
31
|
31
5JG-14940-16-00 Diaphragm, Acc Pump (Dph#45)AP |
5JG-14940-16-00 |
from US $38.82 |
||
|
31
|
31
5JG-14940-07-00 Diaphragm AssyAP |
5JG-14940-07-00 |
from US $38.82 |
||
| replacement | |||||
|
31
|
31
5JG-14940-17-00 Diaphragm, Acc Pump (Dph#35)AP |
5JG-14940-17-00 |
from US $38.82 |
||
|
31
|
31
5JG-14940-08-00 Diaphragm AssyAP |
5JG-14940-08-00 |
from US $38.82 |
||
| replacement | |||||
|
31
|
31
5JG-14940-18-00 Diaphragm, Acc Pump (Dph#25)AP |
5JG-14940-18-00 |
from US $44.16 |
||
|
32
|
32
3TJ-14536-40-00 Gasket |
3TJ-14536-40-00 |
from US $2.50 |
||
|
33
|
33
3TJ-14933-40-00 Spring, Diaphragm |
3TJ-14933-40-00 |
from US $3.60 |
||
|
34
|
34
6H4-14561-00-00 O-Ring |
6H4-14561-00-00 |
from US $4.43 |
||
|
35
|
35
5JG-14171-00-00 Plunger, Starter |
5JG-14171-00-00 |
from US $38.54 |
||
|
36
|
36
5JG-14371-00-00 Plunger, Starter |
5JG-14371-00-00 |
from US $30.32 |
||
|
37
|
37
5JG-14379-00-00 Rod, Starter |
5JG-14379-00-00 |
from US $14.31 |
||
|
38
|
38
3TJ-14325-40-00 Screw, Pan Head |
3TJ-14325-40-00 |
from US $7.18 |
||
|
39
|
39
5JG-14922-00-00 Screw, Throttle |
5JG-14922-00-00 |
from US $85.80 |
||
|
40
|
40
90201-08410-00 Washer, Plate |
90201-08410-00 |
from US $2.13 |
||
|
41
|
41
4FN-14934-00-00 Spring, Throttle Stop |
4FN-14934-00-00 |
US $3.17 |
||
|
42
|
42
5JG-85885-00-00
Throttle Sensor Assy
|
5JG-85885-00-00 |
— | ||
|
43
|
43
5BE-14449-00-00 Collar |
5BE-14449-00-00 |
from US $7.08 |
||
| replacement | |||||
|
43
|
43
4TV-14534-00-00 Collar |
4TV-14534-00-00 |
from US $7.90 |
||
|
44
|
44
5BE-14562-00-00 O-Ring |
5BE-14562-00-00 |
from US $3.02 |
||
| replacement | |||||
|
44
|
44
4TV-14562-00-00 O-Ring |
4TV-14562-00-00 |
from US $4.03 |
||
|
45
|
45
4YR-14557-00-00 Washer |
4YR-14557-00-00 |
from US $1.07 |
||
| replacement | |||||
|
45
|
45
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
46
|
46
4YR-14216-00-00 Screw, Pan Head |
4YR-14216-00-00 |
US $1.21 |
||
| replacement | |||||
|
46
|
46
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.39 |
||
|
47
|
47
4MX-14561-00-00 O-Ring |
4MX-14561-00-00 |
from US $4.38 |
||
|
48
|
48
4MX-14115-00-00 Plug, Screw |
4MX-14115-00-00 |
from US $25.50 |
||
|
49
|
49
3TJ-14137-40-00 Clip |
3TJ-14137-40-00 |
from US $4.16 |
||
|
50
|
50
5BE-14146-00-00 Plate |
5BE-14146-00-00 |
from US $3.12 |
||
|
51
|
51
5NL-14196-00-00 Pipe Comp |
5NL-14196-00-00 |
US $51.93 |
||
|
52
|
52
5JG-14197-00-00 Pipe |
5JG-14197-00-00 |
US $13.21 |
||
|
53
|
53
5JG-14987-00-00 Hose |
5JG-14987-00-00 |
US $11.18 |
||
|
54
|
54
5JG-14346-00-00 Plate |
5JG-14346-00-00 |
from US $21.68 |
||
|
55
|
55
5JG-14565-00-00 Screw |
5JG-14565-00-00 |
from US $2.55 |
||
|
56
|
56
5JG-14531-00-00 Spring, Adjust Screw |
5JG-14531-00-00 |
from US $2.55 |
||
|
57
|
57
5NL-14591-00-00 Screw |
5NL-14591-00-00 |
from US $22.24 |
||
| replacement | |||||
|
57
|
57
5NL-14591-09-00 SCREW |
5NL-14591-09-00 |
from US $16.74 |
||
|
58
|
58
4JT-1494F-28-00 Jet (#105)STD |
4JT-1494F-28-00 |
from US $17.14 |
||
|
58
|
58
4JT-1494F-17-00 Jet (#75)AP |
4JT-1494F-17-00 |
from US $15.64 |
||
|
58
|
58
4JT-1494F-21-00 Jet (#85)AP |
4JT-1494F-21-00 |
from US $15.64 |
||
|
58
|
58
4JT-1494F-25-00 Jet (#95)AP |
4JT-1494F-25-00 |
from US $17.14 |
||
|
58
|
58
4JT-1494F-30-00 Jet (#115)AP |
4JT-1494F-30-00 |
from US $15.64 |
||
|
58
|
58
4JT-1494F-32-00 Jet (#125)AP |
4JT-1494F-32-00 |
from US $17.14 |
||
|
58
|
58
4JT-1494F-34-00 Jet (#135)AP |
4JT-1494F-34-00 |
US $10.31 |
||
|
59
|
59
5GS-14940-00-00 Diaphragm Assy |
5GS-14940-00-00 |
from US $27.34 |
||
|
60
|
60
5GS-14958-00-00 Cover, Diaphragm |
5GS-14958-00-00 |
from US $20.12 |
||
|
61
|
61
5GS-14933-00-00 Spring, Diaphragm |
5GS-14933-00-00 |
from US $4.53 |
||
|
62
|
62
3TJ-14191-40-00 Plug, Drain |
3TJ-14191-40-00 |
from US $11.76 |
||
|
63
|
63
633-14159-00-00 Clip |
633-14159-00-00 |
from US $7.21 |
||
