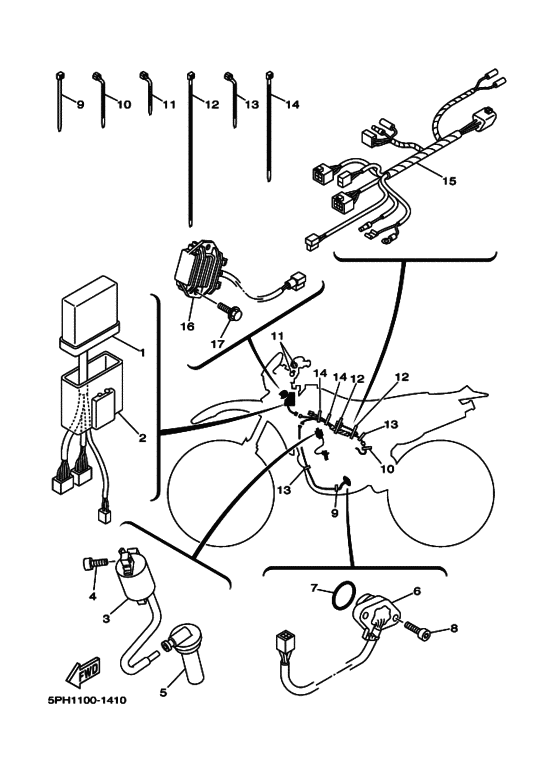

Electrical 1 Diagram Yamaha WR250 WR250F
- Year
- 2001
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5PH2
- Sales region
- Europe (060)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5PH-85540-00-00 C.d.i. Unit Assy |
5PH-85540-00-00 |
from US $535.14 |
||
|
2
|
2
5NL-85546-00-00 Band |
5NL-85546-00-00 |
US $13.01 |
||
|
3
|
3
4SR-82310-00-00 Ignition Coil Assy |
4SR-82310-00-00 |
from US $117.85 |
||
| replacements | |||||
|
3
|
3
4MX-82310-00-00
Ignition Coil Assy
|
4MX-82310-00-00 |
— | ||
|
3
|
3
4MX-82310-01-00 Ignition Coil Assy |
4MX-82310-01-00 |
US $100.95 |
||
|
3
|
3
4MX-82310-02-00 Ignition Coil Assy |
4MX-82310-02-00 |
from US $90.59 |
||
|
3
|
3
4MX-82310-02-00 Ignition Coil Assy |
4MX-82310-02-00 |
from US $90.59 |
||
|
4
|
4
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
5
|
5
5BE-82370-00-00 Plug Cap Assy |
5BE-82370-00-00 |
from US $86.82 |
||
|
6
|
6
5BE-82540-01-00 Neutral Switch Assy |
5BE-82540-01-00 |
from US $78.21 |
||
| replacement | |||||
|
6
|
6
5BE-82540-03-00 Neutral Switch Assy |
5BE-82540-03-00 |
from US $79.67 |
||
|
7
|
7
93210-21276-00 O-Ring |
93210-21276-00 |
from US $1.81 |
||
| replacement | |||||
|
7
|
7
93210-21001-00 O-Ring |
93210-21001-00 |
from US $1.81 |
||
|
8
|
8
90154-05073-00 Screw, Binding |
90154-05073-00 |
from US $1.56 |
||
| replacements | |||||
|
8
|
8
901-54050-46-00 Screw, Binding |
901-54050-46-00 |
from US $1.03 |
||
|
8
|
8
98907-05016-00 Screw, Bind |
98907-05016-00 |
from US $1.56 |
||
|
9
|
9
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
9
|
9
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
10
|
10
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
10
|
10
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
11
|
11
904-64130-77-00
Clamp
|
904-64130-77-00 |
— | ||
| replacement | |||||
|
11
|
11
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
12
|
12
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
13
|
13
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
13
|
13
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
14
|
14
904-65132-75-00
Clamp
|
904-65132-75-00 |
— | ||
| replacement | |||||
|
14
|
14
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
15
|
15
5PH-82509-10-00 Wire, Sub Lead |
5PH-82509-10-00 |
US $73.69 |
||
|
16
|
16
5GS-81910-50-00 Voltage Regulator Assy |
5GS-81910-50-00 |
US $75.87 |
||
|
17
|
17
90119-06039-00 Bolt, With Washer |
90119-06039-00 |
US $2.05 |
||
