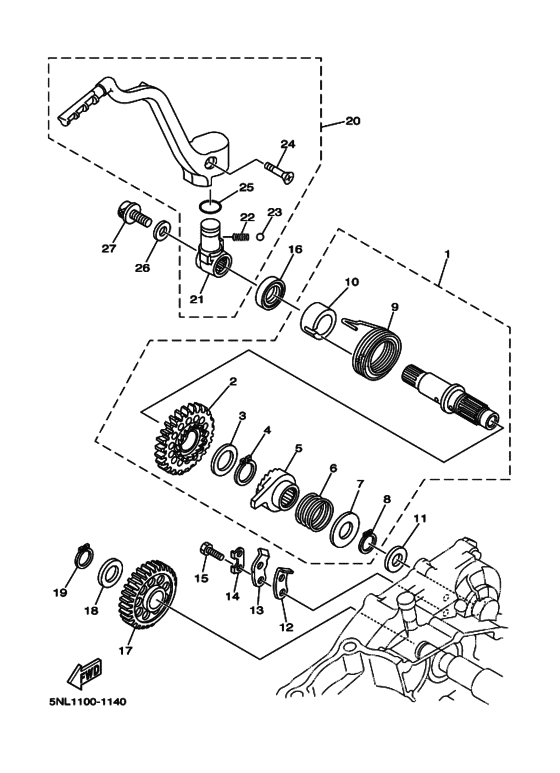

Starter Diagram Yamaha WR250 WR250F
- Year
- 2001
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5PH2
- Sales region
- Europe (060)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5NL-15601-00-00 Kick Shaft Assy |
5NL-15601-00-00 |
from US $236.25 |
||
|
2
|
2
5NL-15641-00-00 Gear, Kick |
5NL-15641-00-00 |
from US $90.22 |
||
| replacement | |||||
|
2
|
2
5NL-15641-10-00 Gear, Kick |
5NL-15641-10-00 |
from US $90.22 |
||
|
3
|
3
90201-20685-00 Washer, Plate |
90201-20685-00 |
from US $1.70 |
||
|
4
|
4
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.94 |
||
|
5
|
5
4GY-15671-00-00 Wheel, Ratchet |
4GY-15671-00-00 |
from US $55.68 |
||
|
6
|
6
90501-16016-00 Spring, Compression |
90501-16016-00 |
from US $1.70 |
||
|
7
|
7
90201-167P7-00 Washer, Plate |
90201-167P7-00 |
from US $7.93 |
||
|
8
|
8
99009-16400-00 Circlip(13T) |
99009-16400-00 |
from US $1.56 |
||
|
9
|
9
90508-30743-00 Spring, Torsion |
90508-30743-00 |
from US $8.93 |
||
|
10
|
10
5NL-15664-00-00 Guide, Spring |
5NL-15664-00-00 |
from US $4.68 |
||
|
11
|
11
90201-162H4-00 Washer, Plate (25H) |
90201-162H4-00 |
from US $1.84 |
||
|
12
|
12
2NX-15668-00-00 Stopper |
2NX-15668-00-00 |
from US $8.93 |
||
|
13
|
13
214-15674-00-00 Guide, Ratchet Wheel |
214-15674-00-00 |
from US $10.20 |
||
| replacement | |||||
|
13
|
13
2NX-15674-00-00 Guide, Ratchet Wheel |
2NX-15674-00-00 |
from US $10.20 |
||
|
14
|
14
214-15686-00-00 Washer, Lock |
214-15686-00-00 |
from US $2.98 |
||
|
15
|
15
90101-06001-00 Bolt |
90101-06001-00 |
from US $1.21 |
||
| replacement | |||||
|
15
|
15
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
16
|
16
931-02182-78-00 Oil Seal |
931-02182-78-00 |
from US $6.24 |
||
|
17
|
17
5NL-15651-00-00 Gear, Kick Idle |
5NL-15651-00-00 |
from US $68.53 |
||
|
18
|
18
90201-177G4-00 Washer, Plate |
90201-177G4-00 |
from US $1.77 |
||
|
19
|
19
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.50 |
||
|
20
|
20
5NL-15620-00-00 Kick Crank Assy |
5NL-15620-00-00 |
from US $185.13 |
||
| replacement | |||||
|
20
|
20
5NL-15620-10-00 Kick Crank Assy |
5NL-15620-10-00 |
from US $185.13 |
||
|
21
|
21
5NL-15621-00-00 Boss, Kick Crank |
5NL-15621-00-00 |
from US $43.93 |
||
| replacement | |||||
|
21
|
21
5NX-15621-01-00 Boss, Kick Crank |
5NX-15621-01-00 |
from US $43.93 |
||
|
22
|
22
90501-12081-00 Spring, Compression |
90501-12081-00 |
from US $1.56 |
||
|
23
|
23
93507-32009-00 Ball 7-32 |
93507-32009-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
93507-32031-00 Ball 7-32 |
93507-32031-00 |
from US $1.63 |
||
|
24
|
24
90152-06010-00 Screw, Countersunk (5Y1) |
90152-06010-00 |
from US $2.27 |
||
|
25
|
25
93210-17570-00 O-Ring |
93210-17570-00 |
from US $1.70 |
||
|
26
|
26
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.81 |
||
| replacement | |||||
|
26
|
26
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
27
|
27
90109-082G0-00 Bolt |
90109-082G0-00 |
from US $1.70 |
||
| replacement | |||||
|
27
|
27
90109-085E2-00 Bolt (2Kf) |
90109-085E2-00 |
from US $1.70 |
||
