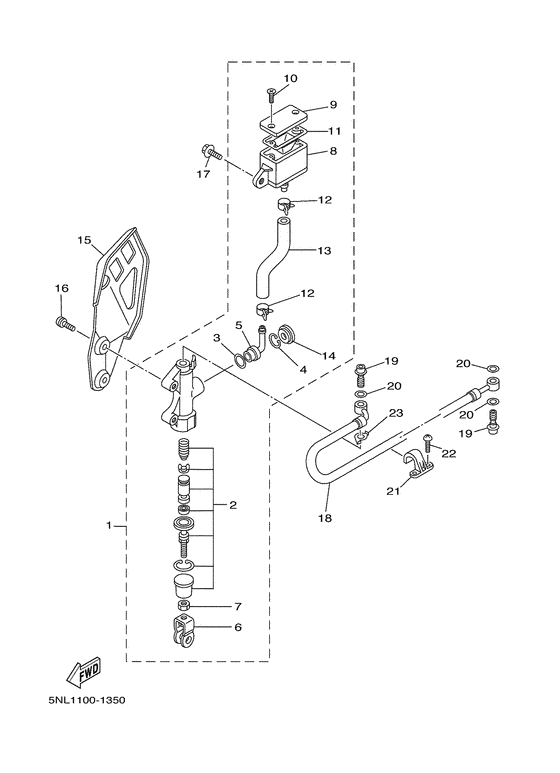

Rear master cylinder Diagram Yamaha WR250 WR250F
- Year
- 2001
- Colour
- DPBSE
- Model code
- 5PH2
- Sales region
- England (060)
- Engine Capacity
- 250
- Model
- WR250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5JG-2583V-00-00 Rr. Master Cylinder Assy |
5JG-2583V-00-00 |
from US $170.67 |
||
|
02
|
02
4SS-W0042-50-00 Cylinder Kit, Master |
4SS-W0042-50-00 |
from US $106.13 |
||
|
03
|
03
93210-15620-00 O-Ring |
93210-15620-00 |
from US $1.39 |
||
| replacement | |||||
|
03
|
03
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.52 |
||
|
04
|
04
2VN-25866-00-00 Circlip |
2VN-25866-00-00 |
from US $3.12 |
||
|
05
|
05
4ML-2582A-50-00 Joint |
4ML-2582A-50-00 |
from US $9.49 |
||
|
06
|
06
3SP-27222-00-00 Joint |
3SP-27222-00-00 |
from US $12.89 |
||
|
07
|
07
95301-08700-00 Nut |
95301-08700-00 |
US $1.42 |
||
| replacement | |||||
|
07
|
07
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
08
|
08
5BE-25894-00-00 Tank, Reservoir |
5BE-25894-00-00 |
from US $17.85 |
||
|
09
|
09
5BE-25852-00-00 Cap, Reservoir |
5BE-25852-00-00 |
from US $23.11 |
||
|
10
|
10
98706-04040-00 Screw, Flat Head |
98706-04040-00 |
from US $1.56 |
||
|
11
|
11
56A-25854-00-00 Gasket, Diaphragm |
56A-25854-00-00 |
from US $17.14 |
||
|
12
|
12
90467-12085-00 Clip |
90467-12085-00 |
from US $4.86 |
||
|
13
|
13
5BE-25895-00-00
Hose, Reservoir
|
5BE-25895-00-00 |
— | ||
|
14
|
14
3FV-2589A-00-00 Cover, Dust |
3FV-2589A-00-00 |
from US $8.60 |
||
|
15
|
15
5BE-2117M-01-00
Cover 2
|
5BE-2117M-01-00 |
— | ||
|
16
|
16
92014-06016-00 Bolt, Button Head |
92014-06016-00 |
from US $1.52 |
||
|
17
|
17
901-05065-53-00
Bolt, Flange
|
901-05065-53-00 |
— | ||
| replacement | |||||
|
17
|
17
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
18
|
18
5MV-25873-00-00 Hose, Brake 2 |
5MV-25873-00-00 |
US $145.60 |
||
| replacement | |||||
|
18
|
18
5MV-25873-01-00 Hose, Brake 2 |
5MV-25873-01-00 |
from US $77.60 |
||
|
19
|
19
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.77 |
||
|
20
|
20
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
20
|
20
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
21
|
21
2VM-25876-00-00 Holder, Brake Hose 2 |
2VM-25876-00-00 |
from US $10.77 |
||
|
22
|
22
97780-50510-00 Screw, Tapping |
97780-50510-00 |
from US $2.27 |
||
| replacement | |||||
|
22
|
22
97780-50610-00 Screw, Tapping |
97780-50610-00 |
from US $2.27 |
||
|
23
|
23
5BE-25844-01-00 Washer, Lock |
5BE-25844-01-00 |
US $5.54 |
||
