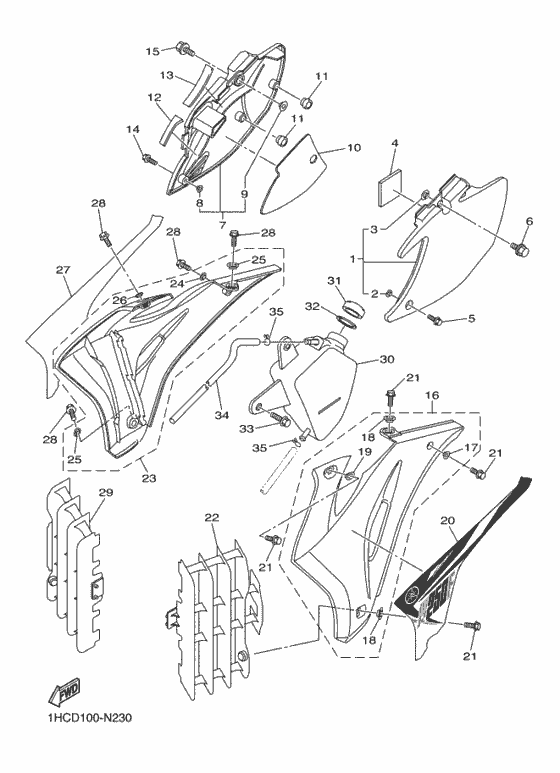

Side cover Diagram Yamaha WR250 WR250F
- Year
- 2014
- Colour
- Deep Purplish Blue Solid E
- Model code
- 1HCD
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UM-21711-E0-00 Cover, Side 1 |
5UM-21711-E0-00 |
from US $30.46 |
||
|
2
|
2
90387-06009-00 Collar |
90387-06009-00 |
from US $7.37 |
||
|
3
|
3
5BE-21749-00-00 Collar |
5BE-21749-00-00 |
from US $3.40 |
||
|
4
|
4
5UM-21717-E0-00 Damper |
5UM-21717-E0-00 |
from US $1.98 |
||
|
5
|
5
90105-06103-00 Bolt, Flange |
90105-06103-00 |
from US $2.13 |
||
|
6
|
6
90119-08095-00 Bolt, With Washer |
90119-08095-00 |
from US $2.91 |
||
|
7
|
7
5UM-21721-E0-00 Cover, Side 2 |
5UM-21721-E0-00 |
from US $30.46 |
||
|
8
|
8
90387-06009-00 Collar |
90387-06009-00 |
from US $7.37 |
||
|
9
|
9
5BE-21749-00-00 Collar |
5BE-21749-00-00 |
from US $3.40 |
||
|
10
|
10
5UM-2174A-E0-00 Insulator, Side Cover |
5UM-2174A-E0-00 |
from US $24.55 |
||
|
11
|
11
5XC-21719-90-00 Grommet |
5XC-21719-90-00 |
from US $6.24 |
||
|
12
|
12
5UM-2172S-E0-00 Insulator 3 |
5UM-2172S-E0-00 |
from US $3.89 |
||
|
13
|
13
5UM-2173S-E0-00 Insulator 4 |
5UM-2173S-E0-00 |
from US $4.43 |
||
|
14
|
14
90105-06103-00 Bolt, Flange |
90105-06103-00 |
from US $2.13 |
||
|
15
|
15
90119-08095-00 Bolt, With Washer |
90119-08095-00 |
from US $2.91 |
||
|
16
|
16
5UM-21730-E0-00 Side Cover Assy 3 |
5UM-21730-E0-00 |
from US $52.42 |
||
|
17
|
17
90387-06009-00 Collar |
90387-06009-00 |
from US $7.37 |
||
|
18
|
18
5TA-21749-00-00 Collar |
5TA-21749-00-00 |
from US $8.46 |
||
|
19
|
19
5XC-21749-90-00 Collar |
5XC-21749-90-00 |
from US $8.93 |
||
|
20
|
20
1HC-2174G-20-00 Graphic 3 |
1HC-2174G-20-00 |
US $35.65 |
||
|
21
|
21
90105-06064-00 Bolt, Flange |
90105-06064-00 |
from US $1.81 |
||
|
22
|
22
2S2-2172A-70-00 Panel 1 |
2S2-2172A-70-00 |
from US $18.70 |
||
|
23
|
23
5UM-21740-E0-00 Side Cover Assy 4 |
5UM-21740-E0-00 |
from US $41.85 |
||
|
24
|
24
90387-06009-00 Collar |
90387-06009-00 |
from US $7.37 |
||
|
25
|
25
5TA-21749-00-00 Collar |
5TA-21749-00-00 |
from US $8.46 |
||
|
26
|
26
5XC-21749-90-00 Collar |
5XC-21749-90-00 |
from US $8.93 |
||
|
27
|
27
1HC-2174H-20-00
Graphic 4
|
1HC-2174H-20-00 |
— | ||
|
28
|
28
90105-06064-00 Bolt, Flange |
90105-06064-00 |
from US $1.81 |
||
|
29
|
29
2S2-2172A-80-00 Panel 1 |
2S2-2172A-80-00 |
from US $18.70 |
||
|
30
|
30
5UM-21860-E0-00 Tank Assy |
5UM-21860-E0-00 |
from US $81.38 |
||
|
31
|
31
26H-21875-00-00 Cap |
26H-21875-00-00 |
from US $17.61 |
||
|
32
|
32
26H-21874-00-00 Gasket |
26H-21874-00-00 |
from US $4.30 |
||
|
33
|
33
90119-06146-00 Bolt, With Washer |
90119-06146-00 |
from US $2.13 |
||
|
34
|
34
5UM-1244J-E0-00 Hose 6 |
5UM-1244J-E0-00 |
from US $18.14 |
||
|
35
|
35
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
