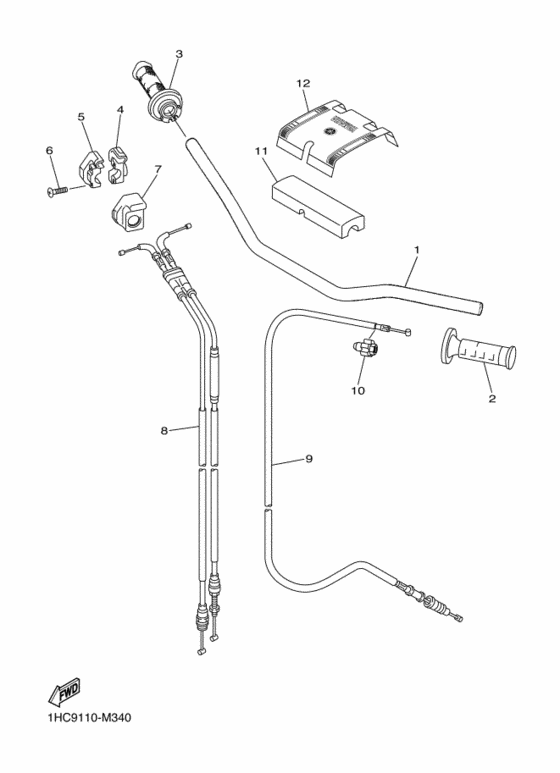

Steering handle & cable Diagram Yamaha WR250 WR250F
- Year
- 2014
- Colour
- Deep Purplish Blue Solid E
- Model code
- 1HCD
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17D-26111-H0-00 Handlebar |
17D-26111-H0-00 |
from US $190.66 |
||
|
2
|
2
4GY-26241-00-00 Grip |
4GY-26241-00-00 |
from US $14.84 |
||
|
3
|
3
5TJ-26240-C0-00 Grip Assy |
5TJ-26240-C0-00 |
from US $36.20 |
||
|
4
|
4
5BE-26281-01-00 Cap, Grip Upper |
5BE-26281-01-00 |
from US $27.77 |
||
|
5
|
5
5BE-26282-00-00 Cap, Grip Under |
5BE-26282-00-00 |
from US $34.99 |
||
|
6
|
6
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
7
|
7
5SF-26287-11-00 Cover, Cap Grip |
5SF-26287-11-00 |
from US $11.10 |
||
|
8
|
8
5UM-26302-E0-00 Throttle Cable Assy |
5UM-26302-E0-00 |
from US $88.31 |
||
|
9
|
9
5UM-26335-E0-00 Cable, clutch |
5UM-26335-E0-00 |
from US $48.01 |
||
|
10
|
10
1C3-26342-50-00 Boot, Cable |
1C3-26342-50-00 |
from US $4.53 |
||
|
11
|
11
5XC-26124-90-00 Protector, Handlebar |
5XC-26124-90-00 |
from US $23.38 |
||
|
12
|
12
17D-26143-H0-00 Cover, Handle Upper 1 |
17D-26143-H0-00 |
from US $50.15 |
||
