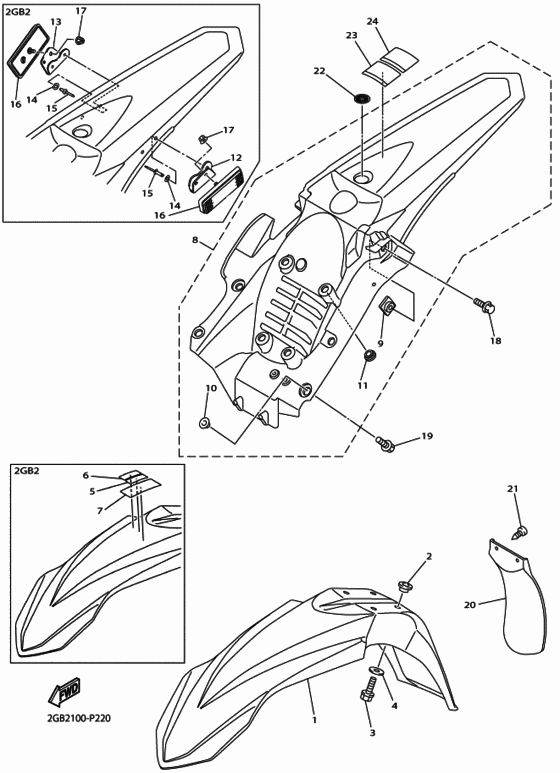

Fender Diagram Yamaha WR250 WR250F
- Year
- 2015
- Colour
- Deep Purplish Blue Solid E
- Model code
- 2GB3
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17D-21511-50-00 Fender, Front |
17D-21511-50-00 |
from US $41.89 |
||
|
2
|
2
903-87062-59-00 Collar |
903-87062-59-00 |
from US $4.11 |
||
|
3
|
3
90105-06127-00 Bolt, Flange |
90105-06127-00 |
from US $1.70 |
||
|
4
|
4
902-01061-08-00 Washer, Plate |
902-01061-08-00 |
from US $1.98 |
||
|
8
|
8
2GB-21610-00-00 Rear Fender Comp |
2GB-21610-00-00 |
from US $75.71 |
||
| replacement | |||||
|
8
|
8
2GB-21610-01-00 REAR FENDER COMP. |
2GB-21610-01-00 |
from US $71.21 |
||
|
9
|
9
5XE-21635-10-00 Nut, Rear Fender |
5XE-21635-10-00 |
from US $6.52 |
||
|
10
|
10
5BE-21749-00-00 Collar |
5BE-21749-00-00 |
from US $3.40 |
||
|
11
|
11
903-87080-86-00 Collar |
903-87080-86-00 |
from US $3.68 |
||
|
18
|
18
90105-06100-00 Bolt, Flange |
90105-06100-00 |
from US $1.81 |
||
|
19
|
19
901-19062-68-00 Bolt, With Washer |
901-19062-68-00 |
from US $1.35 |
||
|
20
|
20
3D7-21642-00-00 Guard, Flap |
3D7-21642-00-00 |
from US $27.77 |
||
|
21
|
21
97702-60016-00 Screw, Tapping |
97702-60016-00 |
from US $1.56 |
||
|
22
|
22
5FK-2175C-30-00 Tuning Fork Mark |
5FK-2175C-30-00 |
from US $3.97 |
||
| replacement | |||||
|
22
|
22
5FK-2175C-31-00 Tuning Fork Mark |
5FK-2175C-31-00 |
from US $3.97 |
||
|
23
|
23
5PG-2816R-00-00 Label, Warning General Info |
5PG-2816R-00-00 |
US $4.99 |
||
