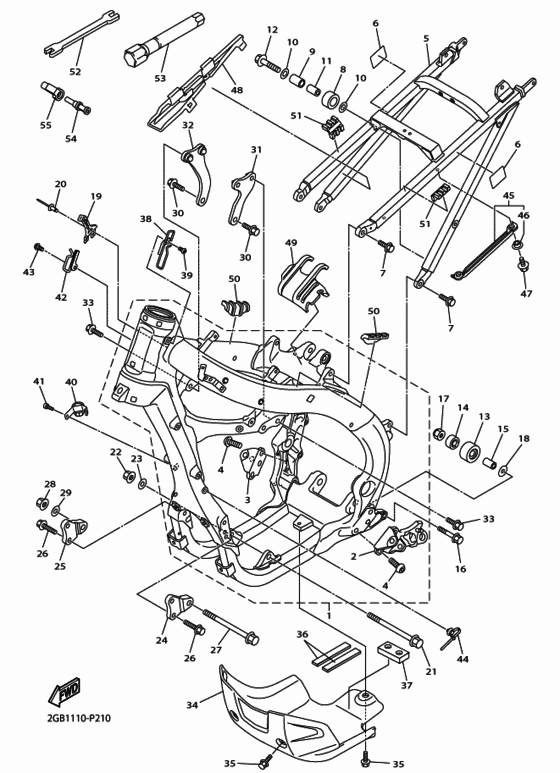

Frame Diagram Yamaha WR250 WR250F
- Year
- 2015
- Colour
- Deep Purplish Blue Solid E
- Model code
- 2GB3
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GB-21101-00-00 Front Frame Comp |
2GB-21101-00-00 |
from US $3,379.20 |
||
| replacement | |||||
|
1
|
1
2GB-21101-01-00 FRONT FRAME COMP. |
2GB-21101-01-00 |
from US $3,379.20 |
||
|
2
|
2
2GB-21447-00-00 Bracket, Footrest |
2GB-21447-00-00 |
from US $161.05 |
||
|
3
|
3
17D-21448-00-00 Bracket, Footrest |
17D-21448-00-00 |
from US $30.60 |
||
|
4
|
4
90149-10031-00 Screw |
90149-10031-00 |
from US $1.98 |
||
| replacement | |||||
|
4
|
4
901-49100-33-00 Screw |
901-49100-33-00 |
from US $1.98 |
||
|
5
|
5
1SL-21190-10-00 Rear Frame Comp |
1SL-21190-10-00 |
from US $482.86 |
||
|
6
|
6
33D-23472-00-00 Protector |
33D-23472-00-00 |
from US $3.12 |
||
|
7
|
7
901-05082-30-00 Bolt, Flange |
901-05082-30-00 |
from US $1.98 |
||
|
8
|
8
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $10.10 |
||
|
9
|
9
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.60 |
||
|
10
|
10
90201-08045-00 Washer, Plate |
90201-08045-00 |
from US $2.77 |
||
|
11
|
11
90387-08041-00 Collar |
90387-08041-00 |
from US $2.77 |
||
|
12
|
12
950-22080-40-00
Bolt, Flange (Small Head)
|
950-22080-40-00 |
— | ||
| replacement | |||||
|
12
|
12
95024-08040-00 Bolt, Flange |
95024-08040-00 |
from US $1.52 |
||
|
13
|
13
3JD-22178-20-00 Tensioner |
3JD-22178-20-00 |
from US $22.33 |
||
|
14
|
14
93300-60839-00 Bearing |
93300-60839-00 |
from US $17.99 |
||
|
15
|
15
90387-086N4-00 Collar |
90387-086N4-00 |
from US $1.66 |
||
|
16
|
16
90105-08133-00 Bolt, Flange |
90105-08133-00 |
from US $1.70 |
||
|
17
|
17
90185-08009-00 Nut, Self-Locking |
90185-08009-00 |
US $0.85 |
||
| replacement | |||||
|
17
|
17
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
18
|
18
90201-08043-00 Washer, Plate |
90201-08043-00 |
from US $1.70 |
||
|
19
|
19
2GB-21149-00-00 Bracket, Battery Box |
2GB-21149-00-00 |
from US $6.38 |
||
|
20
|
20
90267-32146-00 Rivet, Blind |
90267-32146-00 |
from US $2.55 |
||
|
21
|
21
90105-10176-00 Bolt, Flange |
90105-10176-00 |
from US $6.80 |
||
|
22
|
22
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
22
|
22
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
23
|
23
90201-10045-00 Washer, Plate |
90201-10045-00 |
from US $2.22 |
||
|
24
|
24
2GB-21417-00-00 Bracket, Front Lower 1 |
2GB-21417-00-00 |
from US $34.85 |
||
|
25
|
25
2GB-21418-00-00 Bracket, Front Lower 2 |
2GB-21418-00-00 |
from US $34.85 |
||
|
26
|
26
90105-08143-00 Bolt, Flange |
90105-08143-00 |
from US $1.98 |
||
|
27
|
27
901-05104-48-00 Bolt, Flange |
901-05104-48-00 |
from US $18.56 |
||
|
28
|
28
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
28
|
28
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
29
|
29
90201-10025-00 Washer, Plate |
90201-10025-00 |
from US $4.86 |
||
|
30
|
30
90105-10189-00 Bolt, Flange |
90105-10189-00 |
from US $2.69 |
||
|
31
|
31
2GB-21425-00-00 Bracket, Rear Upper 1 |
2GB-21425-00-00 |
from US $17.85 |
||
|
32
|
32
2GB-21426-00-00 Bracket, Rear Upper 2 |
2GB-21426-00-00 |
from US $28.90 |
||
|
33
|
33
90105-08143-00 Bolt, Flange |
90105-08143-00 |
from US $1.98 |
||
|
34
|
34
1DX-2147A-00-00
Guard, Engine 1
|
1DX-2147A-00-00 |
— | ||
| replacement | |||||
|
34
|
34
1DX-2147A-01-00 Guard, Engine 1 |
1DX-2147A-01-00 |
from US $41.05 |
||
|
35
|
35
90119-06166-00 Bolt, With Washer |
90119-06166-00 |
from US $1.70 |
||
|
36
|
36
905-20040-11-00 Damper, Plate |
905-20040-11-00 |
from US $1.84 |
||
|
37
|
37
1DX-21485-01-00 Damper, Rubber 1 |
1DX-21485-01-00 |
from US $14.17 |
||
|
38
|
38
1SL-21163-01-00 Holder, Clutch Cable |
1SL-21163-01-00 |
from US $9.35 |
||
|
39
|
39
92012-06010-00 Bolt, Button Head |
92012-06010-00 |
from US $1.66 |
||
|
40
|
40
1SM-21335-01-00 Clamp, Wire Harness 1 |
1SM-21335-01-00 |
from US $16.86 |
||
|
41
|
41
91312-05008-00 Bolt |
91312-05008-00 |
from US $1.56 |
||
|
42
|
42
2GB-21163-00-00 Holder, Clutch Cable |
2GB-21163-00-00 |
US $13.81 |
||
|
43
|
43
92012-06010-00 Bolt, Button Head |
92012-06010-00 |
from US $1.66 |
||
|
44
|
44
904-64310-02-00 Clamp |
904-64310-02-00 |
from US $4.34 |
||
|
45
|
45
1SL-2171E-00-00 Cover, Side 5 |
1SL-2171E-00-00 |
from US $9.35 |
||
|
46
|
46
90387-065T2-00 Collar |
90387-065T2-00 |
from US $3.68 |
||
|
47
|
47
95022-06016-00 Bolt, Flange |
95022-06016-00 |
from US $1.66 |
||
|
48
|
48
2GB-2171X-00-00 Cover, Side 6 |
2GB-2171X-00-00 |
from US $10.20 |
||
|
49
|
49
2GB-24181-00-00 Damper, Locating 1 |
2GB-24181-00-00 |
from US $18.28 |
||
|
50
|
50
33D-24182-00-00 Damper, Locating 2 |
33D-24182-00-00 |
from US $10.34 |
||
|
51
|
51
33D-24183-00-00 Damper, Locating 3 |
33D-24183-00-00 |
from US $8.08 |
||
|
52
|
52
5ET-28166-10-00 Wrench, Hexagon |
5ET-28166-10-00 |
from US $18.42 |
||
|
53
|
53
17D-2814F-00-00 Box, Spark Plug |
17D-2814F-00-00 |
from US $7.37 |
||
|
54
|
54
18P-2467E-00-00 Cap |
18P-2467E-00-00 |
from US $2.13 |
||
|
55
|
55
18P-2464V-00-00 Case, Cap |
18P-2464V-00-00 |
from US $4.96 |
||
