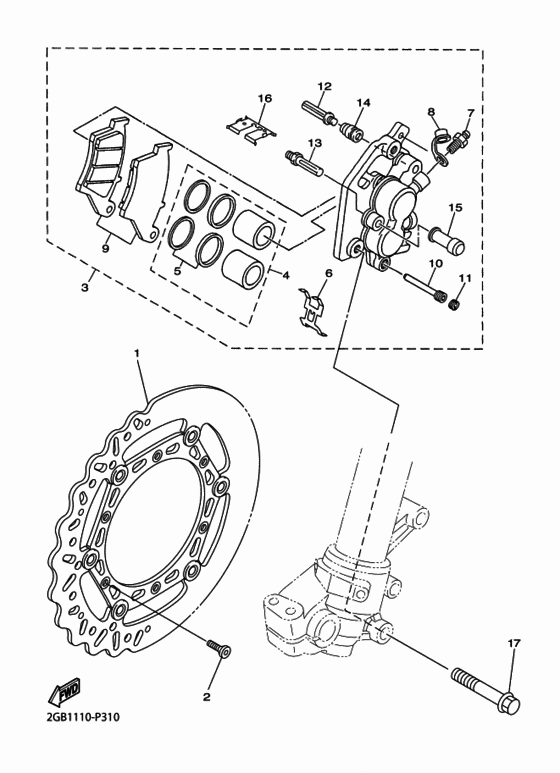

Front brake caliper Diagram Yamaha WR250 WR250F
- Year
- 2015
- Colour
- Deep Purplish Blue Solid E
- Model code
- 2GB3
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2S2-2581T-70-00 Disc Brake Assy |
2S2-2581T-70-00 |
from US $168.56 |
||
|
2
|
2
90151-06051-00 Screw, Countersunk |
90151-06051-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
901-51060-79-00 Screw, Countersunk |
901-51060-79-00 |
from US $1.42 |
||
|
3
|
3
1C3-2580T-00-00 Caliper Assy (Left) |
1C3-2580T-00-00 |
from US $303.95 |
||
|
4
|
4
5UN-W0057-00-00 Piston Assy, Caliper |
5UN-W0057-00-00 |
from US $53.33 |
||
|
5
|
5
3JD-W0047-00-00 Caliper Seal Kit |
3JD-W0047-00-00 |
from US $22.57 |
||
| replacement | |||||
|
5
|
5
3JD-25803-00-00 Caliper Seal Kit |
3JD-25803-00-00 |
from US $22.68 |
||
|
6
|
6
5DH-25919-00-00 Support, Pad |
5DH-25919-00-00 |
from US $15.50 |
||
|
7
|
7
1UY-25824-51-00 Bleed Screw Kit |
1UY-25824-51-00 |
from US $7.51 |
||
| replacement | |||||
|
7
|
7
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $10.37 |
||
|
8
|
8
1UY-25825-51-00 Bleed Screw Kit |
1UY-25825-51-00 |
from US $2.91 |
||
| replacement | |||||
|
8
|
8
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $10.37 |
||
|
9
|
9
5MV-W0045-01-00 Brake Pad Kit |
5MV-W0045-01-00 |
from US $48.56 |
||
|
10
|
10
5DH-25933-00-00 Pin, Pad |
5DH-25933-00-00 |
from US $13.45 |
||
|
11
|
11
5DH-25916-00-00 Plug |
5DH-25916-00-00 |
from US $3.54 |
||
|
12
|
12
3SP-25926-51-00 Bolt |
3SP-25926-51-00 |
from US $11.76 |
||
|
13
|
13
3SP-25914-51-00 Pin, Slide |
3SP-25914-51-00 |
from US $5.68 |
||
|
14
|
14
3JD-25917-00-00 Boot, Caliper |
3JD-25917-00-00 |
from US $3.74 |
||
|
15
|
15
1UY-25937-51-00 Boot 2 |
1UY-25937-51-00 |
from US $5.68 |
||
|
16
|
16
5DH-25849-00-00 Retainer, Caliper |
5DH-25849-00-00 |
from US $6.51 |
||
|
17
|
17
90105-08137-00 Bolt, Flange |
90105-08137-00 |
from US $1.98 |
||
