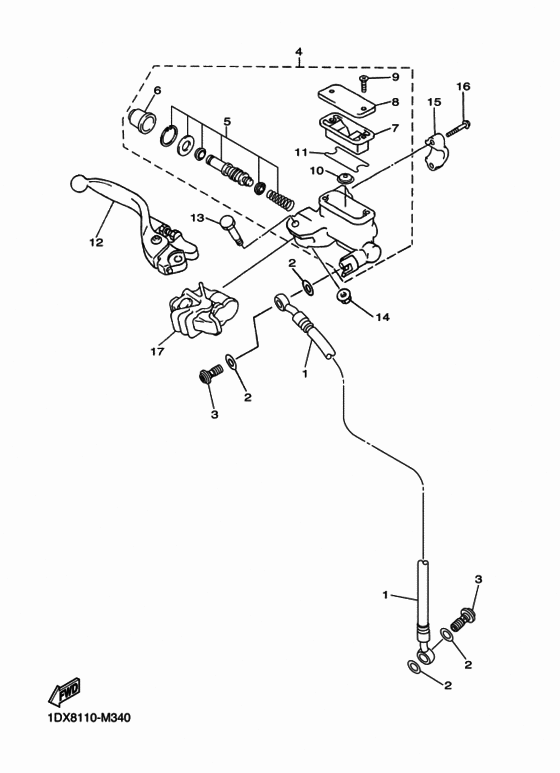

Front master cylinder Diagram Yamaha WR250 WR250F
- Year
- 2015
- Colour
- Deep Purplish Blue Solid E
- Model code
- 2GB3
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DX-25872-00-00 Hose, Brake 1 |
1DX-25872-00-00 |
from US $126.28 |
||
|
2
|
2
90430-10005-00 Gasket |
90430-10005-00 |
from US $1.66 |
||
|
3
|
3
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.77 |
||
|
4
|
4
5XE-W2587-10-00 Master Cylinder Sub Assy |
5XE-W2587-10-00 |
from US $167.17 |
||
| replacements | |||||
|
4
|
4
5XE-W2587-00-00
Master Cylinder Sub Assy
|
5XE-W2587-00-00 |
— | ||
|
4
|
4
5XE-W2587-01-00 Master Cylinder Sub Assy |
5XE-W2587-01-00 |
from US $167.17 |
||
|
5
|
5
5NY-W0041-01-00 Cylinder Kit, Master |
5NY-W0041-01-00 |
from US $55.13 |
||
|
6
|
6
5NY-25868-00-00 Boot, Master Cylinder |
5NY-25868-00-00 |
from US $9.21 |
||
|
7
|
7
5XE-25854-00-00 Diaphragm, Reservoir |
5XE-25854-00-00 |
from US $11.05 |
||
|
8
|
8
5MV-25852-01-00 Cap, Reservoir |
5MV-25852-01-00 |
from US $13.09 |
||
|
9
|
9
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
9
|
9
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
10
|
10
5CG-25715-00-00 Separator Assy |
5CG-25715-00-00 |
from US $7.23 |
||
|
11
|
11
5XE-25853-00-00 Float, Reservoir |
5XE-25853-00-00 |
from US $2.13 |
||
|
12
|
12
1C3-83922-51-00 Lever 2 |
1C3-83922-51-00 |
from US $30.74 |
||
|
13
|
13
5MV-2589F-00-00 Bolt, Lever |
5MV-2589F-00-00 |
from US $4.96 |
||
|
14
|
14
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
15
|
15
5MV-25867-00-00 Bracket, Master Cylinder |
5MV-25867-00-00 |
from US $9.21 |
||
|
16
|
16
5MV-25833-00-00 Bolt, Fitting |
5MV-25833-00-00 |
from US $2.08 |
||
|
17
|
17
5NY-26372-00-00 Cover, Handle Lever 1 |
5NY-26372-00-00 |
from US $10.91 |
||
