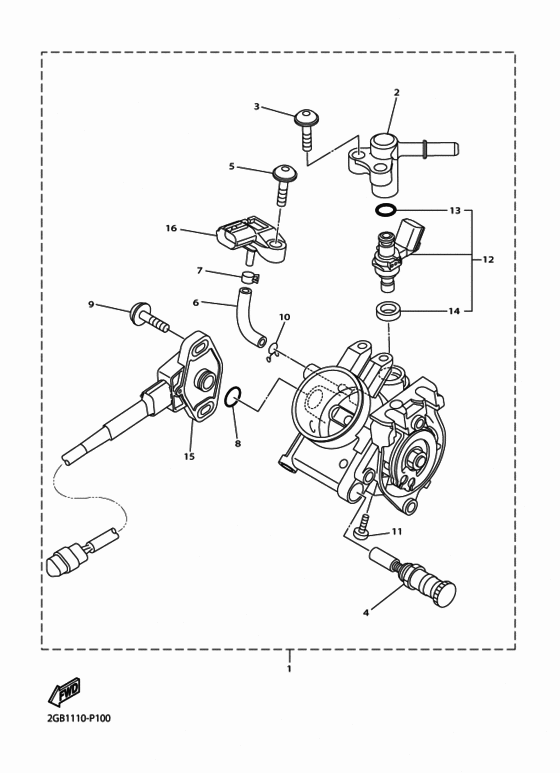

Intake 2 Diagram Yamaha WR250 WR250F
- Year
- 2015
- Colour
- Deep Purplish Blue Solid E
- Model code
- 2GB3
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GB-13750-00-00 Throttle Body Assy |
2GB-13750-00-00 |
US $768.04 |
||
|
2
|
2
1SM-13938-00-00 Pipe |
1SM-13938-00-00 |
from US $65.35 |
||
|
3
|
3
33D-14486-00-00 Screw, Rod |
33D-14486-00-00 |
from US $7.37 |
||
|
4
|
4
1SL-14171-00-00 Plunger, Starter |
1SL-14171-00-00 |
from US $101.55 |
||
| replacement | |||||
|
4
|
4
1SL-14171-01-00 |
1SL-14171-01-00 |
US $159.89 |
||
|
5
|
5
33D-14325-00-00 Screw, Pan Head |
33D-14325-00-00 |
from US $7.37 |
||
|
6
|
6
33D-14348-00-00 Pipe 1 |
33D-14348-00-00 |
from US $8.50 |
||
|
7
|
7
33D-13577-00-00 Clip |
33D-13577-00-00 |
from US $4.96 |
||
|
8
|
8
1DX-14562-00-00 O-Ring |
1DX-14562-00-00 |
from US $5.38 |
||
|
9
|
9
1DX-14216-00-00 Screw |
1DX-14216-00-00 |
from US $2.55 |
||
|
10
|
10
3TJ-14137-40-00 Clip |
3TJ-14137-40-00 |
from US $4.16 |
||
|
11
|
11
2GB-14591-00-00 Screw |
2GB-14591-00-00 |
US $34.22 |
||
|
12
|
12
1SM-13761-00-00 Injector |
1SM-13761-00-00 |
from US $83.57 |
||
|
13
|
13
1SM-14147-00-00 O-Ring |
1SM-14147-00-00 |
from US $3.68 |
||
|
14
|
14
1SM-141A1-00-00 Seal Ring |
1SM-141A1-00-00 |
from US $7.65 |
||
|
15
|
15
1SL-85885-01-00 Throttle Sensor Assy |
1SL-85885-01-00 |
from US $175.46 |
||
| replacements | |||||
|
15
|
15
1SL-85885-02-00 THROTTLE SENSOR ASSY |
1SL-85885-02-00 |
US $175.46 |
||
|
15
|
15
1SL-85885-03-00 Throttle Sensor Assy |
1SL-85885-03-00 |
US $223.99 |
||
|
16
|
16
2C0-82380-00-00
Sensor, Pressure
|
2C0-82380-00-00 |
— | ||
| replacement | |||||
|
16
|
16
1WS-82380-00-00 Sensor, Pressure |
1WS-82380-00-00 |
from US $125.97 |
||
