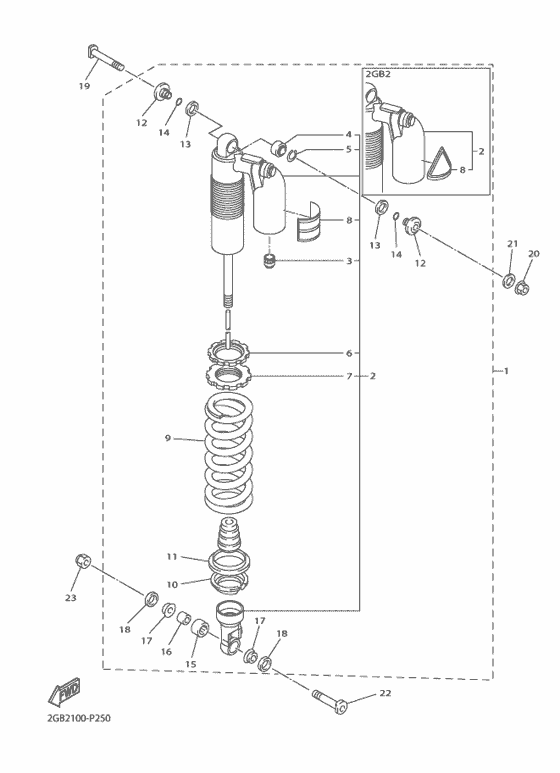

Rear suspension Diagram Yamaha WR250 WR250F
- Year
- 2015
- Colour
- Deep Purplish Blue Solid E
- Model code
- 2GB3
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GB-22200-20-00
Shock Absorber Assy, Rear
|
2GB-22200-20-00 |
— | ||
|
2
|
2
2GB-22201-20-00
Damper Sub Assy
|
2GB-22201-20-00 |
— | ||
|
3
|
3
509-23184-L0-00 Cap, Air Valve |
509-23184-L0-00 |
from US $9.81 |
||
|
4
|
4
4JX-22226-00-00 Bush, Shock Absorber Lower |
4JX-22226-00-00 |
from US $43.11 |
||
|
5
|
5
5DH-23183-00-00 Circlip |
5DH-23183-00-00 |
from US $2.13 |
||
|
6
|
6
33D-22234-00-00 Guide, Spring 3 |
33D-22234-00-00 |
from US $24.51 |
||
|
7
|
7
1SL-22213-00-00 Seat, Spring Upper |
1SL-22213-00-00 |
from US $10.83 |
||
|
8
|
8
4AA-22259-40-00 Label, Warning |
4AA-22259-40-00 |
from US $6.52 |
||
|
9
|
9
1SL-22212-60-00 Spring (K=54 Blue) |
1SL-22212-60-00 |
from US $216.91 |
||
|
10
|
10
2GB-22214-00-00 Guide, Spring 1 |
2GB-22214-00-00 |
from US $35.42 |
||
|
11
|
11
33D-22224-00-00 Guide, Spring 2 |
33D-22224-00-00 |
from US $8.93 |
||
|
12
|
12
1C3-22253-50-00 Collar, Distance |
1C3-22253-50-00 |
from US $37.17 |
||
|
13
|
13
3JE-22475-00-00 Seal, Dust |
3JE-22475-00-00 |
from US $7.49 |
||
|
14
|
14
4EW-22474-00-00 Seal, Ring |
4EW-22474-00-00 |
from US $2.13 |
||
|
15
|
15
5UN-22176-00-00 Bearing |
5UN-22176-00-00 |
from US $20.54 |
||
|
16
|
16
5MV-22184-00-00 Bush |
5MV-22184-00-00 |
from US $15.68 |
||
|
17
|
17
1C3-22253-L1-00 Collar, Distance |
1C3-22253-L1-00 |
from US $37.17 |
||
|
18
|
18
5NY-22475-00-00 Seal, Dust |
5NY-22475-00-00 |
from US $7.49 |
||
|
19
|
19
5XE-22242-00-00 Bolt 2 |
5XE-22242-00-00 |
from US $4.90 |
||
| replacement | |||||
|
19
|
19
5XE-22242-01-00 BOLT 2 |
5XE-22242-01-00 |
from US $6.24 |
||
|
20
|
20
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.81 |
||
|
21
|
21
92902-10200-00 Washer, Plain |
92902-10200-00 |
US $1.18 |
||
| replacement | |||||
|
21
|
21
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
22
|
22
5NY-22241-00-00 Bolt 1 |
5NY-22241-00-00 |
from US $4.03 |
||
|
23
|
23
90185-10012-00 Nut, Self-Locking |
90185-10012-00 |
from US $2.70 |
||
