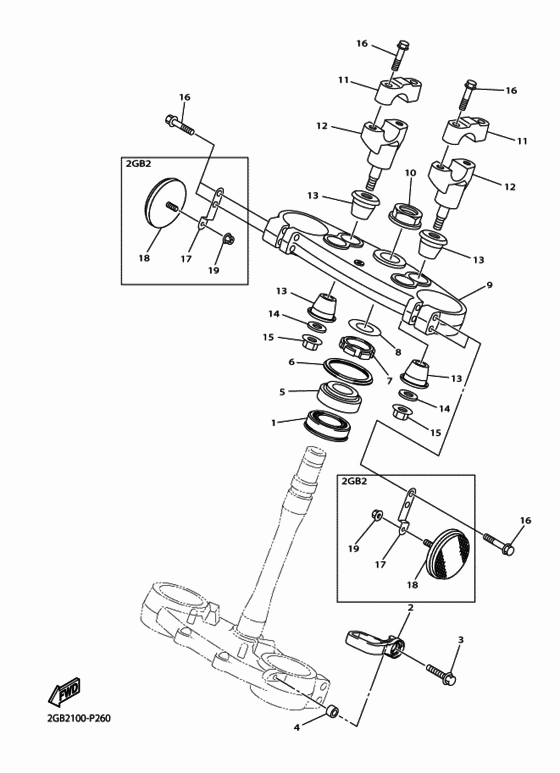

Steering Diagram Yamaha WR250 WR250F
- Year
- 2015
- Colour
- Deep Purplish Blue Solid E
- Model code
- 2GB3
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93332-00081-00 Bearing |
93332-00081-00 |
from US $50.98 |
||
|
2
|
2
17D-23389-50-00 Guide, Cable |
17D-23389-50-00 |
from US $5.13 |
||
|
3
|
3
901-05061-70-00 Bolt, Flange |
901-05061-70-00 |
from US $1.56 |
||
|
4
|
4
90387-06105-00 Collar |
90387-06105-00 |
from US $1.56 |
||
|
5
|
5
93332-00068-00 Bearing |
93332-00068-00 |
from US $50.98 |
||
| replacement | |||||
|
5
|
5
93332-00078-00 Bearing(4Ew) |
93332-00078-00 |
from US $50.98 |
||
|
6
|
6
17D-23416-50-00 Cover, Ball Race 2 |
17D-23416-50-00 |
from US $12.61 |
||
|
7
|
7
901-79280-15-00 Nut |
901-79280-15-00 |
from US $11.33 |
||
|
8
|
8
902-01280-20-00 Washer, Plate |
902-01280-20-00 |
from US $3.40 |
||
|
9
|
9
1SL-23435-00-00 Crown, Handle |
1SL-23435-00-00 |
from US $193.42 |
||
|
10
|
10
901-79240-04-00 Nut |
901-79240-04-00 |
from US $12.91 |
||
|
11
|
11
18P-23441-00-00 Holder, Handle Upper |
18P-23441-00-00 |
from US $22.24 |
||
|
12
|
12
1SL-23442-00-00 Holder, Handle Lower |
1SL-23442-00-00 |
from US $30.89 |
||
|
13
|
13
1SL-23434-00-00 Holder, Damper |
1SL-23434-00-00 |
from US $4.99 |
||
|
14
|
14
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.70 |
||
|
15
|
15
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.66 |
||
|
16
|
16
90105-08154-00 Bolt, Flange |
90105-08154-00 |
from US $1.81 |
||
