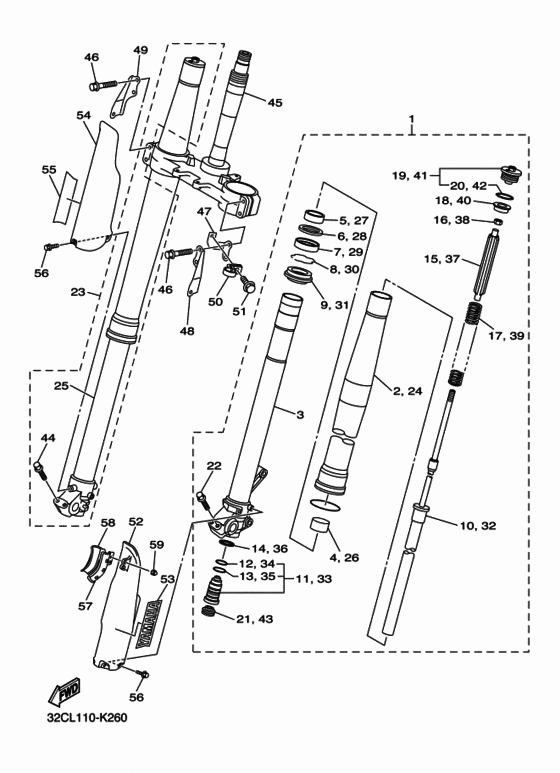

Front fork Diagram Yamaha WR250 WR250X
- Year
- 2011
- Colour
- Purplish White Solid 1
- Model code
- 32CR
- Sales region
- Canada (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- WR250X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32D-23102-10-00 Front Fork Assy (L.h) |
32D-23102-10-00 |
from US $1,269.56 |
||
|
2
|
2
3D7-23106-30-00 Outer Tube Comp |
3D7-23106-30-00 |
US $740.52 |
||
|
3
|
3
3D7-23110-00-00 Inner Tube Comp. 1 |
3D7-23110-00-00 |
from US $481.82 |
||
|
4
|
4
5ET-23171-L0-00 Piston, Front Fork |
5ET-23171-L0-00 |
from US $18.28 |
||
|
5
|
5
5ET-23125-L0-00 Metal, Slide 1 |
5ET-23125-L0-00 |
from US $13.88 |
||
|
6
|
6
5UN-23146-L0-00 Washer, Oil Seal |
5UN-23146-L0-00 |
from US $12.06 |
||
|
7
|
7
5UN-23145-L0-00 Oil Seal |
5UN-23145-L0-00 |
from US $22.20 |
||
|
8
|
8
4SS-23153-L0-00 Ring, Snap |
4SS-23153-L0-00 |
from US $2.91 |
||
|
9
|
9
5HD-23144-L0-00 Seal, Dust |
5HD-23144-L0-00 |
from US $20.25 |
||
|
10
|
10
32D-23170-00-00 Cylinder Comp., Front Fork |
32D-23170-00-00 |
US $506.68 |
||
|
11
|
11
32D-2316A-00-00 Valve Comp |
32D-2316A-00-00 |
US $307.37 |
||
|
12
|
12
4DA-23147-L0-00 O-Ring (3Xj-23147-00) |
4DA-23147-L0-00 |
from US $9.78 |
||
|
13
|
13
276-23114-00-00
Gasket
|
276-23114-00-00 |
— | ||
| replacement | |||||
|
13
|
13
276-23114-01-00 Gasket |
276-23114-01-00 |
from US $1.21 |
||
|
14
|
14
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
15
|
15
3D7-23117-00-00 Guide, Spring |
3D7-23117-00-00 |
from US $36.61 |
||
|
16
|
16
3XJ-23357-L0-00 Nut |
3XJ-23357-L0-00 |
from US $1.13 |
||
|
17
|
17
32D-23141-00-00 Spring, Front Fork |
32D-23141-00-00 |
from US $74.56 |
||
|
18
|
18
4SS-23143-L0-00 Seat, Spring Lower |
4SS-23143-L0-00 |
from US $13.63 |
||
|
19
|
19
3D7-23111-00-00 Bolt, Cap |
3D7-23111-00-00 |
from US $194.81 |
||
|
20
|
20
3D7-23147-00-00 O-Ring |
3D7-23147-00-00 |
from US $4.03 |
||
|
21
|
21
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
22
|
22
950-22080-40-00
Bolt, Flange (Small Head)
|
950-22080-40-00 |
— | ||
| replacement | |||||
|
22
|
22
95024-08040-00 Bolt, Flange |
95024-08040-00 |
from US $1.52 |
||
|
23
|
23
32D-23103-10-00 Front Fork Assy (R.h) |
32D-23103-10-00 |
from US $1,528.61 |
||
|
24
|
24
3D7-23106-30-00 Outer Tube Comp |
3D7-23106-30-00 |
US $740.52 |
||
|
25
|
25
3D7-23120-00-00 Inner Tube Comp. 2 |
3D7-23120-00-00 |
from US $488.31 |
||
|
26
|
26
5ET-23171-L0-00 Piston, Front Fork |
5ET-23171-L0-00 |
from US $18.28 |
||
|
27
|
27
5ET-23125-L0-00 Metal, Slide 1 |
5ET-23125-L0-00 |
from US $13.88 |
||
|
28
|
28
5UN-23146-L0-00 Washer, Oil Seal |
5UN-23146-L0-00 |
from US $12.06 |
||
|
29
|
29
5UN-23145-L0-00 Oil Seal |
5UN-23145-L0-00 |
from US $22.20 |
||
|
30
|
30
4SS-23153-L0-00 Ring, Snap |
4SS-23153-L0-00 |
from US $2.91 |
||
|
31
|
31
5HD-23144-L0-00 Seal, Dust |
5HD-23144-L0-00 |
from US $20.25 |
||
|
32
|
32
32D-23170-00-00 Cylinder Comp., Front Fork |
32D-23170-00-00 |
US $506.68 |
||
|
33
|
33
32D-2316A-00-00 Valve Comp |
32D-2316A-00-00 |
US $307.37 |
||
|
34
|
34
4DA-23147-L0-00 O-Ring (3Xj-23147-00) |
4DA-23147-L0-00 |
from US $9.78 |
||
|
35
|
35
276-23114-00-00
Gasket
|
276-23114-00-00 |
— | ||
| replacement | |||||
|
35
|
35
276-23114-01-00 Gasket |
276-23114-01-00 |
from US $1.21 |
||
|
36
|
36
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
37
|
37
3D7-23117-00-00 Guide, Spring |
3D7-23117-00-00 |
from US $36.61 |
||
|
38
|
38
3XJ-23357-L0-00 Nut |
3XJ-23357-L0-00 |
from US $1.13 |
||
|
39
|
39
32D-23141-00-00 Spring, Front Fork |
32D-23141-00-00 |
from US $74.56 |
||
|
40
|
40
4SS-23143-L0-00 Seat, Spring Lower |
4SS-23143-L0-00 |
from US $13.63 |
||
|
41
|
41
3D7-23111-00-00 Bolt, Cap |
3D7-23111-00-00 |
from US $194.81 |
||
|
42
|
42
3D7-23147-00-00 O-Ring |
3D7-23147-00-00 |
from US $4.03 |
||
|
43
|
43
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
44
|
44
950-22080-40-00
Bolt, Flange (Small Head)
|
950-22080-40-00 |
— | ||
| replacement | |||||
|
44
|
44
95024-08040-00 Bolt, Flange |
95024-08040-00 |
from US $1.52 |
||
|
45
|
45
3D7-23340-00-00 Under Bracket Comp |
3D7-23340-00-00 |
from US $704.88 |
||
|
46
|
46
950-22080-40-00
Bolt, Flange (Small Head)
|
950-22080-40-00 |
— | ||
| replacement | |||||
|
46
|
46
95024-08040-00 Bolt, Flange |
95024-08040-00 |
from US $1.52 |
||
|
47
|
47
3D7-2331E-00-00 Guide, Cable |
3D7-2331E-00-00 |
from US $5.81 |
||
|
48
|
48
32D-85112-00-00 Bracket, Reflector 1 |
32D-85112-00-00 |
US $23.67 |
||
|
49
|
49
32D-85112-10-00 Bracket, Reflector 1 |
32D-85112-10-00 |
US $23.76 |
||
|
50
|
50
5VK-23389-00-00 Guide, Cable |
5VK-23389-00-00 |
from US $4.96 |
||
|
51
|
51
90105-05016-00 Bolt, Flange |
90105-05016-00 |
from US $1.70 |
||
|
52
|
52
3D7-2315H-00-00 Protector 1 |
3D7-2315H-00-00 |
from US $20.92 |
||
|
53
|
53
4XL-2153A-30-00 Emblem, Yamaha |
4XL-2153A-30-00 |
from US $18.70 |
||
| replacement | |||||
|
53
|
53
4XL-2153A-31-00 |
4XL-2153A-31-00 |
US $12.13 |
||
|
54
|
54
3D7-2315J-00-00 Protector 2 |
3D7-2315J-00-00 |
from US $20.92 |
||
|
55
|
55
4XL-2153A-30-00 Emblem, Yamaha |
4XL-2153A-30-00 |
from US $18.70 |
||
| replacement | |||||
|
55
|
55
4XL-2153A-31-00 |
4XL-2153A-31-00 |
US $12.13 |
||
|
56
|
56
3SP-23356-L0-00 Bolt 2 |
3SP-23356-L0-00 |
from US $2.91 |
||
|
57
|
57
3D7-23466-00-00 Clamp |
3D7-23466-00-00 |
from US $9.63 |
||
|
58
|
58
3D7-23467-00-00 Clamp |
3D7-23467-00-00 |
from US $9.63 |
||
|
59
|
59
90176-06014-00 Nut, Crown |
90176-06014-00 |
from US $1.84 |
||
