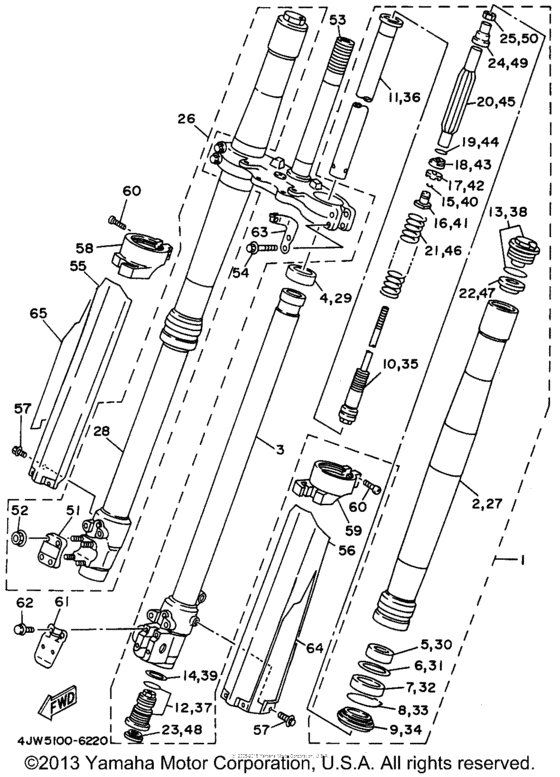

Front fork Diagram Yamaha WR250 WR250Z
- Year
- 1996
- Sales region
- USA
- Базовая модель
- WR250ZH
- Engine Capacity
- 250
- Model
- WR250Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JW-23102-20-00
Front Fork Assembly (L.h)
UR |
4JW-23102-20-00 |
— | ||
|
2
|
2
4JX-23136-L0-00
Tube, Outer 2
|
4JX-23136-L0-00 |
— | ||
|
3
|
3
4EW-23120-L0-00
Inner Tube Comp.2
|
4EW-23120-L0-00 |
— | ||
|
4
|
4
3XJ-23171-L0-00
Metal, Slide 2
|
3XJ-23171-L0-00 |
— | ||
| replacement | |||||
|
4
|
4
5EB-23171-00-00 Piston, Front Fork |
5EB-23171-00-00 |
from US $15.50 |
||
|
5
|
5
4EW-23125-L0-00 Metal, Slide 1 |
4EW-23125-L0-00 |
US $19.39 |
||
|
6
|
6
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
7
|
7
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
8
|
8
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $6.11 |
||
|
9
|
9
4DA-23144-L0-00 Seal, Dust |
4DA-23144-L0-00 |
from US $17.61 |
||
| replacement | |||||
|
9
|
9
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $11.12 |
||
|
10
|
10
4JW-2314A-10-00
Piston Rod Assembly
UR |
4JW-2314A-10-00 |
— | ||
|
11
|
11
4JX-23170-L0-00
Cylinder Comp., Front Fork
|
4JX-23170-L0-00 |
— | ||
|
12
|
12
4JY-2316A-L0-00
Valve Comp
UR |
4JY-2316A-L0-00 |
— | ||
|
13
|
13
4EW-23111-L0-00 Bolt, Cap |
4EW-23111-L0-00 |
US $343.69 |
||
|
14
|
14
3JD-23158-L0-00 Gasket |
3JD-23158-L0-00 |
from US $5.95 |
||
|
15
|
15
3SP-23153-L0-00 Ring, Snap |
3SP-23153-L0-00 |
US $1.08 |
||
|
16
|
16
3SP-23113-L0-00 Collar |
3SP-23113-L0-00 |
US $38.41 |
||
|
17
|
17
3SP-23166-L0-00
Spacer, Oil Lock
|
3SP-23166-L0-00 |
— | ||
|
18
|
18
3SP-23393-L0-00
Nut, Special
|
3SP-23393-L0-00 |
— | ||
|
19
|
19
3JD-23147-L0-00
O-Ring
|
3JD-23147-L0-00 |
— | ||
|
20
|
20
4JX-23142-L0-00
Seat, Spring Upper
|
4JX-23142-L0-00 |
— | ||
|
21
|
21
4JW-23141-00-00
Spring, Front Fork
UR |
4JW-23141-00-00 |
— | ||
|
22
|
22
3XJ-23143-L0-00 Seat, Spring Lower |
3XJ-23143-L0-00 |
US $16.97 |
||
|
23
|
23
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
24
|
24
4JX-23363-L0-00
Collar 1
|
4JX-23363-L0-00 |
— | ||
|
25
|
25
3SP-23357-L0-00 Nut |
3SP-23357-L0-00 |
from US $3.40 |
||
|
26
|
26
4JW-23103-20-00
Front Fork Assembly (R.h)
UR |
4JW-23103-20-00 |
— | ||
|
27
|
27
4JX-23136-L0-00
Tube, Outer 2
|
4JX-23136-L0-00 |
— | ||
|
28
|
28
4EW-23110-L0-00
Inner Tube Comp.1
|
4EW-23110-L0-00 |
— | ||
|
29
|
29
3XJ-23171-L0-00
Metal, Slide 2
|
3XJ-23171-L0-00 |
— | ||
| replacement | |||||
|
29
|
29
5EB-23171-00-00 Piston, Front Fork |
5EB-23171-00-00 |
from US $15.50 |
||
|
30
|
30
4EW-23125-L0-00 Metal, Slide 1 |
4EW-23125-L0-00 |
US $19.39 |
||
|
31
|
31
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
32
|
32
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
33
|
33
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $6.11 |
||
|
34
|
34
4DA-23144-L0-00 Seal, Dust |
4DA-23144-L0-00 |
from US $17.61 |
||
| replacement | |||||
|
34
|
34
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $11.12 |
||
|
35
|
35
4JW-2314A-10-00
Piston Rod Assembly
UR |
4JW-2314A-10-00 |
— | ||
|
36
|
36
4JX-23170-L0-00
Cylinder Comp., Front Fork
|
4JX-23170-L0-00 |
— | ||
|
37
|
37
4JY-2316A-L0-00
Valve Comp
UR |
4JY-2316A-L0-00 |
— | ||
|
38
|
38
4EW-23111-L0-00 Bolt, Cap |
4EW-23111-L0-00 |
US $343.69 |
||
|
39
|
39
3JD-23158-L0-00 Gasket |
3JD-23158-L0-00 |
from US $5.95 |
||
|
40
|
40
3SP-23153-L0-00 Ring, Snap |
3SP-23153-L0-00 |
US $1.08 |
||
|
41
|
41
3SP-23113-L0-00 Collar |
3SP-23113-L0-00 |
US $38.41 |
||
|
42
|
42
3SP-23166-L0-00
Spacer, Oil Lock
|
3SP-23166-L0-00 |
— | ||
|
43
|
43
3SP-23393-L0-00
Nut, Special
|
3SP-23393-L0-00 |
— | ||
|
44
|
44
3JD-23147-L0-00
O-Ring
|
3JD-23147-L0-00 |
— | ||
|
45
|
45
4JX-23142-L0-00
Seat, Spring Upper
|
4JX-23142-L0-00 |
— | ||
|
46
|
46
4JW-23141-00-00
Spring, Front Fork
UR |
4JW-23141-00-00 |
— | ||
|
47
|
47
3XJ-23143-L0-00 Seat, Spring Lower |
3XJ-23143-L0-00 |
US $16.97 |
||
|
48
|
48
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
49
|
49
4JX-23363-L0-00
Collar 1
|
4JX-23363-L0-00 |
— | ||
|
50
|
50
3SP-23357-L0-00 Nut |
3SP-23357-L0-00 |
from US $3.40 |
||
|
51
|
51
4EW-23167-L0-00
Holder, Axle
|
4EW-23167-L0-00 |
— | ||
|
52
|
52
2KF-23127-01-00 Nut, Flange |
2KF-23127-01-00 |
from US $1.13 |
||
| replacement | |||||
|
52
|
52
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
53
|
53
4JX-23340-L0-00
Under Bracket Comp
|
4JX-23340-L0-00 |
— | ||
|
54
|
54
95024-08040-00 Bolt, Flange |
95024-08040-00 |
from US $1.52 |
||
|
55
|
55
4MX-2314J-L0-00
Protecter Comp., 2
|
4MX-2314J-L0-00 |
— | ||
|
56
|
56
4MX-2314H-L1-00
Protecter Comp., 1
|
4MX-2314H-L1-00 |
— | ||
| replacement | |||||
|
56
|
56
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
57
|
57
3SP-23356-L0-00 Bolt 2 |
3SP-23356-L0-00 |
from US $2.91 |
||
|
58
|
58
4MX-2314G-L0-00 Protecter Guide Comp., 2 |
4MX-2314G-L0-00 |
from US $34.61 |
||
|
59
|
59
4MX-2314F-L0-00 Protecter Guide Comp., 1 |
4MX-2314F-L0-00 |
from US $38.68 |
||
|
60
|
60
4V4-23194-L0-00 Screw, Pan Head |
4V4-23194-L0-00 |
US $1.21 |
||
| replacement | |||||
|
60
|
60
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
61
|
61
4EW-2314E-L0-00 Cover, Hose |
4EW-2314E-L0-00 |
US $12.58 |
||
|
62
|
62
4DA-23346-L0-00 Bolt, Flange |
4DA-23346-L0-00 |
from US $2.83 |
||
| replacement | |||||
|
62
|
62
95024-06008-00 Bolt, Flange |
95024-06008-00 |
from US $2.83 |
||
|
63
|
63
4EW-2331E-L0-00 Guide, Cable |
4EW-2331E-L0-00 |
from US $18.47 |
||
| replacement | |||||
|
63
|
63
4EW-2331E-L1-00 Guide, Cable |
4EW-2331E-L1-00 |
from US $27.77 |
||
|
64
|
64
4SS-2313B-10-00
Emblem
|
4SS-2313B-10-00 |
— | ||
| replacement | |||||
|
64
|
64
4SS-2313B-11-00
Emblem, 1
|
4SS-2313B-11-00 |
— | ||
|
65
|
65
4SS-2313C-11-00
Emblem 2
|
4SS-2313C-11-00 |
— | ||
