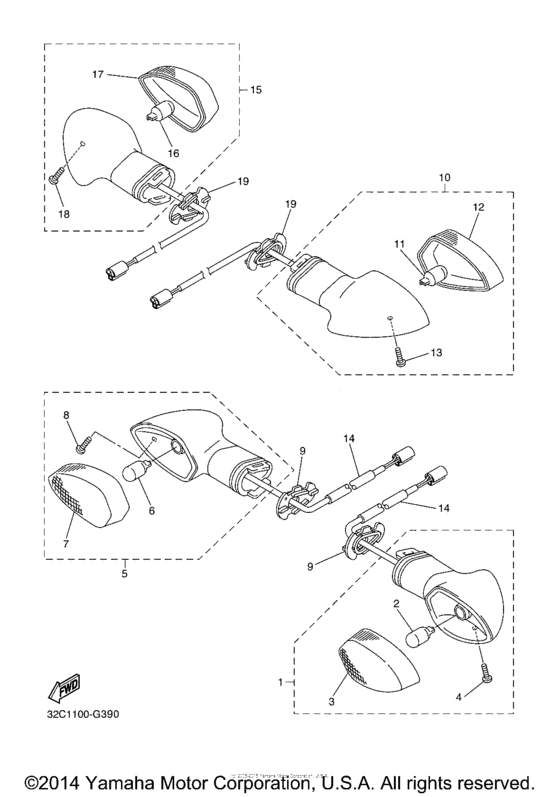

Flasher light Diagram Yamaha WR250 WR250R
- Year
- 2015
- Sales region
- USA
- Базовая модель
- WR25RF
- Engine Capacity
- 250
- Model
- WR250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32C-83310-00-00 Front Flasher Light Assy 1 |
32C-83310-00-00 |
from US $50.81 |
||
| replacements | |||||
|
1
|
1
32C-83310-01-00
FRONT FLASHER LIGHT
|
32C-83310-01-00 |
— | ||
|
1
|
1
32C-83310-02-00 FRONT FLASHER LIGHT ASSY |
32C-83310-02-00 |
from US $38.72 |
||
|
2
|
2
5GJ-83331-00-00 Bulb, Flasher (12V-21/512V-21/5W T2 |
5GJ-83331-00-00 |
from US $5.67 |
||
|
3
|
3
5PW-8333A-10-00 Lens Comp |
5PW-8333A-10-00 |
from US $21.96 |
||
|
4
|
4
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
5
|
5
32C-83320-00-00
Front Flasher Light Assy 2
|
32C-83320-00-00 |
— | ||
| replacements | |||||
|
5
|
5
32C-83320-01-00 FRONT FLASHER LIGHT |
32C-83320-01-00 |
from US $46.12 |
||
|
5
|
5
32C-83320-02-00 FRONT FLASHER LIGHT ASSY 2 |
32C-83320-02-00 |
from US $38.72 |
||
|
6
|
6
5GJ-83331-00-00 Bulb, Flasher (12V-21/512V-21/5W T2 |
5GJ-83331-00-00 |
from US $5.67 |
||
|
7
|
7
5PW-8334A-10-00 Lens Comp |
5PW-8334A-10-00 |
from US $21.96 |
||
|
8
|
8
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
9
|
9
32C-83318-00-00 Stay, Flasher 1 |
32C-83318-00-00 |
from US $2.69 |
||
|
10
|
10
32C-83330-00-00 Rear Flasher Light Assy 1 |
32C-83330-00-00 |
US $60.23 |
||
|
11
|
11
5PW-83331-00-00 Bulb (12V-21/5W T20)12V-21/5W T20 |
5PW-83331-00-00 |
from US $4.96 |
||
|
12
|
12
5PW-8334A-10-00 Lens Comp |
5PW-8334A-10-00 |
from US $21.96 |
||
|
13
|
13
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
14
|
14
90446-15003-00 Hose (L100) |
90446-15003-00 |
from US $1.98 |
||
|
15
|
15
32C-83340-00-00 Rear Flasher Light Assy 2 |
32C-83340-00-00 |
US $51.41 |
||
|
16
|
16
5PW-83331-00-00 Bulb (12V-21/5W T20)12V-21/5W T20 |
5PW-83331-00-00 |
from US $4.96 |
||
|
17
|
17
5PW-8333A-10-00 Lens Comp |
5PW-8333A-10-00 |
from US $21.96 |
||
|
18
|
18
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
19
|
19
32C-83318-00-00 Stay, Flasher 1 |
32C-83318-00-00 |
from US $2.69 |
||
