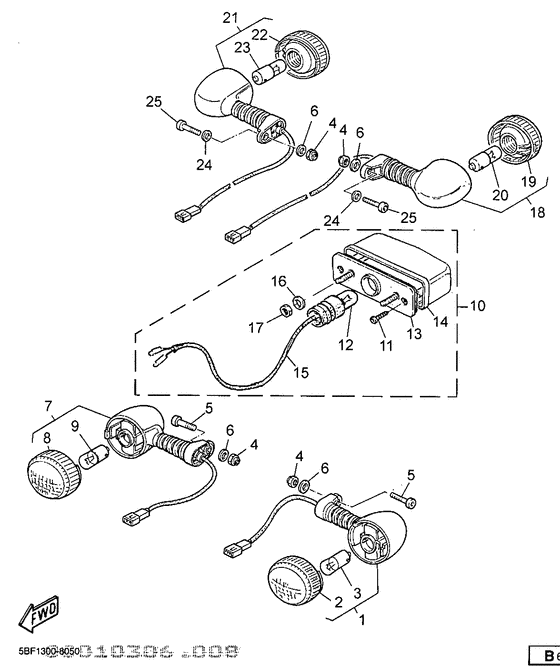

Flasher light - license light Diagram Yamaha WR400F
- Year
- 1998
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5BF2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 400
- Model
- WR400F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5CH-H3310-01-00
Front Flasher Light Assy 1
|
5CH-H3310-01-00 |
— | ||
|
02
|
02
5CH-H3332-00-00
Lens, Flasher
|
5CH-H3332-00-00 |
— | ||
|
03
|
03
4DL-H3311-00-00
Bulb, Flasher 12V-10W
Lm |
4DL-H3311-00-00 |
— | ||
|
04
|
04
9571L-06300-00
Nut, Flange
|
9571L-06300-00 |
— | ||
|
05
|
05
9131M-06020-00 Bolt |
9131M-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.39 |
||
|
06
|
06
9290L-06600-00 Washer |
9290L-06600-00 |
US $1.07 |
||
|
07
|
07
5CH-H3320-01-00
Front Flasher Light Assy 2
|
5CH-H3320-01-00 |
— | ||
|
08
|
08
5CH-H3322-00-00
Lens, Flasher 2
|
5CH-H3322-00-00 |
— | ||
|
09
|
09
4DL-H3311-00-00
Bulb, Flasher 12V-10W
Lm |
4DL-H3311-00-00 |
— | ||
|
10
|
10
4SU-H4745-00-00
Licence Light Unit Assy
|
4SU-H4745-00-00 |
— | ||
|
11
|
11
9770L-03110-00
Screw, Tapping
|
9770L-03110-00 |
— | ||
|
12
|
12
4SU-H4744-00-00
Bulb (12V-5W)
Lm |
4SU-H4744-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
Lm |
999-99999-99-00 |
— | ||
|
13
|
13
4SU-H4741-00-00
Base, Licence Light
|
4SU-H4741-00-00 |
— | ||
|
14
|
14
4SU-H4749-00-00
Body, Licence Light
|
4SU-H4749-00-00 |
— | ||
|
15
|
15
4SU-H4546-00-00
Cord Assy
|
4SU-H4546-00-00 |
— | ||
|
16
|
16
9290L-05200-00
Washer
|
9290L-05200-00 |
— | ||
|
17
|
17
9570L-05300-00
Nut, Flange
|
9570L-05300-00 |
— | ||
|
18
|
18
5BF-H3330-00-00
Rear Flasher Light Assy 1
|
5BF-H3330-00-00 |
— | ||
|
19
|
19
5CH-H3322-00-00
Lens, Flasher 2
|
5CH-H3322-00-00 |
— | ||
|
20
|
20
4DL-H3311-00-00
Bulb, Flasher 12V-10W
Lm |
4DL-H3311-00-00 |
— | ||
|
21
|
21
5BF-H3340-00-00
Flasher Light Assy 2
|
5BF-H3340-00-00 |
— | ||
|
22
|
22
5CH-H3332-00-00
Lens, Flasher
|
5CH-H3332-00-00 |
— | ||
|
23
|
23
4DL-H3311-00-00
Bulb, Flasher 12V-10W
Lm |
4DL-H3311-00-00 |
— | ||
|
24
|
24
9290M-06600-00 Washer |
9290M-06600-00 |
from US $0.29 |
||
|
25
|
25
9131M-06025-00 Bolt |
9131M-06025-00 |
from US $1.44 |
||
