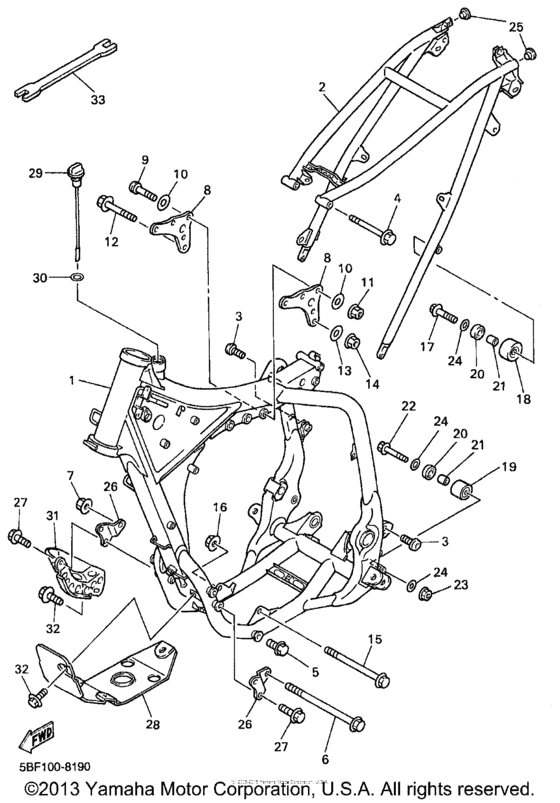

Frame Diagram Yamaha WR400F
- Year
- 1998
- Sales region
- USA
- Engine Capacity
- 400
- Model
- WR400F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5BF-21101-00-P0
Front Frame Comp
|
5BF-21101-00-P0 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
5BF-21190-00-P0 Rear Frame Comp |
5BF-21190-00-P0 |
US $649.76 |
||
|
3
|
3
90110-08096-00 Bolt, Hexagon Socket Head |
90110-08096-00 |
from US $1.81 |
||
|
4
|
4
90105-08099-00 Bolt, Flange |
90105-08099-00 |
from US $5.81 |
||
|
5
|
5
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
5
|
5
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
5
|
5
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
6
|
6
95817-10160-00
Bolt, Flange
|
95817-10160-00 |
— | ||
|
7
|
7
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
7
|
7
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
8
|
8
5BE-21425-00-00 Bracket, Rear Upper 1 |
5BE-21425-00-00 |
US $56.95 |
||
| replacement | |||||
|
8
|
8
5BE-21425-01-00 Bracket, Rear Upper 1 |
5BE-21425-01-00 |
US $56.95 |
||
|
9
|
9
92017-08055-00 Bolt, Button Head |
92017-08055-00 |
from US $2.13 |
||
|
10
|
10
90201-086P8-00 Washer, Plate(3Xp) |
90201-086P8-00 |
from US $1.81 |
||
|
11
|
11
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
US $2.35 |
||
| replacement | |||||
|
11
|
11
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
12
|
12
95817-10055-00 Bolt, Flange |
95817-10055-00 |
from US $2.91 |
||
|
13
|
13
92907-10200-00 Washer, Plain |
92907-10200-00 |
from US $0.90 |
||
|
14
|
14
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
14
|
14
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
15
|
15
90105-10733-00 Bolt, Flange |
90105-10733-00 |
from US $3.04 |
||
|
16
|
16
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
16
|
16
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
17
|
17
95027-08040-00 Bolt, Flange |
95027-08040-00 |
from US $1.42 |
||
|
18
|
18
3JD-22178-10-00 Tensioner |
3JD-22178-10-00 |
from US $22.33 |
||
| replacement | |||||
|
18
|
18
3JD-22178-20-00 Tensioner |
3JD-22178-20-00 |
from US $22.33 |
||
|
19
|
19
4EW-22178-00-00 Tensioner |
4EW-22178-00-00 |
from US $9.32 |
||
| replacement | |||||
|
19
|
19
4EW-22178-01-00 Tensioner |
4EW-22178-01-00 |
from US $12.04 |
||
|
20
|
20
93300-60804-00 Bearing |
93300-60804-00 |
from US $14.72 |
||
|
21
|
21
90387-086N4-00 Collar |
90387-086N4-00 |
from US $1.66 |
||
|
22
|
22
95027-08065-00 Bolt, Flange |
95027-08065-00 |
from US $2.35 |
||
|
23
|
23
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
23
|
23
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
24
|
24
90201-086P8-00 Washer, Plate(3Xp) |
90201-086P8-00 |
from US $1.81 |
||
|
25
|
25
90338-16148-00 Plug |
90338-16148-00 |
from US $2.09 |
||
|
26
|
26
5BE-21417-00-00 Bracket, Front Lower 1 |
5BE-21417-00-00 |
US $8.15 |
||
|
27
|
27
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
27
|
27
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
27
|
27
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
28
|
28
5BE-21471-00-00 Protector, Engine |
5BE-21471-00-00 |
from US $88.92 |
||
|
29
|
29
5BE-15362-00-00
Plug, Oil Level
|
5BE-15362-00-00 |
— | ||
|
30
|
30
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.81 |
||
|
31
|
31
5BE-2147A-00-00 Guard, Engine 1 |
5BE-2147A-00-00 |
from US $29.81 |
||
| replacement | |||||
|
31
|
31
5TA-2147A-00-00
Guard, Engine 1
|
5TA-2147A-00-00 |
— | ||
|
32
|
32
95027-08012-00 Bolt, Flange |
95027-08012-00 |
from US $1.66 |
||
|
33
|
33
56A-28166-00-00
Wrench, Hexagon
|
56A-28166-00-00 |
— | ||
