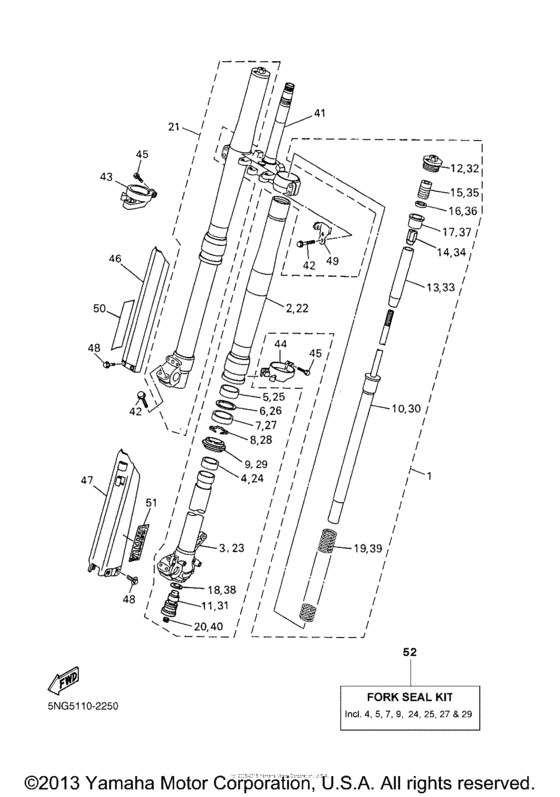

Front fork Diagram Yamaha WR426F
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 426
- Model
- WR426F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5NG-23102-50-00
Front Fork Assy (L.h)
|
5NG-23102-50-00 |
— | ||
|
2
|
2
5HD-23136-L0-00 Tube, Outer 2 |
5HD-23136-L0-00 |
US $926.26 |
||
|
3
|
3
5DH-23120-L0-00 Inner Tube Comp. 2 |
5DH-23120-L0-00 |
from US $339.29 |
||
|
4
|
4
5ET-23171-L0-00 Piston, Front Fork |
5ET-23171-L0-00 |
from US $18.28 |
||
|
5
|
5
5ET-23125-L0-00 Metal, Slide 1INCL. IN FORK SEAL KIT |
5ET-23125-L0-00 |
from US $13.88 |
||
|
6
|
6
4SS-23146-L0-00 Washer, Oil Seal |
4SS-23146-L0-00 |
from US $9.78 |
||
|
7
|
7
5UN-23145-L0-00 Oil Seal |
5UN-23145-L0-00 |
from US $22.20 |
||
|
7
|
7
5ET-23145-L0-00
Oil Seal
|
5ET-23145-L0-00 |
— | ||
| replacement | |||||
|
7
|
7
5UN-23145-L0-00 Oil Seal |
5UN-23145-L0-00 |
from US $22.20 |
||
|
8
|
8
4SS-23153-L0-00 Ring, Snap |
4SS-23153-L0-00 |
from US $2.91 |
||
|
9
|
9
5HD-23144-L0-00 Seal, Dust |
5HD-23144-L0-00 |
from US $20.25 |
||
|
10
|
10
5NG-23170-50-00 Cylinder Comp., Front Fork |
5NG-23170-50-00 |
US $594.40 |
||
|
11
|
11
5NG-2316A-50-00 Valve Comp |
5NG-2316A-50-00 |
US $245.29 |
||
|
12
|
12
5NY-23111-L0-00 Bolt, Cap |
5NY-23111-L0-00 |
US $307.85 |
||
|
13
|
13
5DH-23142-L0-00 Seat, Spring Upper |
5DH-23142-L0-00 |
from US $26.07 |
||
|
14
|
14
5HD-23393-L0-00 Nut, Special |
5HD-23393-L0-00 |
from US $18.40 |
||
|
15
|
15
5MV-23195-L0-00 Rubber |
5MV-23195-L0-00 |
from US $16.86 |
||
|
16
|
16
5DH-23149-L0-00 Washer, Spring Upper |
5DH-23149-L0-00 |
from US $12.04 |
||
|
17
|
17
5DH-23118-L0-00 Spacer |
5DH-23118-L0-00 |
US $29.63 |
||
|
18
|
18
4SS-23158-L0-00 Gasket |
4SS-23158-L0-00 |
from US $5.10 |
||
|
19
|
19
5GR-23141-L0-00 Spring (K=4.51N/mm) |
5GR-23141-L0-00 |
US $105.01 |
||
|
20
|
20
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
21
|
21
5NG-23103-50-00 Front Fork Assy (R.h) |
5NG-23103-50-00 |
US $1,689.32 |
||
|
22
|
22
5HD-23136-L0-00 Tube, Outer 2 |
5HD-23136-L0-00 |
US $926.26 |
||
|
23
|
23
5BF-23110-L0-00 Inner Tube Comp. 1 |
5BF-23110-L0-00 |
from US $296.89 |
||
|
24
|
24
5ET-23171-L0-00 Piston, Front Fork |
5ET-23171-L0-00 |
from US $18.28 |
||
|
25
|
25
5ET-23125-L0-00 Metal, Slide 1INCL. IN FORK SEAL KIT |
5ET-23125-L0-00 |
from US $13.88 |
||
|
26
|
26
4SS-23146-L0-00 Washer, Oil Seal |
4SS-23146-L0-00 |
from US $9.78 |
||
|
27
|
27
5ET-23145-L0-00
Oil Seal
|
5ET-23145-L0-00 |
— | ||
| replacement | |||||
|
27
|
27
5UN-23145-L0-00 Oil Seal |
5UN-23145-L0-00 |
from US $22.20 |
||
|
27
|
27
5UN-23145-L0-00 Oil Seal |
5UN-23145-L0-00 |
from US $22.20 |
||
|
28
|
28
4SS-23153-L0-00 Ring, Snap |
4SS-23153-L0-00 |
from US $2.91 |
||
|
29
|
29
5HD-23144-L0-00 Seal, Dust |
5HD-23144-L0-00 |
from US $20.25 |
||
|
30
|
30
5NG-23170-50-00 Cylinder Comp., Front Fork |
5NG-23170-50-00 |
US $594.40 |
||
|
31
|
31
5NG-2316A-50-00 Valve Comp |
5NG-2316A-50-00 |
US $245.29 |
||
|
32
|
32
5NY-23111-L0-00 Bolt, Cap |
5NY-23111-L0-00 |
US $307.85 |
||
|
33
|
33
5DH-23142-L0-00 Seat, Spring Upper |
5DH-23142-L0-00 |
from US $26.07 |
||
|
34
|
34
5HD-23393-L0-00 Nut, Special |
5HD-23393-L0-00 |
from US $18.40 |
||
|
35
|
35
5MV-23195-L0-00 Rubber |
5MV-23195-L0-00 |
from US $16.86 |
||
|
36
|
36
5DH-23149-L0-00 Washer, Spring Upper |
5DH-23149-L0-00 |
from US $12.04 |
||
|
37
|
37
5DH-23118-L0-00 Spacer |
5DH-23118-L0-00 |
US $29.63 |
||
|
38
|
38
4SS-23158-L0-00 Gasket |
4SS-23158-L0-00 |
from US $5.10 |
||
|
39
|
39
5GR-23141-L0-00 Spring (K=4.51N/mm) |
5GR-23141-L0-00 |
US $105.01 |
||
|
40
|
40
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
41
|
41
5NX-23340-L0-00 Under Bracket Comp |
5NX-23340-L0-00 |
US $593.51 |
||
|
42
|
42
5NY-23346-L0-00 Bolt 1 |
5NY-23346-L0-00 |
from US $2.69 |
||
|
43
|
43
4SS-2314G-L0-00 Protecter Guide Comp., 2 |
4SS-2314G-L0-00 |
from US $37.45 |
||
|
44
|
44
5DH-2314F-L0-00 Protecter Guide Comp., 1 |
5DH-2314F-L0-00 |
from US $37.45 |
||
|
45
|
45
4SS-23346-L0-00 Bolt 1 |
4SS-23346-L0-00 |
from US $3.12 |
||
|
46
|
46
5BF-2314J-00-00
Protecter Comp., 2
|
5BF-2314J-00-00 |
— | ||
|
47
|
47
5DH-2314H-00-00 Protecter Comp., 1 |
5DH-2314H-00-00 |
from US $32.87 |
||
|
48
|
48
3SP-23356-L0-00 Bolt 2 |
3SP-23356-L0-00 |
from US $2.91 |
||
|
49
|
49
5HC-2331E-00-00 Guide, Cable |
5HC-2331E-00-00 |
US $7.60 |
||
|
50
|
50
4XL-2153A-10-00
Emblem, Yamaha
|
4XL-2153A-10-00 |
— | ||
| replacement | |||||
|
50
|
50
4XL-2153A-11-00 Emblem, Yamaha |
4XL-2153A-11-00 |
from US $11.16 |
||
|
51
|
51
4XL-2153A-10-00
Emblem, Yamaha
|
4XL-2153A-10-00 |
— | ||
| replacement | |||||
|
51
|
51
4XL-2153A-11-00 Emblem, Yamaha |
4XL-2153A-11-00 |
from US $11.16 |
||
|
52
|
52
5ET-W003B-00-00 Fork Seal Kit |
5ET-W003B-00-00 |
from US $113.92 |
||
