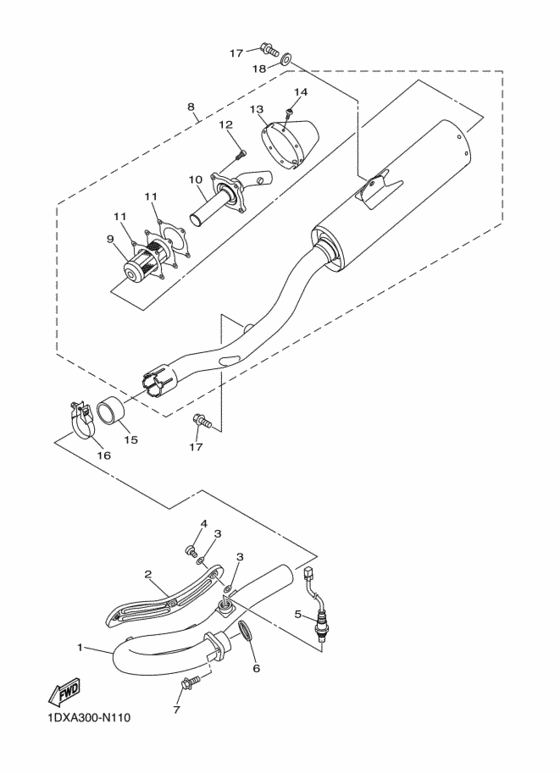

Exhaust Diagram Yamaha WR450F
- Year
- 2014
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 1DXA
- Sales region
- Europe (020)
- Engine Capacity
- 450
- Color Variant
- A
- Model
- WR450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DX-14611-00-00 Pipe, Exhaust 1 |
1DX-14611-00-00 |
US $323.29 |
||
|
2
|
2
18P-14628-00-00 Protector, Exhaust Pipe |
18P-14628-00-00 |
from US $18.42 |
||
|
3
|
3
90201-05017-00 Washer, Plate |
90201-05017-00 |
from US $2.24 |
||
|
4
|
4
98980-06008-00 Screw, Bind |
98980-06008-00 |
from US $1.42 |
||
|
5
|
5
3HT-8592A-00-00 Sensor, Oxygen |
3HT-8592A-00-00 |
from US $233.49 |
||
|
6
|
6
3VD-14613-01-00 Gasket, Exhaust Pipe |
3VD-14613-01-00 |
from US $5.06 |
||
|
7
|
7
90105-08142-00 Bolt, Flange |
90105-08142-00 |
from US $1.66 |
||
|
8
|
8
1DX-14710-00-00 Muffler Assy 1 |
1DX-14710-00-00 |
US $972.84 |
||
|
9
|
9
5TJ-14780-00-00 Spark Arrester Assy |
5TJ-14780-00-00 |
from US $72.40 |
||
|
10
|
10
5TJ-14784-00-00 Pipe, Tail |
5TJ-14784-00-00 |
from US $112.19 |
||
|
11
|
11
5TJ-14623-00-00 Gasket, Exhaust Pipe |
5TJ-14623-00-00 |
from US $10.06 |
||
|
12
|
12
90110-05041-00 Bolt, Hexagon Socket Head |
90110-05041-00 |
from US $1.98 |
||
|
13
|
13
5TJ-14799-00-00 Cap |
5TJ-14799-00-00 |
from US $86.19 |
||
|
14
|
14
92012-05008-00 Bolt, Button Head |
92012-05008-00 |
from US $1.56 |
||
|
15
|
15
5PH-14714-00-00 Gasket, Muffler |
5PH-14714-00-00 |
from US $32.87 |
||
|
16
|
16
5BE-14788-00-00 Band, Silencer |
5BE-14788-00-00 |
from US $16.86 |
||
|
17
|
17
90105-08307-00 Bolt, Flange |
90105-08307-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
95814-08020-00 Bolt, Flange(4Hm) |
95814-08020-00 |
from US $1.56 |
||
|
18
|
18
90201-08048-00 Washer, Plate |
90201-08048-00 |
from US $2.08 |
||
