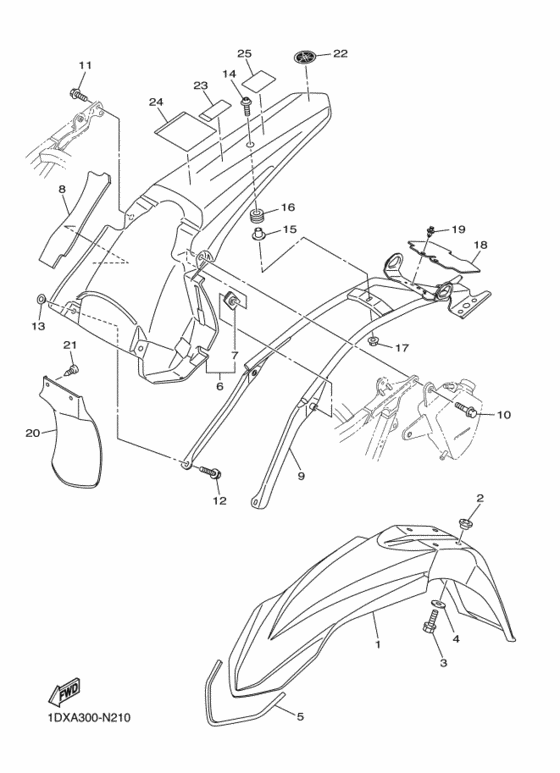

Fender Diagram Yamaha WR450F
- Year
- 2014
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 1DXA
- Sales region
- Europe (020)
- Engine Capacity
- 450
- Color Variant
- A
- Model
- WR450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17D-21511-50-00 Fender, Front |
17D-21511-50-00 |
from US $41.89 |
||
|
2
|
2
903-87062-59-00 Collar |
903-87062-59-00 |
from US $4.11 |
||
|
3
|
3
901-05061-97-00 Bolt, Flange |
901-05061-97-00 |
from US $2.27 |
||
|
4
|
4
902-01061-08-00 Washer, Plate |
902-01061-08-00 |
from US $1.98 |
||
|
5
|
5
1DX-21529-00-00 Mold, Fender |
1DX-21529-00-00 |
US $6.09 |
||
|
6
|
6
1DX-21610-60-00 Rear Fender Comp |
1DX-21610-60-00 |
US $106.38 |
||
|
7
|
7
1DX-21626-00-00 Collar, Rear Fender |
1DX-21626-00-00 |
US $13.46 |
||
|
8
|
8
1DX-2174T-00-00 Insulator, Side Cover 2 |
1DX-2174T-00-00 |
US $11.62 |
||
|
9
|
9
1DX-21640-00-00 Rear Stay Comp |
1DX-21640-00-00 |
US $221.06 |
||
|
10
|
10
901-05061-97-00 Bolt, Flange |
901-05061-97-00 |
from US $2.27 |
||
|
11
|
11
90105-06142-00 Bolt, Flange |
90105-06142-00 |
from US $1.42 |
||
|
12
|
12
90105-06106-00 Bolt, Flange |
90105-06106-00 |
from US $1.84 |
||
|
13
|
13
90387-06009-00 Collar |
90387-06009-00 |
from US $7.37 |
||
|
14
|
14
901-11061-30-00 Bolt, Hex.socket Button |
901-11061-30-00 |
from US $3.26 |
||
|
15
|
15
90387-067K8-00 Collar |
90387-067K8-00 |
from US $2.91 |
||
|
16
|
16
90480-14329-00 Grommet |
90480-14329-00 |
from US $1.94 |
||
|
17
|
17
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
18
|
18
1DX-21621-00-00 Flap |
1DX-21621-00-00 |
US $11.76 |
||
|
19
|
19
90269-08005-00 Rivet |
90269-08005-00 |
from US $1.70 |
||
|
20
|
20
3D7-21642-00-00 Guard, Flap |
3D7-21642-00-00 |
from US $27.77 |
||
|
21
|
21
97702-60016-00 Screw, Tapping |
97702-60016-00 |
from US $1.56 |
||
|
22
|
22
3C5-2411B-20-00 Emblem |
3C5-2411B-20-00 |
from US $6.80 |
||
|
23
|
23
1CB-2816R-00-00 Label, Warning General Info |
1CB-2816R-00-00 |
US $7.37 |
||
|
24
|
24
1DX-2816T-00-00 Label, Warning On Road UseON ROAD USE |
1DX-2816T-00-00 |
US $10.06 |
||
|
25
|
25
5PW-2415E-01-00 Label, Caution |
5PW-2415E-01-00 |
from US $2.55 |
||
