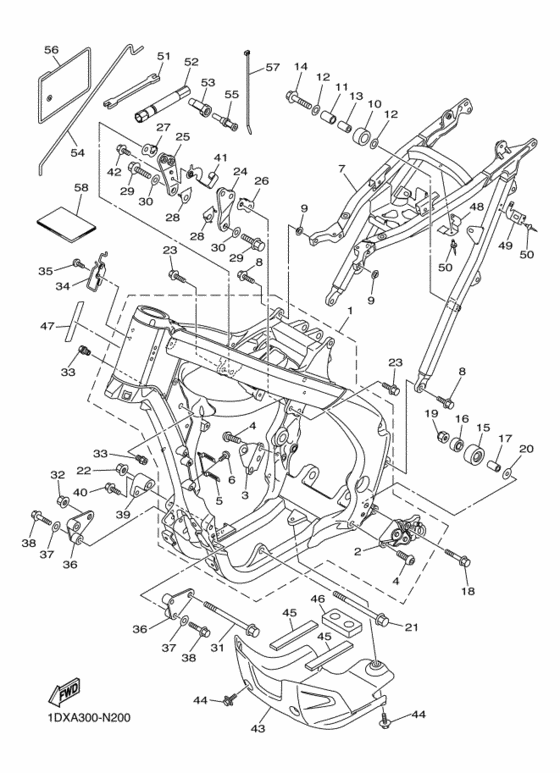

Frame Diagram Yamaha WR450F
- Year
- 2014
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 1DXA
- Sales region
- Europe (020)
- Engine Capacity
- 450
- Color Variant
- A
- Model
- WR450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DX-21101-00-00 Front Frame Comp |
1DX-21101-00-00 |
from US $3,537.60 |
||
|
2
|
2
1DX-21447-00-00 Bracket, Footrest |
1DX-21447-00-00 |
from US $207.24 |
||
|
3
|
3
17D-21448-00-00 Bracket, Footrest |
17D-21448-00-00 |
from US $30.60 |
||
|
4
|
4
90149-10031-00 Screw |
90149-10031-00 |
from US $1.98 |
||
| replacement | |||||
|
4
|
4
901-49100-33-00 Screw |
901-49100-33-00 |
from US $1.98 |
||
|
5
|
5
17D-21335-50-00 Clamp, Wire Harness 1 |
17D-21335-50-00 |
US $9.21 |
||
|
6
|
6
92012-05008-00 Bolt, Button Head |
92012-05008-00 |
from US $1.56 |
||
|
7
|
7
1DX-21190-00-00 Rear Frame Comp |
1DX-21190-00-00 |
from US $723.36 |
||
|
8
|
8
901-05082-24-00 Bolt, Flange |
901-05082-24-00 |
from US $2.13 |
||
|
9
|
9
903-87080-96-00 Collar |
903-87080-96-00 |
from US $1.56 |
||
|
10
|
10
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $10.10 |
||
|
11
|
11
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.60 |
||
|
12
|
12
90201-08045-00 Washer, Plate |
90201-08045-00 |
from US $2.77 |
||
|
13
|
13
90387-08041-00 Collar |
90387-08041-00 |
from US $2.77 |
||
|
14
|
14
950-22080-40-00
Bolt, Flange (Small Head)
|
950-22080-40-00 |
— | ||
| replacement | |||||
|
14
|
14
95024-08040-00 Bolt, Flange |
95024-08040-00 |
from US $1.52 |
||
|
15
|
15
3JD-22178-20-00 Tensioner |
3JD-22178-20-00 |
from US $22.33 |
||
|
16
|
16
93300-60839-00 Bearing |
93300-60839-00 |
from US $17.99 |
||
|
17
|
17
90387-086N4-00 Collar |
90387-086N4-00 |
from US $1.66 |
||
|
18
|
18
90105-08133-00 Bolt, Flange |
90105-08133-00 |
from US $1.70 |
||
|
19
|
19
90185-08009-00 Nut, Self-Locking |
90185-08009-00 |
US $0.85 |
||
| replacement | |||||
|
19
|
19
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
20
|
20
90201-08043-00 Washer, Plate |
90201-08043-00 |
from US $1.70 |
||
|
21
|
21
90105-10214-00 Bolt, Flange |
90105-10214-00 |
from US $9.35 |
||
|
22
|
22
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
22
|
22
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
23
|
23
901-05082-26-00 Bolt, Flange |
901-05082-26-00 |
from US $1.56 |
||
|
24
|
24
1DX-21425-00-00 Bracket, Rear Upper 1 |
1DX-21425-00-00 |
from US $33.58 |
||
|
25
|
25
1DX-21426-00-00 Bracket, Rear Upper 2 |
1DX-21426-00-00 |
from US $32.44 |
||
|
26
|
26
1DX-21515-00-00 Washer, Special |
1DX-21515-00-00 |
from US $6.38 |
||
|
27
|
27
1DX-21516-00-00 Washer, Special 2 |
1DX-21516-00-00 |
from US $5.38 |
||
|
28
|
28
1DX-21615-00-00 Washer, Special 1 |
1DX-21615-00-00 |
from US $15.16 |
||
|
29
|
29
95812-10025-00 Bolt, Flange |
95812-10025-00 |
US $1.28 |
||
| replacement | |||||
|
29
|
29
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
30
|
30
90201-10033-00 Washer, Plate |
90201-10033-00 |
from US $3.33 |
||
|
31
|
31
901-05104-08-00 Bolt, Flange |
901-05104-08-00 |
from US $7.23 |
||
|
32
|
32
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
32
|
32
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
33
|
33
17D-21244-10-00 Nut |
17D-21244-10-00 |
from US $14.17 |
||
| replacement | |||||
|
33
|
33
17D-21244-20-00 Nut |
17D-21244-20-00 |
from US $10.72 |
||
|
34
|
34
1DX-21163-00-00 Holder, Clutch Cable |
1DX-21163-00-00 |
from US $15.44 |
||
|
35
|
35
92012-06010-00 Bolt, Button Head |
92012-06010-00 |
from US $1.66 |
||
|
36
|
36
1DX-21417-00-00 Bracket, Front Lower 1 |
1DX-21417-00-00 |
from US $16.15 |
||
|
37
|
37
92902-08200-00 Washer |
92902-08200-00 |
from US $0.32 |
||
| replacement | |||||
|
37
|
37
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
38
|
38
901-05082-29-00 Bolt, Flange |
901-05082-29-00 |
from US $1.70 |
||
|
39
|
39
1DX-21428-00-00 Bracket, Rear Lower 2 |
1DX-21428-00-00 |
from US $43.52 |
||
|
40
|
40
90105-08142-00 Bolt, Flange |
90105-08142-00 |
from US $1.66 |
||
|
41
|
41
1DX-21161-00-00 Holder, Cable |
1DX-21161-00-00 |
from US $8.93 |
||
|
42
|
42
90105-06128-00 Bolt, Flange |
90105-06128-00 |
from US $1.70 |
||
|
43
|
43
1DX-2147A-00-00
Guard, Engine 1
|
1DX-2147A-00-00 |
— | ||
| replacement | |||||
|
43
|
43
1DX-2147A-01-00 Guard, Engine 1 |
1DX-2147A-01-00 |
from US $41.05 |
||
|
44
|
44
90119-06146-00 Bolt, With Washer |
90119-06146-00 |
from US $2.13 |
||
|
45
|
45
905-20020-08-00 Damper, Plate |
905-20020-08-00 |
from US $1.70 |
||
|
46
|
46
1DX-21485-00-00 Damper, Rubber 1 |
1DX-21485-00-00 |
from US $14.17 |
||
| replacement | |||||
|
46
|
46
1DX-21485-01-00 Damper, Rubber 1 |
1DX-21485-01-00 |
from US $14.17 |
||
|
47
|
47
5UM-21268-E0-00 Seal |
5UM-21268-E0-00 |
from US $9.21 |
||
|
48
|
48
1DX-2116A-00-00 Stay 1 |
1DX-2116A-00-00 |
from US $5.24 |
||
|
49
|
49
1DX-2116E-00-00 Cover 2 |
1DX-2116E-00-00 |
from US $4.39 |
||
|
50
|
50
90267-32146-00 Rivet, Blind |
90267-32146-00 |
from US $2.55 |
||
|
51
|
51
5ET-28166-10-00 Wrench, Hexagon |
5ET-28166-10-00 |
from US $18.42 |
||
|
52
|
52
5SL-2814F-00-00 Box, Spark Plug |
5SL-2814F-00-00 |
from US $8.50 |
||
|
53
|
53
18P-2467E-00-00 Cap |
18P-2467E-00-00 |
from US $2.13 |
||
|
54
|
54
18P-2464V-00-00 Case, Cap |
18P-2464V-00-00 |
from US $4.96 |
||
|
55
|
55
1DX-2814H-00-00 Hook 1 |
1DX-2814H-00-00 |
from US $13.88 |
||
|
56
|
56
4K5-28186-00-00 Pouch |
4K5-28186-00-00 |
from US $13.88 |
||
|
57
|
57
90464-76001-00 Clamp |
90464-76001-00 |
from US $3.83 |
||
|
58
|
58
1DX-28199-E2-00
Manual,owner's
|
1DX-28199-E2-00 |
— | ||
