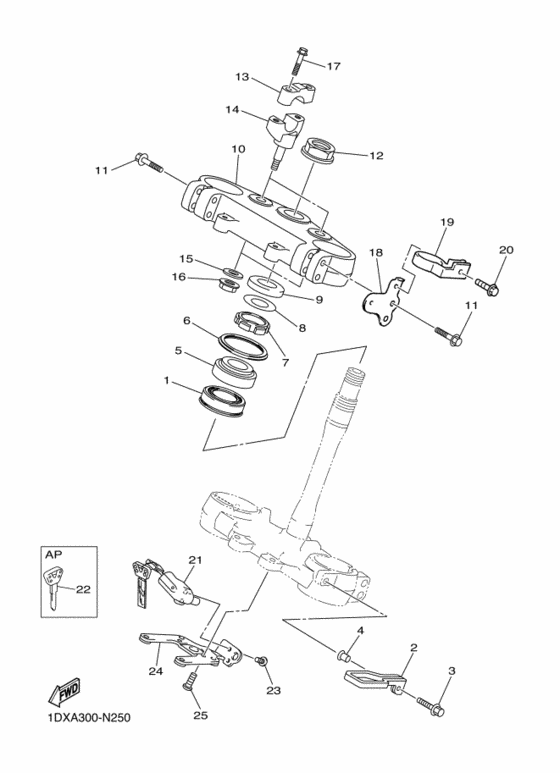

Steering Diagram Yamaha WR450F
- Year
- 2014
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 1DXA
- Sales region
- Europe (020)
- Engine Capacity
- 450
- Color Variant
- A
- Model
- WR450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93332-00081-00 Bearing |
93332-00081-00 |
from US $50.98 |
||
|
2
|
2
5TJ-23389-80-00 Guide, Cable |
5TJ-23389-80-00 |
from US $6.11 |
||
|
3
|
3
90105-06107-00 Bolt, Flange |
90105-06107-00 |
from US $1.81 |
||
|
4
|
4
90387-06104-00 Collar |
90387-06104-00 |
from US $1.48 |
||
|
5
|
5
93332-00068-00 Bearing |
93332-00068-00 |
from US $50.98 |
||
| replacement | |||||
|
5
|
5
93332-00078-00 Bearing(4Ew) |
93332-00078-00 |
from US $50.98 |
||
|
6
|
6
17D-23416-50-00 Cover, Ball Race 2 |
17D-23416-50-00 |
from US $12.61 |
||
|
7
|
7
901-79280-15-00 Nut |
901-79280-15-00 |
from US $11.33 |
||
|
8
|
8
90201-286K9-00 Washer, Plate (T1.0) |
90201-286K9-00 |
from US $1.98 |
||
|
9
|
9
5UM-23113-E0-00 Collar |
5UM-23113-E0-00 |
from US $19.55 |
||
|
10
|
10
1DX-23435-00-00 Crown, Handle |
1DX-23435-00-00 |
from US $171.32 |
||
|
11
|
11
90105-08134-00 Bolt, Flange |
90105-08134-00 |
from US $1.98 |
||
|
12
|
12
901-79240-04-00 Nut |
901-79240-04-00 |
from US $12.91 |
||
|
13
|
13
18P-23441-00-00 Holder, Handle Upper |
18P-23441-00-00 |
from US $22.24 |
||
|
14
|
14
17D-23442-10-00 Holder, Handle Lower |
17D-23442-10-00 |
from US $108.73 |
||
|
15
|
15
92902-10200-00 Washer, Plain |
92902-10200-00 |
US $1.18 |
||
| replacement | |||||
|
15
|
15
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
16
|
16
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.81 |
||
|
17
|
17
90105-08154-00 Bolt, Flange |
90105-08154-00 |
from US $1.81 |
||
|
18
|
18
5UM-2831V-E0-00 Stay, Head Light 1 |
5UM-2831V-E0-00 |
from US $7.79 |
||
|
19
|
19
5TJ-2331E-80-00 Guide, Cable |
5TJ-2331E-80-00 |
from US $4.68 |
||
|
20
|
20
90105-05016-00 Bolt, Flange |
90105-05016-00 |
from US $1.70 |
||
|
21
|
21
1DX-28470-00-00 Lock Assy |
1DX-28470-00-00 |
US $57.61 |
||
|
22
|
22
4BH-82511-09-00 Blank KeyAP |
4BH-82511-09-00 |
from US $12.35 |
||
|
23
|
23
901-49050-36-00 Screw |
901-49050-36-00 |
US $1.56 |
||
| replacement | |||||
|
23
|
23
90149-05035-00 Screw |
90149-05035-00 |
US $1.03 |
||
|
24
|
24
1DX-23326-00-00 Holder, Steering Lock |
1DX-23326-00-00 |
US $39.24 |
||
|
25
|
25
90149-06135-00 Screw |
90149-06135-00 |
from US $1.42 |
||
