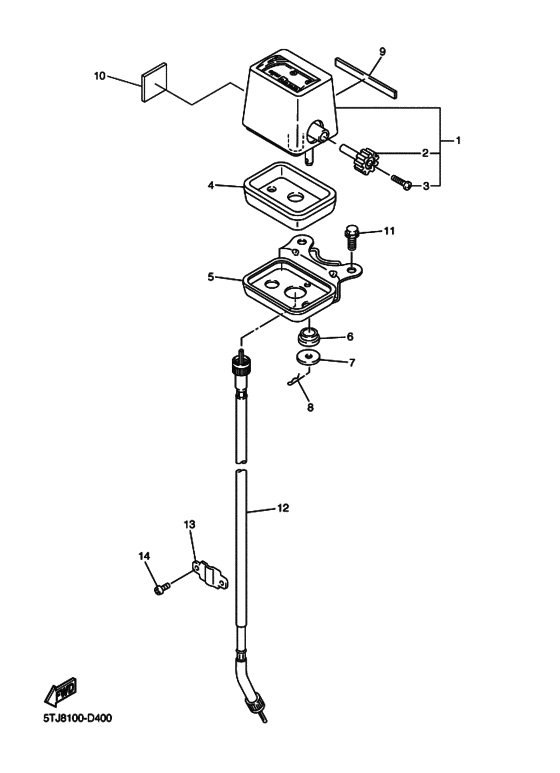

Meter Diagram Yamaha WR450F
- Year
- 2005
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5TJA
- Sales region
- Europe (020)
- Engine Capacity
- 450
- Color Variant
- A
- Model
- WR450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5TJ-8355W-00-00 Trip Meter Comp. (Km/h) |
5TJ-8355W-00-00 |
US $151.98 |
||
|
2
|
2
1AE-83578-00-00 Knob, Trip Meter |
1AE-83578-00-00 |
from US $12.89 |
||
|
3
|
3
90157-02031-00 Screw, Pan Head |
90157-02031-00 |
from US $1.65 |
||
|
4
|
4
4V5-83513-00-00 Damper |
4V5-83513-00-00 |
from US $13.60 |
||
|
5
|
5
5NG-83519-00-00 Bracket, Meter |
5NG-83519-00-00 |
from US $50.49 |
||
|
6
|
6
1M1-83526-00-00
Damper 2
|
1M1-83526-00-00 |
— | ||
| replacement | |||||
|
6
|
6
1M1-83526-01-00 Damper 2 |
1M1-83526-01-00 |
from US $5.72 |
||
|
7
|
7
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.39 |
||
|
8
|
8
437-83525-00-00 Clip |
437-83525-00-00 |
US $1.84 |
||
| replacement | |||||
|
8
|
8
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
9
|
9
2HR-83592-00-00 Damper |
2HR-83592-00-00 |
US $8.69 |
||
|
10
|
10
5TJ-83513-80-00 Damper |
5TJ-83513-80-00 |
from US $1.31 |
||
|
11
|
11
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
12
|
12
5BF-83550-00-00 Speedometer Cable Assy |
5BF-83550-00-00 |
from US $38.41 |
||
|
13
|
13
5BF-2317M-00-00 Stay 3 |
5BF-2317M-00-00 |
US $4.26 |
||
|
14
|
14
92017-05008-00 Bolt, Button Head |
92017-05008-00 |
from US $0.47 |
||
